CW-400 A1

eXtreme Power Wave2 4x 11N/ac 2.4/5Ghz 2×2 Ceiling / Wall PoE Access Point

Cerio CW-400 A1 eXtreme Power Wave2 4x 11N/ac 2.4/5Ghz 2×2 Ceiling / Wall PoE Access Point is an AC1300 Wireless concurrent dual band WiFi device.CW-400 A1 bundles Cerio CenOS 5.0 Software Core with Built-in CAP (controller-less AP) mode. The CAP mode can centralize management of up to 64 units of APs. Paired with CenOS 5.0 software, the CW-400 A1 also supports two additional operate modes, Authentication Access Point Mode (AAP Mode with built-in 802.1x RADIUS Server) and WISP Repeater Mode (to extend the coverage of an existing network). This device is perfect for enterprise deployment such as corporate offices, public venues, conferences, and other high traffic indoor environments.

The CW-400 A1 Ceiling / Wall PoE Access Point Built-indual band 2×2 3dBi Omni Antennas. The antenna diversity design enhances the connection reliability to improve data transmission capability. It supports safe ceiling, wall and T-Bar Rail mounting through its mounting bracket lock design. Users must use a thin tool to properly remove the device from its installation location, which ultimately reduces device theft as well as damage. CW-400 A1’s 11ac chipset design provides enterprise grade CPU performance, allowing the device to handle up to 200 concurrent clients. This 11ac dual-band AP hardware also includes 802.3af/at PoE capabilities that allows power and data to be supplied to the unit using CAT5 Ethernet cable.
CW-400 A1 supports fast wireless roaming 802.11r/k protocol for seamless roaming and smart client handoff.

Highlight Feature

2.4Ghz band supports standard 802.11 bgnprotocol with maximum data transfer rate of 400Mbps.
• 5Ghz band supports 802.11 an/ac wireless protocol with a maximum data transfer rate of 867Mbps.
• Support 2 10/100/1000Mbps Gigabit Ethernet Ports and 1 RJ45 Console Management Port.
• Built-in dual band 2×2 3dBi Omni Antennas. The antenna diversity design enhances the connection reliability to improve data transmission capability.
• Supports CenOS 5.0 Software Core.
Operation Modes : Access Point Mode (includes Hotspot Portal Authentication, Pure AP Mode, and AP + WDS Mode), Controller-less Access Point (CAP)Mode, Client Bridge + Repeater Mode, and WISP /CPE Repeater Mode, Router AP Mode.
• IEEE 802.3af/at Power over Ethernet support that allows power and data to be supplied to the unit using CAT5 Ethernet cable.
• Built in 802.1x RADIUS authentication server and supports up to 50 User Accounts.
• Provide customizable login and logout Captive portal page by Web Page.
• Captive Portal function default built-in Facebook and Google authentication of Third-party OAuth2.0.
• CenOS 5.0 Control Access Point Mode (CAP) supports centralized management of up to 64 AP devices.
• With AP Mode supports at total of 32 Multiple- ESSIDs per device (16 ESSID on 2.4Ghz and 16 ESSID on 5Ghz).
• With AP mode supports x8 WDS per Radio (2.4Ghz band WDS x8 and 5Ghz band WDSx8 ) for a total of 16 WDS Links.

Software Features

• Supports built-in 802.1x RADIUS authentication server account database for small and medium environments, removing the need to set up external server and avoiding additional costs. Also supports RADIUS Server authentication server account features to fit the needs of large-scale network environments.

• Built-in Time Policy function can set multiple times schedule apply to RF on/off and IP/MAC filter or other security function.
• Captive Portal Authentication supports by remote RADIUS server, Local account, third-party OAuth2.0, LDAP (AD), POP3, Guest and remote bulk MAC Address.
• CAP Mode Group management –maintain a set of setting templates that simplify the task of assigning the same setting to multiple APs.
• Each SSID supports 802.1q VLAN Tag standards, support setting 1~ 4096 VLAN Tagging capability.
• With AP mode supports WPA-PSK/TKIP,WPA-802.1x /TKIP, 802.11i WPA2-PSK/CCMP/AES,WPA2 (802.1x/CCMP / AES), No. of registered RADIUS servers: 1.
• QoS(Quality of Service) for bandwidth management and traffic prioritization and supports network.
• Users Upload/Download Bandwidth Control speed limits, and User Device (Total) bandwidth control. Administrators can regulate the 3limit of each network user.
• Supports IEEE802.11f IAPP and IEEE802.11r and IEEE802.11k Fast Roaming.
• Supports Band steering technology which detects dual-band capable clients, and directs these clients to the less saturated 5GHz network.
• Support Ping Watchdog function, which automatically monitoring device operations and reboots the device before a crash can occur.
• Software Web UI supports auto reboot settingfunction. Software setting allows automatically reboot by Daily/Weekly/Monthly settings.
• Supports intelligent auto channel scanning function,automatic scanning the most undisturbed and suitable wireless channel in the field environment, which is convenient and time-saving.
• Administrative Access : Supports Telnet and SSH.
• Provides Traffic Monitor and Graphical GUI Status Interface for Network and Radio Overview.

Hardware Features

• 2.4Ghz Data Rate of up to 400Mbps(Tx), 400Mbps(Rx) link rate.
• 5Ghz Data Rate of up to 867Mbps for 80MHz channel bandwidth.
• Support 2 10/100/1000Mbps Gigabit Ethernet Ports and 1 RJ45 Console Management Port.
• Supports IEEE 802.3af/at Power over Ethernet (PoE) that allows power and data to be supplied to the unit using CAT5 Ethernet cable.
• Built-in dual band 2×2 3dBi Omni Antennas. The antenna diversity design enhances the connection reliability to improve data transmission capability.
• Supports hardware reset button.
• Except for reset button function, it also bundles RJ45 Function Kit, which is able to reset the device to default remotely. It can save extra re-installation cost and time.
• Easy to install Ceiling / Walling / T-Bar Rail mounting using a Mounting Bracket form factor.
• Supports hardware RF on/off base on your needs to turn on or turn off , easy to use.

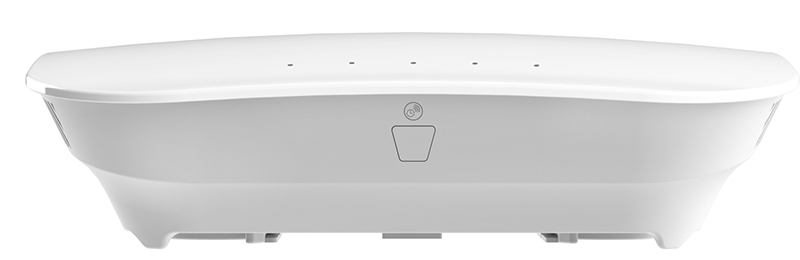

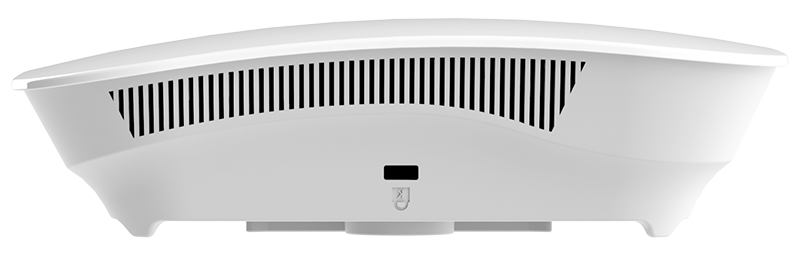

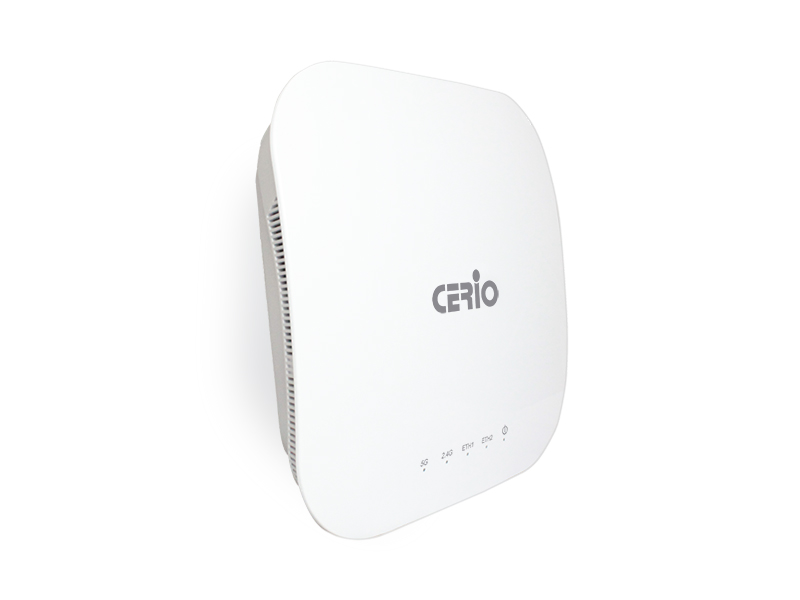

Hardware Overview


Mounting Installation

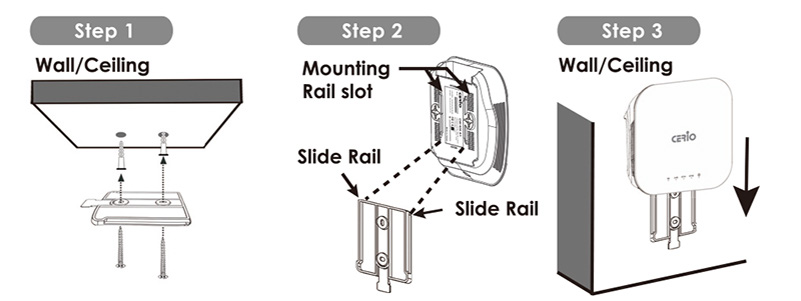

Ceiling & Wall Mounting

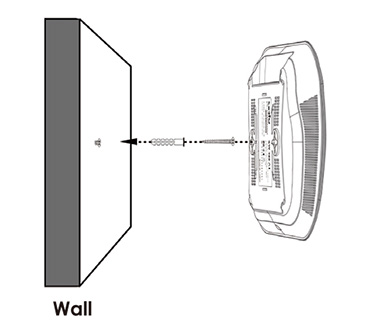

Wall Mounting

T-Bar Mounting


Application Software Cerio CenOS 5.0 Software Core
Standards & Hardware Specifications
Network Standards Conformance IEEE 802.11 b/g/n/a/ac compliant
IEEE 802.3 / IEEE 802.3u
IEEE 802.3af/at Power Over Ethernet compliant
IEEE 802.11r Fast Roaming
IEEE 802.11e WMM

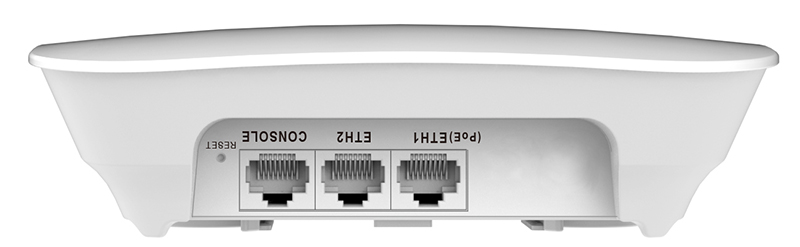

Ethernet Configuration RJ45 10/100/1000M Ethernet Port x2
(ETH1: Power over Ethernet PoE in )
RJ45 Console Port x1
Reset Button Reset to default

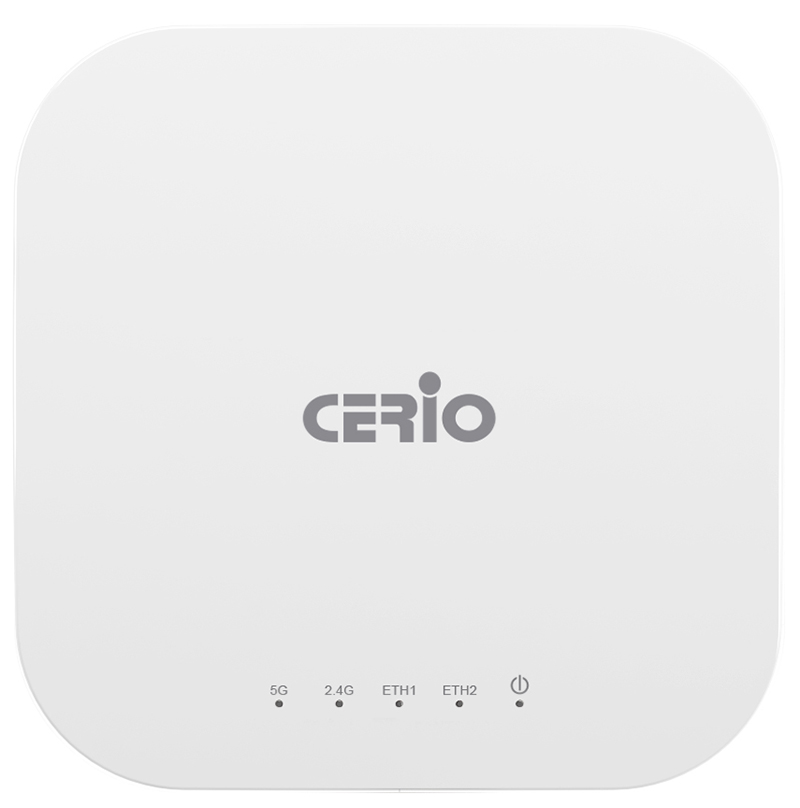

LED Indicators PWR (Power) ——–x1
ETH1 (PoE In) ——x1
ETH2————– x1
2.4G Signal ——-x1
5G Signal———x1
Wireless Specifications
Data Transfer Rate IEEE802.11b : 1 / 2 / 5.5 / 11Mbps (auto sensing)
IEEE801.11g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54Mbps
IEEE802.11n : 400Mbps (@ 40MHz 256QAM)
IEEE802.11ac : 867Mbps(@ 80MHz 256QAM)
Frequency Range IEEE802.11nbg :
2.412 ~ 2.472 GHz
IEEE802.11a/an/11ac :
5.180 – 5.240 & 5.725 – 5.825 GHz
Channel Spacing IEEE802.11b/g/n : 20/40MHz
IEEE802.11ac: 20/40/80MHz
Media Access Protocol CSMA / CA with ACK
Modulation Method IEEE802.11b : DSSS (DBPK,DQPSK,CCK)
IEEE802.11a/g/n : OFDM(64-QAM,16-QAM,QPSK,BPSK)
IEEE802.11n : OFDM (256-QAM, 64,-QAM, 16-QAM,QPSK,BPSK)
IEEE802.11ac : OFDM (256-QAM, 64,-QAM, 16-QAM,QPSK,BPSK)
Operating Channels 2.4GHz : 1-13
5GHz : 36-64, 100-140, 149-165 (Depends on configured regulatory domain)
Transmit Power Variation 2.4Ghz : Max : 22 ± 1 dBm
5Ghz : Max : 20 ± 1 dBm
Receiver Sensitivity 2.4Ghz : Max : -96 dBm
5Ghz : Max : -92 dBm

Environmental & Mechanical Characteristics

Operating Temperature -0 °C ~ 45 °C
Storage Temperature -40 °C ~ 70°C
Operating Humidity 10% – 95% Non-Condensing
Storage Humidity 10% – 95% Non-Condensing
Antenna Built-in dual band 2×2 3dBi Omni Antennas

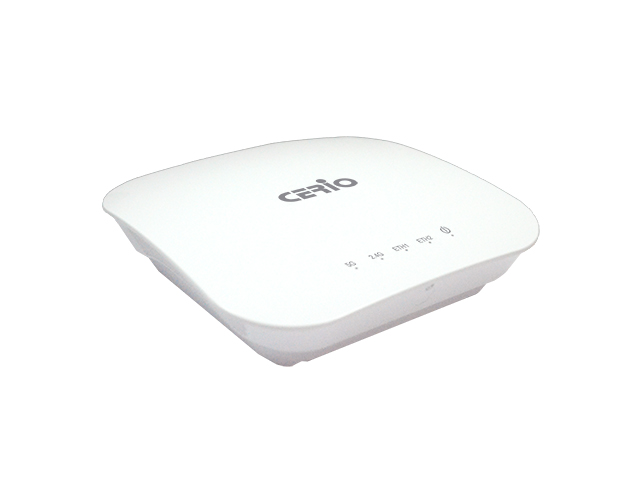

Form Factor Desktop , Ceiling , Wall and T-Bar Rail Mounting
ESD Conductive: 4KV
Air: 8KV
System Power Consumption 8Watt (Max)
Power Supply Supports Power Over Ethernet (PoE 48~57V voltage)
Input Power IEEE 802.3af/at 48V~57V PoE In
Dimensions ( W x H x D ) 162 x 162 x 42 mm
Unit Weight 0.267kg
Case of Material ABS
Production Location TW only
Certifications FCC,CE, NCC, ROHS compliant


Package Contents


CW-400A1 Main Unit x1
PoE power supply kit x1
Wall/Ceiling/T-Bar Rail Mounting Bracket x1
RJ45 Function Kit x1
Warranty Card x1
Quick Installation Service Card x1
