CW-400NAC A2

eXtreme Power AC1200 2.4GHz / 5GHz 2×2 Ceiling / Wall PoE Access Point ( 800mW )

The CW-400NAC A2 eXtreme Power AC1200 2.4GHz / 5GHz 2×2 Ceiling / Wall PoE Access Point is an AC1200 Wireless concurrent dual band wifi device. CW-400NAC A2 bundles Cerio CenOS 5.0 Software Core with Built-in CAP (controller-less AP) mode. The CAP mode can centralize management of up to 128 units of CW-400NAC A2 AP. Paired with our new CenOS 5.0 software, CW-400NAC A2 also supports two additional operate modes, Authentication Access Point Mode (AAP Mode with built-in 802.1x RADIUS Server) and WISP Repeater Mode (to extend the coverage of an existing network). This device is perfect for enterprise deployment such as corporate offices, public venues, conferences, and other high traffic indoor environments.

Cerio CW-400NAC A2 eXtreme Power AC1200 2.4GHz / 5GHz 2×2 Ceiling / Wall PoE Access Point is an AC1200 Wireless concurrent dual band WiFi device. CW-400NAC A2 bundles Cerio CenOS 5.0 Software Core with Built-in CAP (controller-less AP) mode. The CAP mode can centralize management of up to 128 units of APs. Paired with our new CenOS 5.0 software, CW-400NAC A2 also supports two additional operate modes, Authentication Access Point Mode (AAP Mode with built-in 802.1x RADIUS Server) and WISP Repeater Mode (to extend the coverage of an existing network). This device is perfect for enterprise deployment such as corporate offices, public venues, conferences, and other high traffic indoor environments.

The CW-400NAC A2 Ceiling / Wall PoE Access Point hardware utilizes 800mW (2.4GHZ) / 500mW (5GHZ) eXtreme power and 4 Omni directional antennas (2 x 2.4GHz & 2 x 5GHz ). It supports safe ceiling and wall mounting through its mounting bracket lock design. Users must use a thin tool to properly remove the device from its installation location, which ultimately reduces device theft as well as damage. CW-400NAC A2’s 11ac chipset design provides enterprise grade CPU performance, allowing the device to handle up to 100 concurrent clients. This 11ac dual-band AP hardware also includes 802.3af PoE capabilities that allows power and data to be supplied to the unit using CAT5 Ethernet cable. CW-400NAC A2 many advanced software features, including our Cerio PoE Bridge function, which allows the device to provide PoE power to subsequent devices such as IP Cams. CW-400NAC A2 supports fast wireless roaming 802.11r/k protocol for seamless roaming and smart client handoff.

Highlight Features

  • 2.4Ghz band supports standard 802.11 bgn protocol with maximum data transfer rate of 300Mbps
  • 5Ghz band supports 802.11 an/ac wireless protocol with a maximum data transfer rate of 867Mbps
  • 800mW at 2.4Ghz and 500mW at 5Ghz Output eXtreme High Power design
  • 4 built-in (2x 2.4GHz & 2x 5GHz) Smart Omni Directional Antenna (IEEE 802.11ac/11nbg 2Tx / 2Rx Design)
  • Supports CenOS 5.0 Software (Click here for more)
  • Operation Modes : Access Point Mode (includes Hotspot Portal Authentication, Pure AP Mode, and AP + WDS Mode), Controller-less Access Point (CAP) Mode, Client Bridge + Repeater Mode, and WISP / CPE Repeater Mode, Router AP Mode (Built-in 16 802.1Q VLAN Routing.)
  • IEEE 802.3af/at Power over Ethernet (48V) support
  • Supports PoE Bridge function to allow power to be passed on to subsequent 802.3af/at PoE devices
  • Provide customizable login and logout Captive portal page by Web Page
  • Each Virtual ESSID supports 10 local built-in local accounts, And supports external RADIUS server, and
  • Captive Portal function default built-in Facebook and Google authentication of Third-party OAuth2.0.
  • CenOS 5.0 Control Access Point Mode (CAP) supports centralized management of up to 128 AP devices
  • Supports at total of 32 Multiple-ESSIDs per device (16 ESSID on 2.4Ghz and 16 ESSID on 5Ghz)
  • Supports x8 WDS per Radio (2.4Ghz band WDS x8 and 5Ghz band WDSx8 ) for a total of 16 WDS Links

Software Features

  • Supports built-in 802.1x RADIUS authentication server account database for small and medium environments, removing the need to set up external server and avoiding additional costs. Also supports RADIUS Server authentication server account features to fit the needs of large-scale network environments
  • Captive Portal Authentication supports by remote RADIUS server, Local account, third-party 0, LDAP (AD), POP3, Guest and remote bulk MAC Address.
  • CAP Mode Group management –maintain a set of setting templates that simplify the task of assigning the same setting to multiple APs
  • Each SSID supports 802.1q VLAN Tag standards, supporting up to 4096 group VLAN Tag capability
  • QoS(Quality of Service) for bandwidth management and traffic prioritization and supports network
  • Users Upload/Download Bandwidth Control speed limits, and User Device (Total) bandwidth control. Administrators can regulate the 3limit of each network user
  • Supports 11f IAPP and IEEE802.11r and IEEE802.11k Fast Roaming
  • Supports Band steering technology which detects dual-band capable clients, and directs these clients to the less saturated 5GHz network.
  • Support Ping Watchdog function, which automatically monitoring device operations and reboots the device before a crash can occur
  • Software UI supports Auto reboot setting function. Software setting allows automatically reboot by Daily/Weekly/Monthly settings
  • Supports CenOS5.0 built-in Control Access Point Mode (Controller-less Wireless LAN) and compatible management platforms
  • Administrative Access : Supports CLI access via Telnet and SSH
  • Provides Traffic Monitor and Graphical GUI Status Interface for Network and Radio Overview.

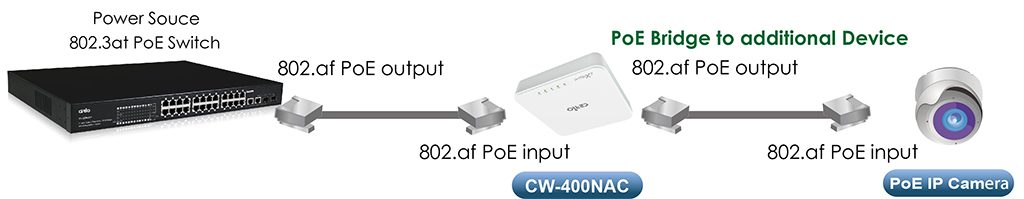

Power over Ethernet Bridge Application

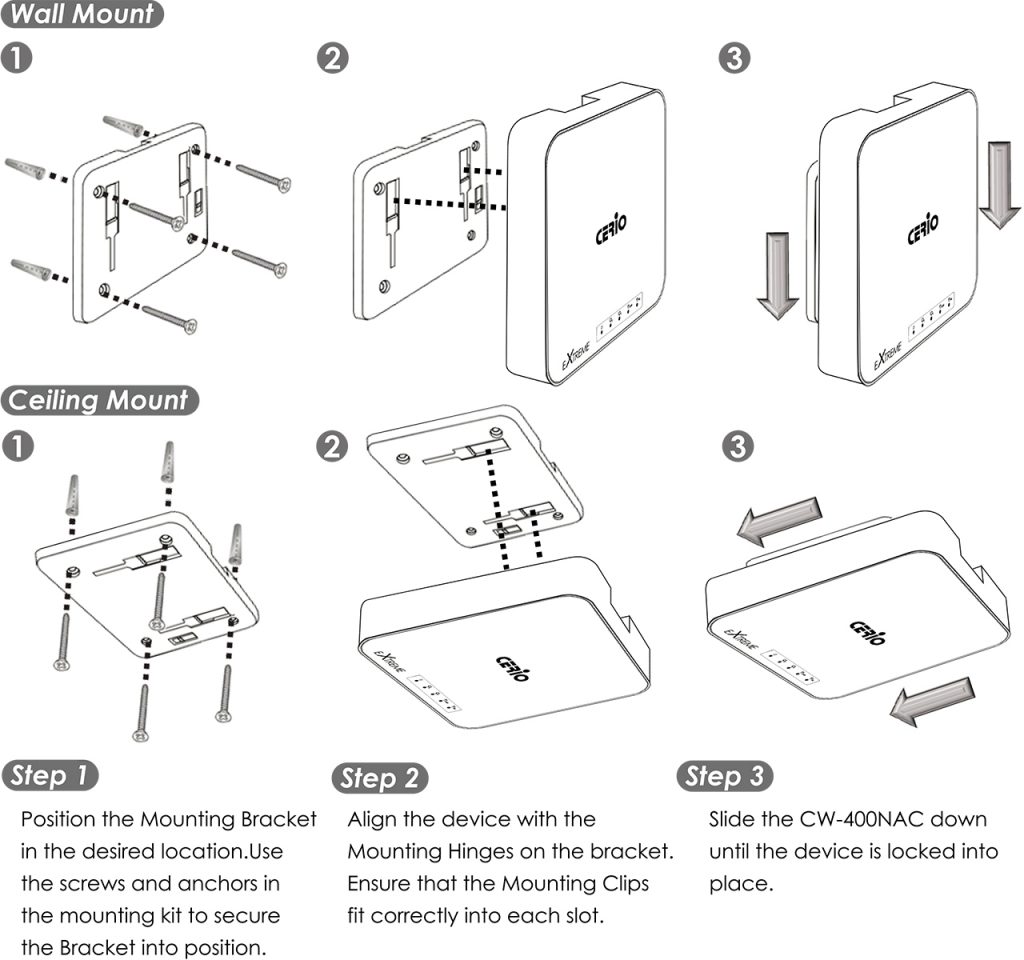

CW-400NAC A2 Mounting Installation

Software
Application Software Cerio CenOS 5.0 Software Core
Standards & Hardware Specifications
Network Standards Conformance IEEE 802.11 b/g/n/ac compliant

IEEE 802.3 / IEEE 802.3u

IEEE 802.11 b/g/n compliant

IEEE802.3af/at Power Over Ethernet compliant

IEEE 802.11Q VLAN

IEEE802.11r/

IEEE802.11k Fast Roaming

IEEE802.11e WMM

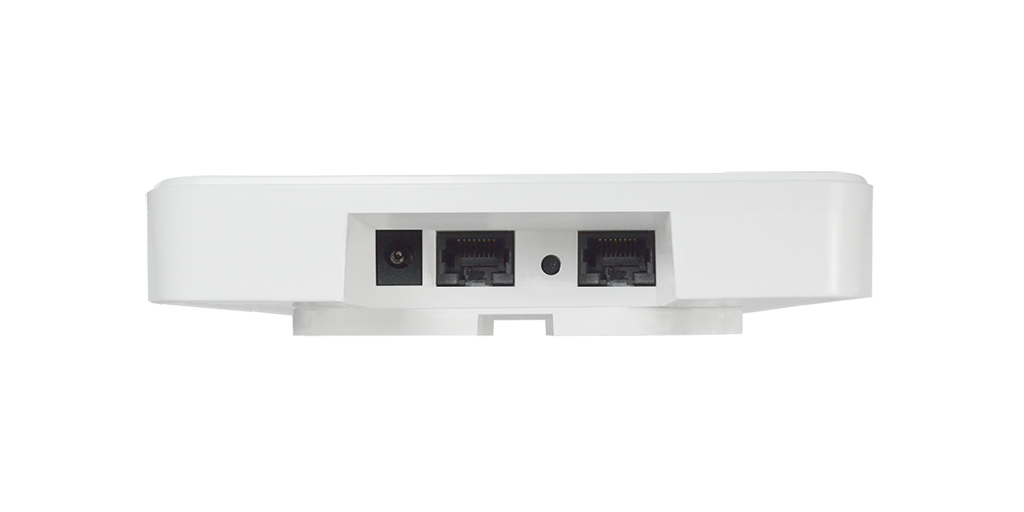

Ethernet Configuration 10/100/1000BASE-TX Auto MDI/MDI-X Ethernet Connector x 1
(Power over Ethernet 802.3.af/at PoE in )

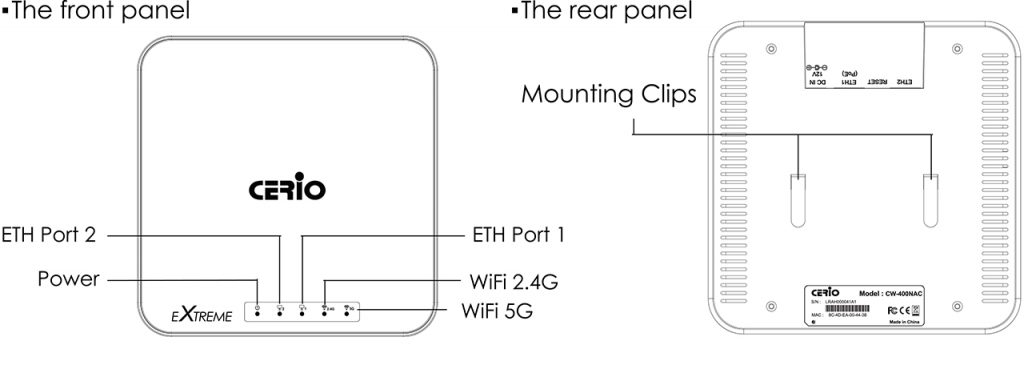

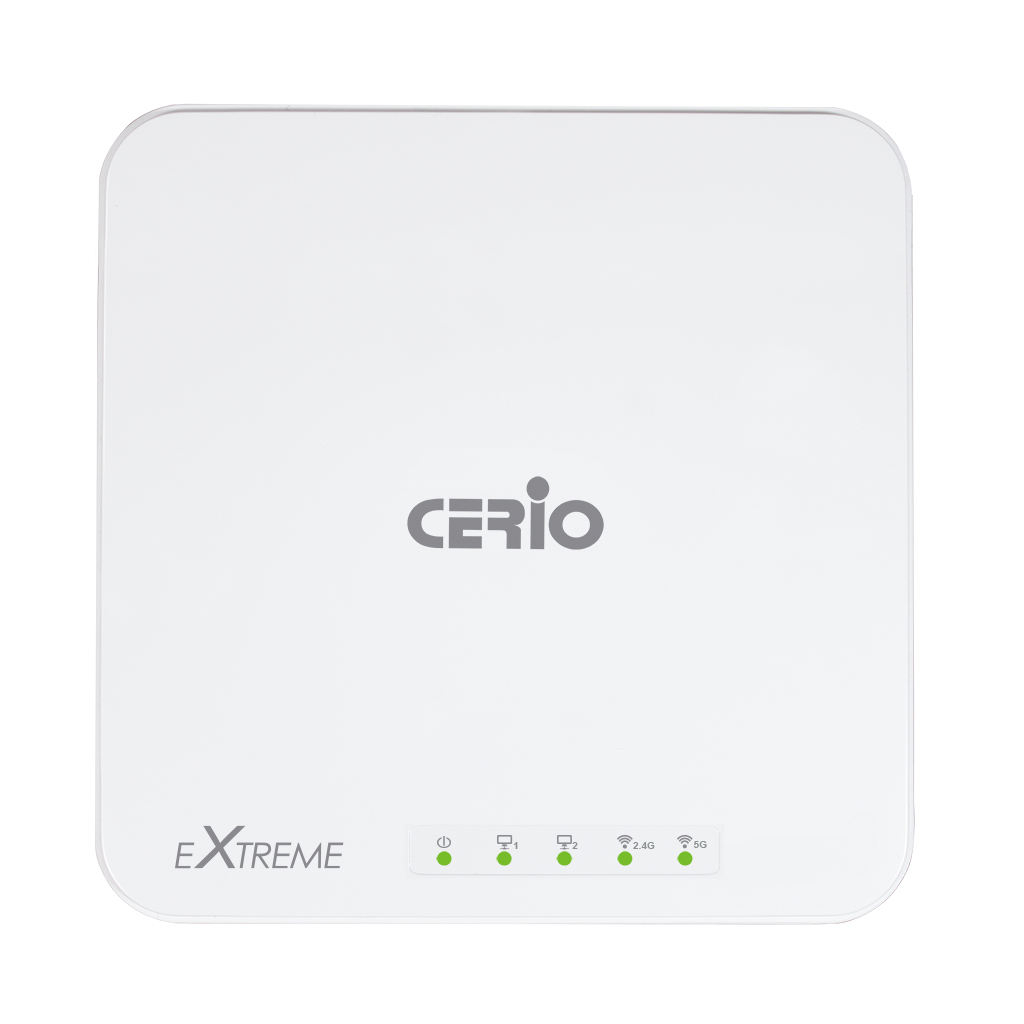

LED Indicators PWR  (Power)  LED  x1
ETH1  (PoE In)  LED x1
ETH2  (PoE Bridge)  LED x1
2.4GHz Wifi LED x1
5GHz Wifi LED x1
Wireless Specifications
Data Transfer Rate IEEE802.11b : 1 / 2 / 5.5 / 11Mbps (auto sensing)

IEEE801.11g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54Mbps

IEEE802.11n: 300Mbps (at 40MHz), 150Mbps (at 20MHz)

IEEE802.11ac: 867Mbps (at 80MHz) 400Mbps (at 40MHz)

Frequency Range IEEE802.11nbg :

2.412 ~ 2.462GHz (USA)

2.412 ~ 2.484GHz (Japan)

2.412 ~ 2.472GHz (Europe ETSI)

2.457 ~ 2.462 GHz (Spain)

2.457 ~ 2.472 GHz (France)

IEEE802.11a/an/11ac  :

5.150 – 5.350 & 5.725 – 5.825 GHz(USA)

4.900 – 5.250 GHz(Japan)

5.150 – 5.350 & 5.470 – 5.725GHz (Europe ETSI)

Channel Spacing IEEE802.11b/g/n : 20/40MHz IEEE802.11ac: 20/40/80MHz
Media Access Protocol CSMA / CA with ACK
Modulation Method IEEE802.11b : DSSS (DBPK,DQPSK,CCK)

IEEE802.11a/g/n : OFDM (64-QAM,16-QAM,QPSK,BPSK)

IEEE802.11ac : OFDM (256-QAM, 64,-QAM, 16-QAM, QPSK,BPSK)

Operating Channels 802.11b/g/n : 11 for FCC14 for Japan,13 for Europe, 2 for Spain, 4 for France

IEEE 802.11an/ac  @ 5GHz : US : 12 (CH: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161)
Japan : 4 (CH: 34, 38, 42, 46)
ETSI : 19 (CH: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140)

Transmit Power Variation 2.4Ghz :  Max : 29 ± 1 dBm 5Ghz :  Max : 27 ± 1 dBm
Receiver Sensitivity 2.4Ghz :  Max : -96 dBm 5Ghz :  Max : -92 dBm

Environmental & Mechanical Characteristics

Operating Temperature -10 °C ~ 55 °C
Storage Temperature -20 °C ~ 65°C
Operating Humidity 10% – 90% Non-Condensing
Storage Humidity 10% – 90% Non-Condensing
Antenna Build in 2×2 Dual Band Omni Directional Antenna
Form Factor Supports both Ceiling Mounting and Wall mounting, installed using a provided Mounting Bracket
System Power Consumption 24Watt (Max)
Power Supply 100 – 240V AC Power ;12 VDC
Supports Power Over Ethernet ( POE 48~57V voltage)
Integragted IEEE 802.3af /at Power over Ethernet (PoE)
Input Power AC to DC 12 VDC
Dimensions ( W x H x D ) 33x158x158 mm
Unit Weight 276g
Certifications FCC,CE, NCC, ROHS compliant



Package Contents

CW-400NAC A2 Main Unit x1

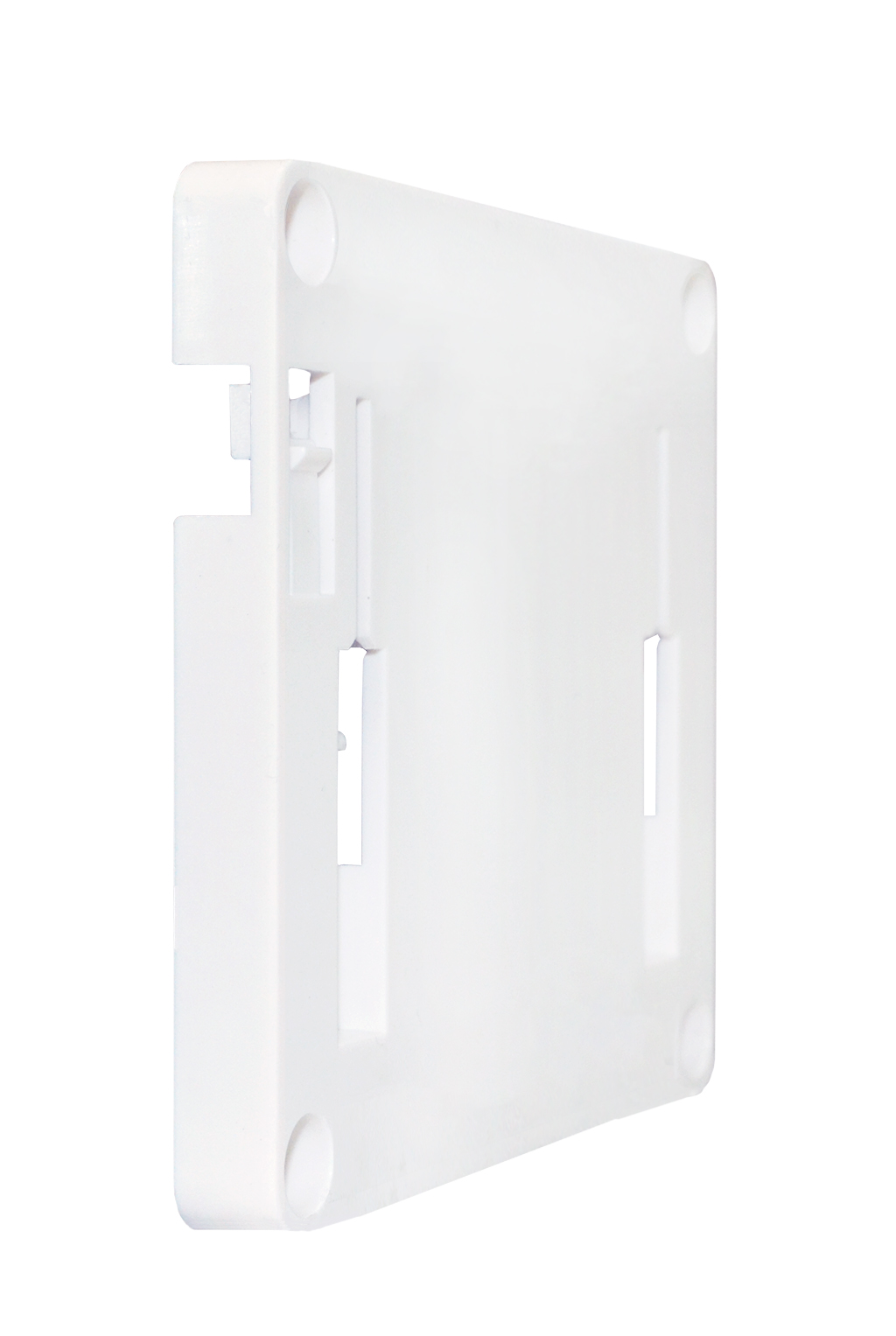

Mounting Bracket x1
Mounting Screw Pack x1
CD Manual x1
Quick Installation Service Card x1
