CFD4-100

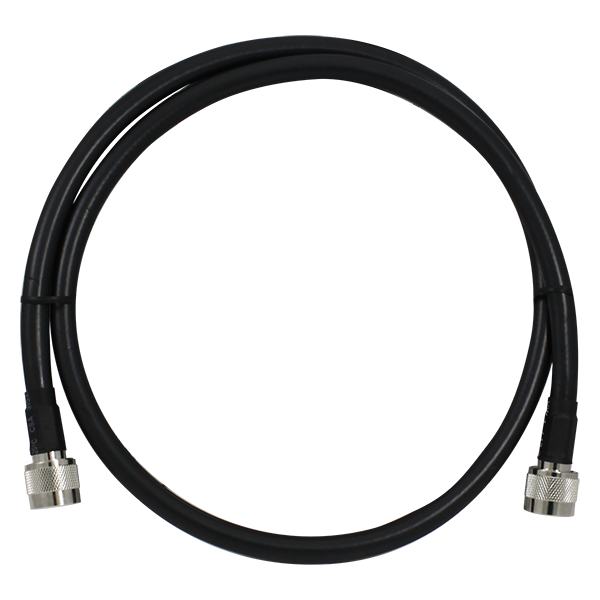

1M N-Plug (Male ) to N-Plug ( Male ) CFD400 Low Loss RF Antenna Cable
CFD4-100 1M N-Plug (Male) to N-Plug (Male) CFD400 Low Loss RF Antenna Cable provides low loss of attenuation with antennas. The cable supports 2.4GHz and 5GHz band applications where more RF gain power is required to increase coverage of the Wireless installations.
CFD4-100 1M N-Plug (Male) to N-Plug (Male) CFD400 Low Loss RF Antenna Cable provides low loss of attenuation with antennas. The cable supports 2.4GHz and 5GHz band applications where more RF gain power is required to increase coverage of the Wireless installations.
Highlight Features
- Length : 1 Meter (100CM).
- 2.4 ~ 5.8 Ghz Frequency range.
- Cable Low Loss at.
- @ 2.4GHz : Total Loss 0.222 dB.
- @ 5.5GHz : Total Loss 0.305 dB.
- @ 5.8GHz : Total Loss 0.355 dB.
| Specifications | |
| Cable Type | CFD-400 |
| Conductor | Material : Copper Clad Aluminum |
| Diameter O.D: 2.74mm ± 0.03mm | |
| Insulation | Material : PEF |
| Thickness : (NoM.) 2.2mm | |
| Diameter O.D: (NoM.)7.24mm | |
| Shield | Material : Tinned Copper Wirte |
| Coverage : 85% ↑ | |
| Diameter O.D: (NoM.)78.13mm | |
| Jacket | Material : Black PVC |
| Diameter O.D:10.3 mm ± 0.25mm | |
| Attenuation | IEEE802.11b/g/n : |
| (Cable Loss) | 2.4GHz : dB/100M Loss 22.2dB |
| IEEE802.11ac/an : | |
| 5.5GHz (Europe ETSI) : dB/100M Loss 30.5dB | |
| 5.8GHz GHz(USA) : dB/100M Loss 35.5dB | |
| Impedance | 50 Ohms |
| Connector | N-Type Plug (Male) to N-Type Plug (Male) |
| Operating Temperature | -40 °C ~ 80 °C |
| Storage Temperature | -40 °C ~ 80 °C |
| Operating Humidity | 100% Non-Condensing |
| Dimension | 1000 * 10.3 (L *W) mm |
| Cable Diameter 10.3mm (max) | |
| Connector Diameter 20mm (max) | |
| Weight | 193.2 ± 2g |
| Production Location | TW only |
