OW-PKTB

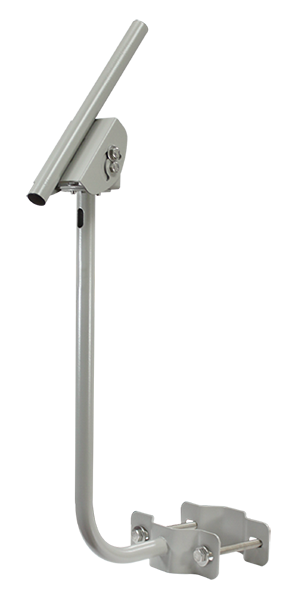

Outdoor Adjustable Coated Stainless Steel Wall / Pole Mount Bracket Set

OW-PKTB Outdoor Adjustable Coated Stainless Steel Wall / Pole Mount Bracket Set is designed for pole mount device deployment and easy installation. This powder coated stainless steel mounting bracket supports greater weight capacities, and is ideal for both indoor and outdoor application. OW-PKTB is perfect for simultaneously supporting multiple CERIO access points, outdoor antennas, CCTV IP cameras, and many other pole mountable device. OW-PKTB provides mounting solutions for devices that must maintain a certain distance from the wall (distance between mounting pole and wall is 13.5cm) such as wireless devices and monitoring equipment.

OW-PKTB Outdoor Adjustable Coated Stainless Steel Wall / Pole Mount Bracket Set is designed for pole mount device deployment and easy installation. This powder coated stainless steel mounting bracket supports greater weight capacities, and is ideal for both indoor and outdoor application. OW-PKTB is perfect for simultaneously supporting multiple CERIO access points, outdoor antennas, CCTV IP cameras, and many other pole mountable device.

OW-PKTB provides mounting solutions for devices that must maintain a certain distance from the wall (distance between mounting pole and wall is 13.5cm) such as wireless devices and monitoring equipment. This outdoor coated stainless steel mounting bracket also utilizes a hollow design which provides protection of wires and cabling by allowing them to be fed through the pole itself. M6 screw holes at the top of the mounting bracket support 4x 2.5cm square distances from the center of each hole.

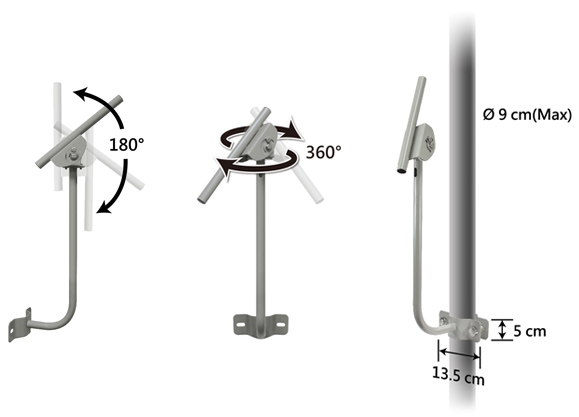

OW-PKTB’s top bracket allows users to mount devices on an adjustable pole that allows for a 180° vertical H-plane turning range from 0° to 180°. The top bracket supports 4 rotations of 110°, which provides full adjustment flexibility to cover a complete 360° rotation along the E-plane. OW-PKTB utilizes a coated stainless steel design to protect against weather damage (sun/water/wind), making it perfect for any type of outdoor environment.

Highlight Features

  • Stainless steel construction for reliable fixed pole mounting support.
  • Powder Coating for strengthened protection against weather damage (sun/water).
  • Supports both wall and pole mounting through bracket versatility.
  •  Waterproof Exterior for a variety of deployment environments.
  • 360° Top Bracket device rotation.
  • 180° Vertically Adjustable Top Bracket (from 0° to 180°).
  • Hollow bracket design for wire and cable protection.
  • Withstands a Rated Wind Velocity of 245km/Hour.
  • Supports Max weight load of 5kg.



Specifications
Hardware
Material Stainless Steel + Powder Coating
Device Type Support Supports Pole Mountable Devices
Rated Wind Velocity Max wind speeds of 245km/hour
Maximum Weight Support Supports Max weight of 5kg
Adjustable Design Top Bracket Supports 180˚ Vertical Adjustment Range (0˚ to 180˚)
  Top Bracket Supports 4 110˚ Rotations, allowing for complete 360˚ rotation ability
  -50˚C – + 75˚C
Operating Temperature -50˚C – + 75˚C
Storage Temperature 5~90% maximum (non-condensing)
Humidity Top Bracket Pole Length: 240mm (Pole Diameter: 19mm)
Dimensions ( H,W ) Top Bracket Width: 68.5mm (parallel width from mounting base)
  Bottom Bracket Dimension (excluding pole mount clamp): 433x150mm
  L Pole Vertical Length: 400mm (pole diameter : 19mm)
  L Pole Horizontal Length: 130mm (pole diameter: 19mm)
  Max Pole Mount Bracket Diameter: Supports poles and street lights- with a Minimum diameter of 50mm ,maximum diameter of 90mm
Unit Weight 1060g ±1g
Production Location TW only



Package Content
OW-PKT Main Unit x1
OW-PKB Main Unit + OW-PKT Attachment Screws x1
Pole Mounting Bracket & Screw Pack x1
Wall Mounting Screws & Metal Anchor Pack x1
