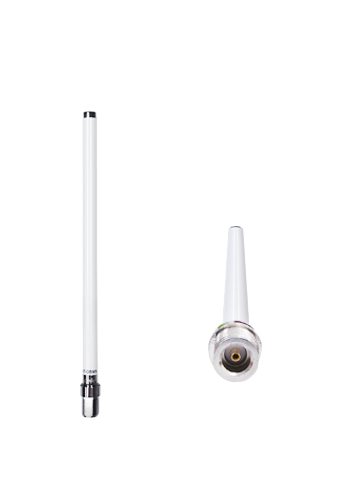

ANT-07AN-S

5Ghz Outdoor thin type Omni 7dBi Plug Antenna

The CERIO ANT-07AN-S is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. It provides a 20˚ range E Plane coverage for point to point and point to multi – point application. The ANT-07AN-S supports 5.1 to 5.9 GHz and provides superb performance in IEEE 802.11a/an/ac/ax Wi-Fi. ANT-07AN-S includes an integrated N Plug (male) connector to simplify connection to your outdoor device. All materials are considered good in water tightness and prevention of rust characteristics. All products pass a strict test, and satisfy professional user product needs.

The CERIO ANT-07AN-S is the perfect solution for extending the range and increasing the signal strength of an outdoor wireless network. It provides a 20˚ range E Plane coverage for point to point and point to multi – point application.

The ANT-07AN-S supports 5.1 to 5.9 GHz and provides superb performance in IEEE 802.11a/an/ac/ax Wi-Fi. ANT-07AN-S includes an integrated N Plug (male) connector to simplify connection to your outdoor device.

All materials are considered good in water tightness and prevention of rust characteristics. All products pass a strict test, and satisfy professional user product needs.

Highlight Features
  • High Gain: 7dBi.
  • 20˚ Width-E Plane coverage.
  • High performance for Multi-point Applications.
  • Light-weight.
  • Waterproof design.
  • Simple and easy installation.
  • N-Plug(male) connector.



Antenna Converage



Installation Application

Hardware Overview / Dimension





Specifications
Antenna Type Outdoor Omni Antenna
Frequency Range 5.1 ~ 5.9GHz (11a/an/ac/ax)
Network Specification Wireless 5Ghz Network IEEE 802.11a/an/ac/ax
Antenna Gain 7dBi
V.S.W.R Antenna : ≦2 ; Connector : ≦1.5
Beam Width-H Plane 360˚
Beam Width-E Plane 20˚
Polarization Vertical (Linear)
Input Impedance 50 Ohms
Connector N-Type Male
Rated Wind Velocity 200 Km / Hour
Operation Temperature -40˚C – + 70˚C
Storage Temperature -50˚C – + 80˚C
Humidity 5~90% maximum (non-condensing)
Dimension 188 * 23 (L *W) mm
Weight 63.5g
Production Location TW
Package Content
ANT-07AN-S Main Unit ( PE Bag) x1
