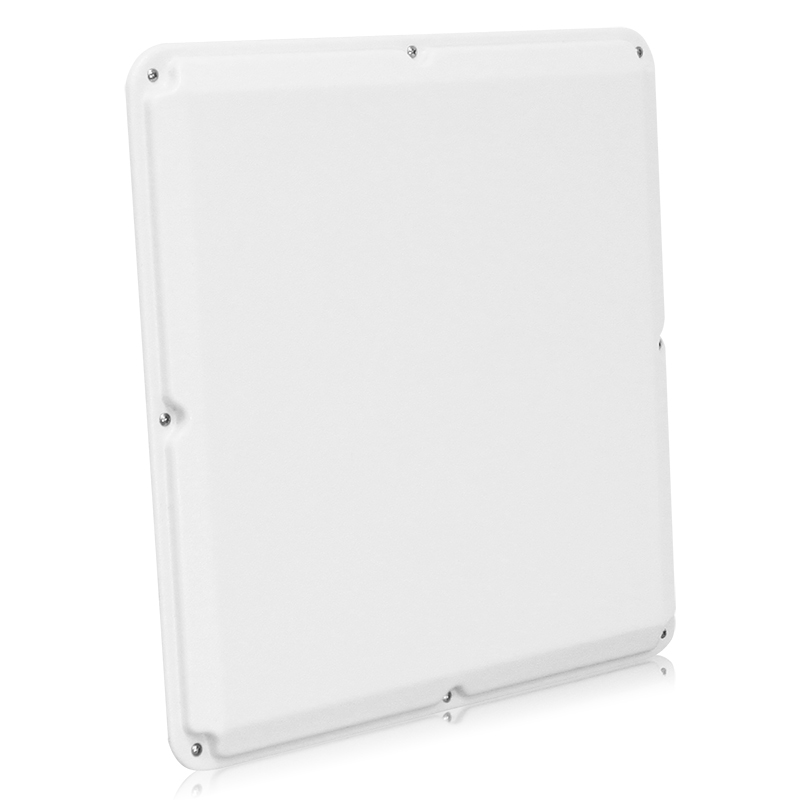

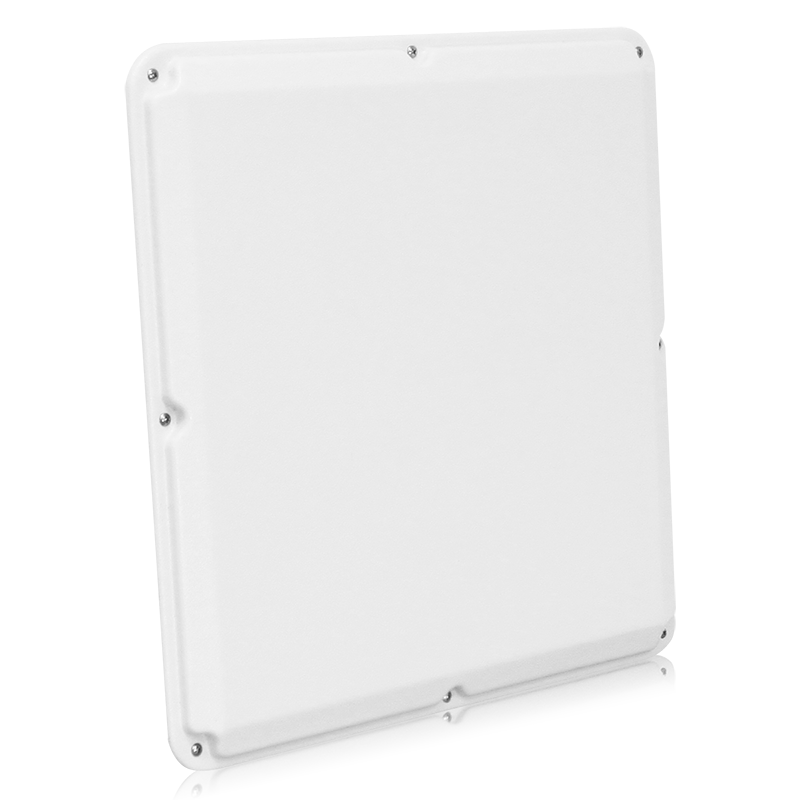

ANT-19FN-P
2.4GHz 1×1 Outdoor Directional Panel 19dBi Pole Mount Antenna
ANT-19FN-P provide 18° for H Plane and 18° for E Plane long distance coverage for point to point application.
ANT-19FN-P provide 18˚ for H Plane and 18˚ E Plane long distance coverage for point to point application.
The ANT-19FN-P supporting 2.4 to 2.5 GHz and provides superb performance in IEEE 802.11b/g/n WiFi, Includes mounting kit with an integrated N Female connector. All materials are all to consider good of water tightness and prevention rust of characteristic, and the products all pass a strict test, satisfy professional user for product need.
Features
- High gain: 19dBi.
- 18˚ Width-E Plane and 18˚ Width-E Plane coverage.
- High performance.
- Fiberglass material.
- Light-weight.
- Waterproof design.
- Easy installation for adjustable down / up wall mount design.

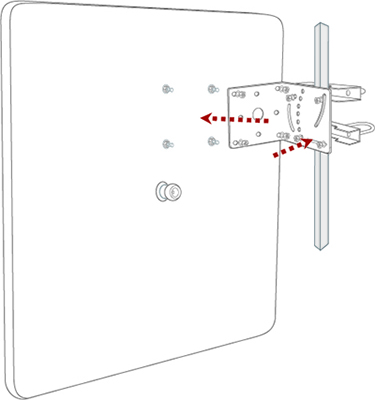

- Provide Pole Mount function.
Size：373 * 373*15 (L * W * H)mm
Weight：1.09kg
| Specifications | |
| Antenna Type | Outdoor Directional Panel Antenna |
| Frequency Range | 2.4 ~ 2. 5GHz |
| Network Specification | Wireless 2.4Ghz Network IEEE 802.11n , IEEE 802.11b/g |
| Gain | 19dBi |
| V.S.W.R | ≦1.5 |
| Beam Width-H Plane | 18˚ |
| Beam Width-E Plane | 18˚ |
| Polarization | Vertical (Linear) |
| Input Impedance | 50 Ohms |

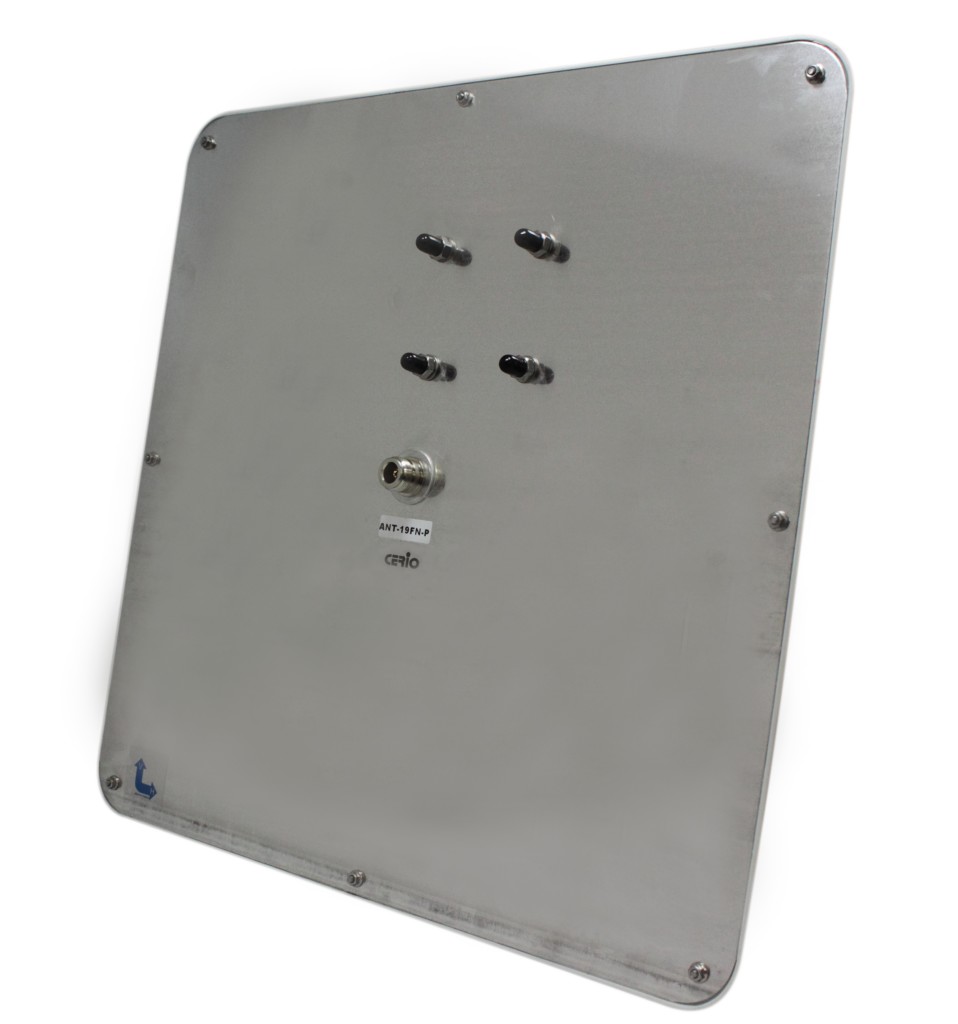

| Connector | N-Type Female |
| Form Factor | Pole Mount ( U-Clamps ) |
| Adjustable range | 0-30˚ adjustable wall mount design |
| Operation Temperature | -50˚C – + 85˚C |
| Storage Temperature | -50˚C – + 85˚C |
| Humidity | 5~90% maximum (non-condensing) |
| Dimension | 373 * 373 *15 mm ( L x W x H ) |
| Weight | 1.09kg |
| Production Location | TW Only |
| Package Content | |
| ANT-19FN-P Antenna Main Unit | x1 |
| Pole Mount kit | x1 |
| Quick Installation Guide Booklet | x1 |
| Warranty Card | x1 |
