POE-G90I

90Watt 10/100/1000M/Multi Gigabit PoE Injector

CERIO POE-G90I supports IEEE 802.3af/at/bt Power Over Ethernet Standard. It’s a Multi Gigabit single port Active PoE Injector and provides DC 56 Volt over Ethernet cables. It supports IEEE 802.3bt Type3/60Watt PoE++, IEEE 802.3bt Type4/90Watt PoE++, IEEE 802.3at Type2/30Watt PoE+ , IEEE 802.3af Type1/15.4Watt PoE and provides two Ethernet ports connection. The CERIO PoE++ Injector can simultaneously transmit network data and power to the PD equipment through the UTP Ethernet Cable transmission. It is a costeffective complying with IEEE 802.3af/at/bt standard Multi Gigabit PoE++ Injector and provides the best solution for High-end WiFi PoE AP ,Digital Signage PoE Station , PoE Speed Dome , Pan-Tilt-Zoom PoE IP CAM surveillance system integrators, etc.

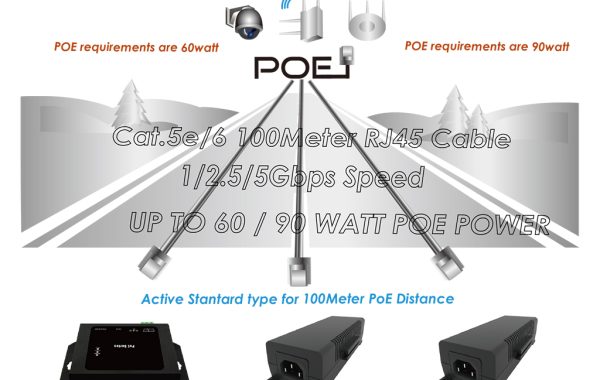

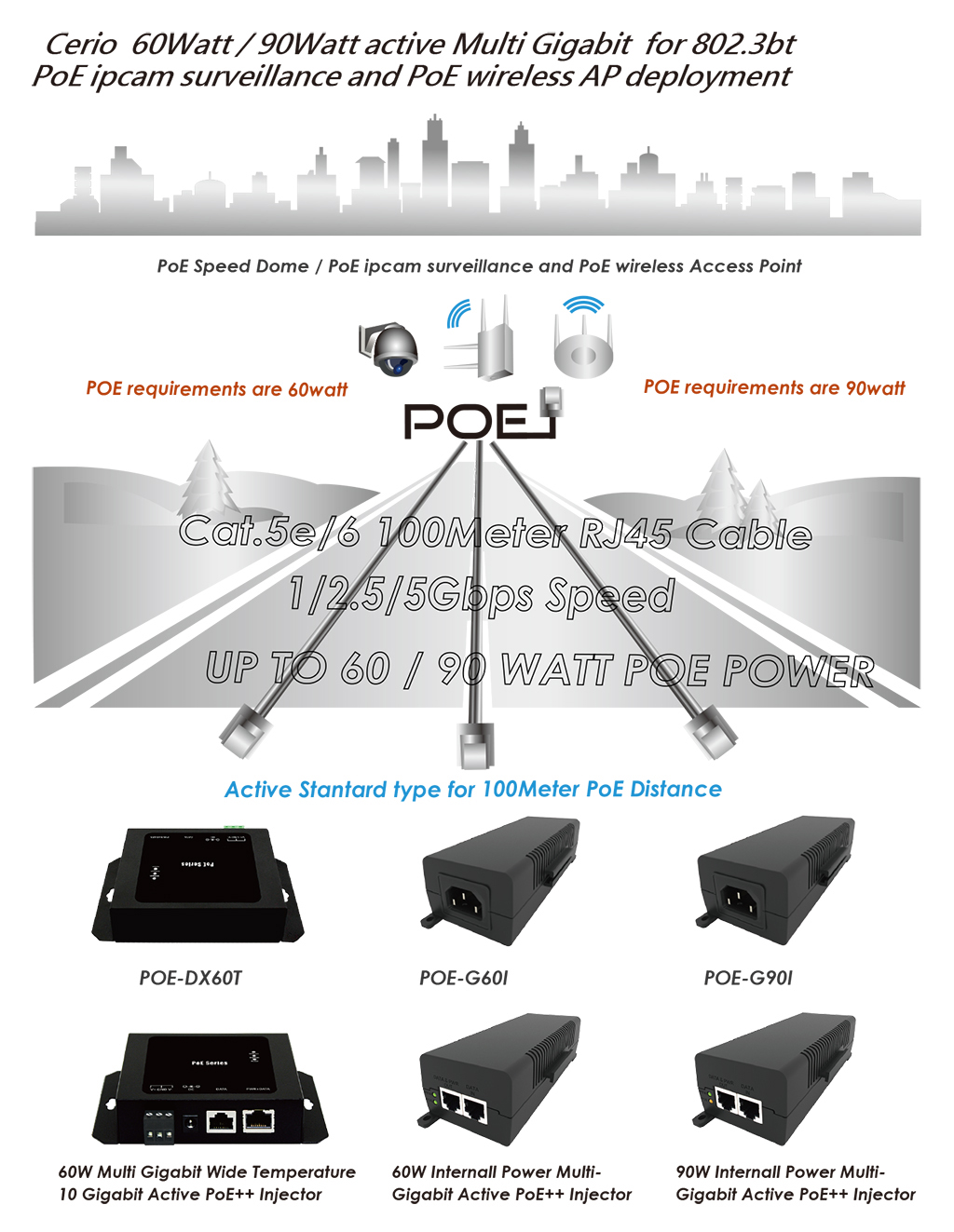

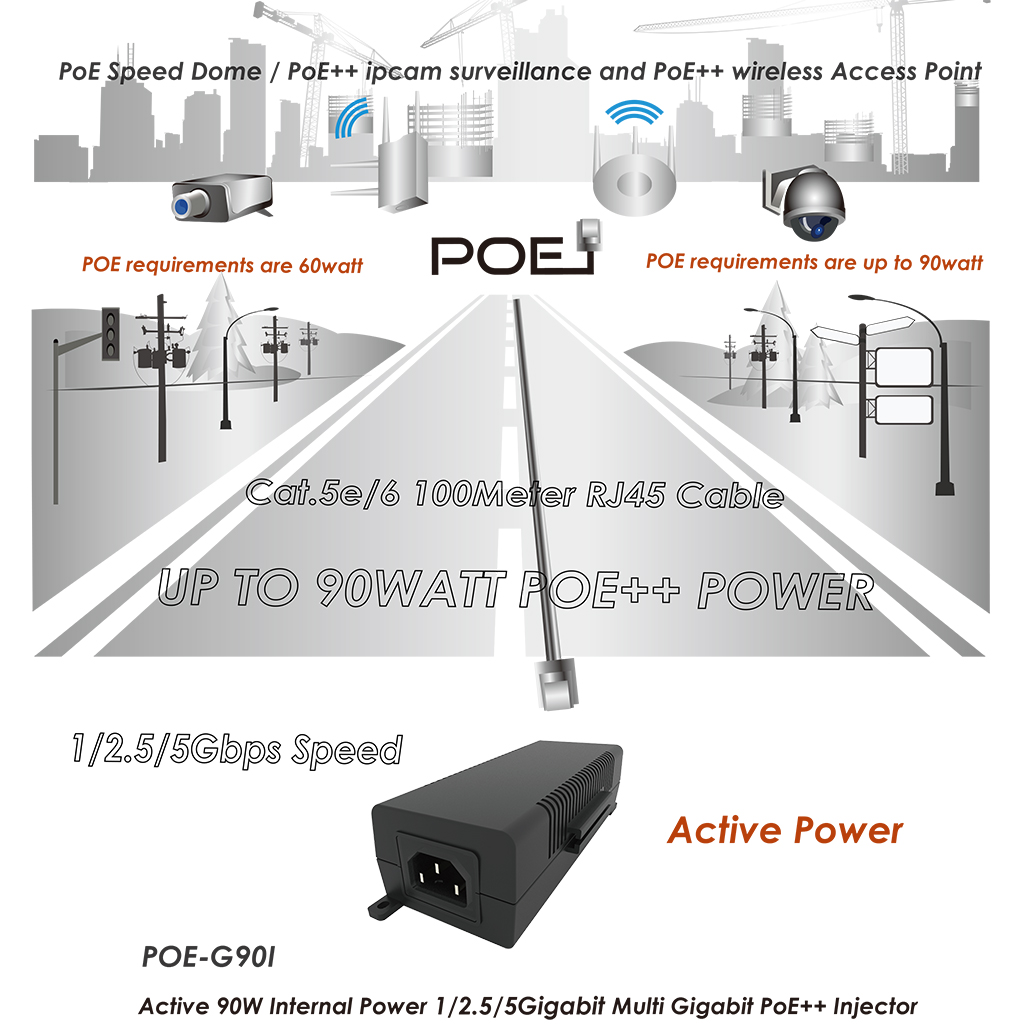

POE vs. Deployment Applications







Higlight Features

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, IEEE 802.3bt PoE++, IEEE 802.3at and IEEE 802.3af PoE standards.
  • Supports Multi Gigabit (1/2.5/5Gbps) Ethernet connection ability.
  • Supports PoE PSE/PD function and provides 802.3bt PoE Class8 and backward power level for PD device.
  • Provides Active 802.3bt PoE++ output ability, and low cable-loss which can maintain 90Watt PoE power up to 100 meters distance.
  • Supports End-span (Type-A) and Mid-span (Type-B) power pin.
  • Internal power design and supports 56V PoE+ output.
  • Supports IEEE 802.3af/at/bt POE standards and PoE max power up to 90Watt Class8 PoE++ output.
  • Support PSE / POE Power Over Ethernet function which can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5e or up cabling.
  • Over Current Protection and Short-circuit Protection.
  • Supports Desktop, Wall mounting and Units Combination for easy to bundles organize the Ethernet cables.

Functionality

The CERIO POE-G90I Power over Ethernet (PoE++) injector is designed to through 4Pair UTP Ethernet Cable to deliver both data and power to PD device, such as the latest WiFi 6 generation 802.11ax PoE WiFi AP, PoE IP Speed Dome PTZ CAM and surveillance system equipment provide a stable high power PoE powered solution. The POE-G90I greatly simplifies the wiring and deployment process, and brings a great deal of convenience benefits to system integration, office, and industrial environments.

Long Distance Application

CERIO PoE++ Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5e or up cabling.

ESD Protection

POE-G90I supports ESD, Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.

Additional Benefits

Some additional benefits of CERIO PoE++ Injector include cost saving, convenience in network planning, and higher
reliability.

Easy installation

Plug-and-Play, requires no configuration.

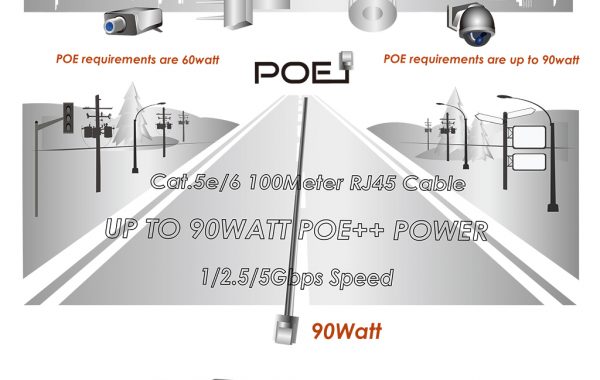

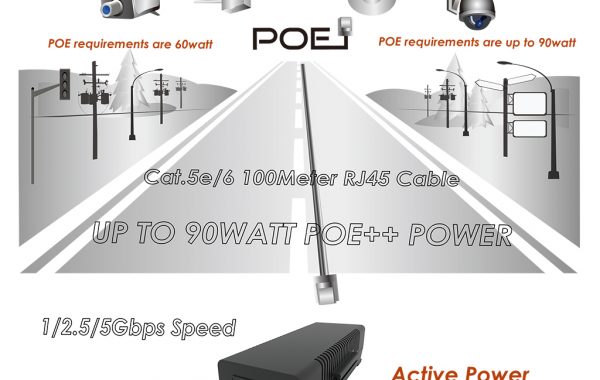

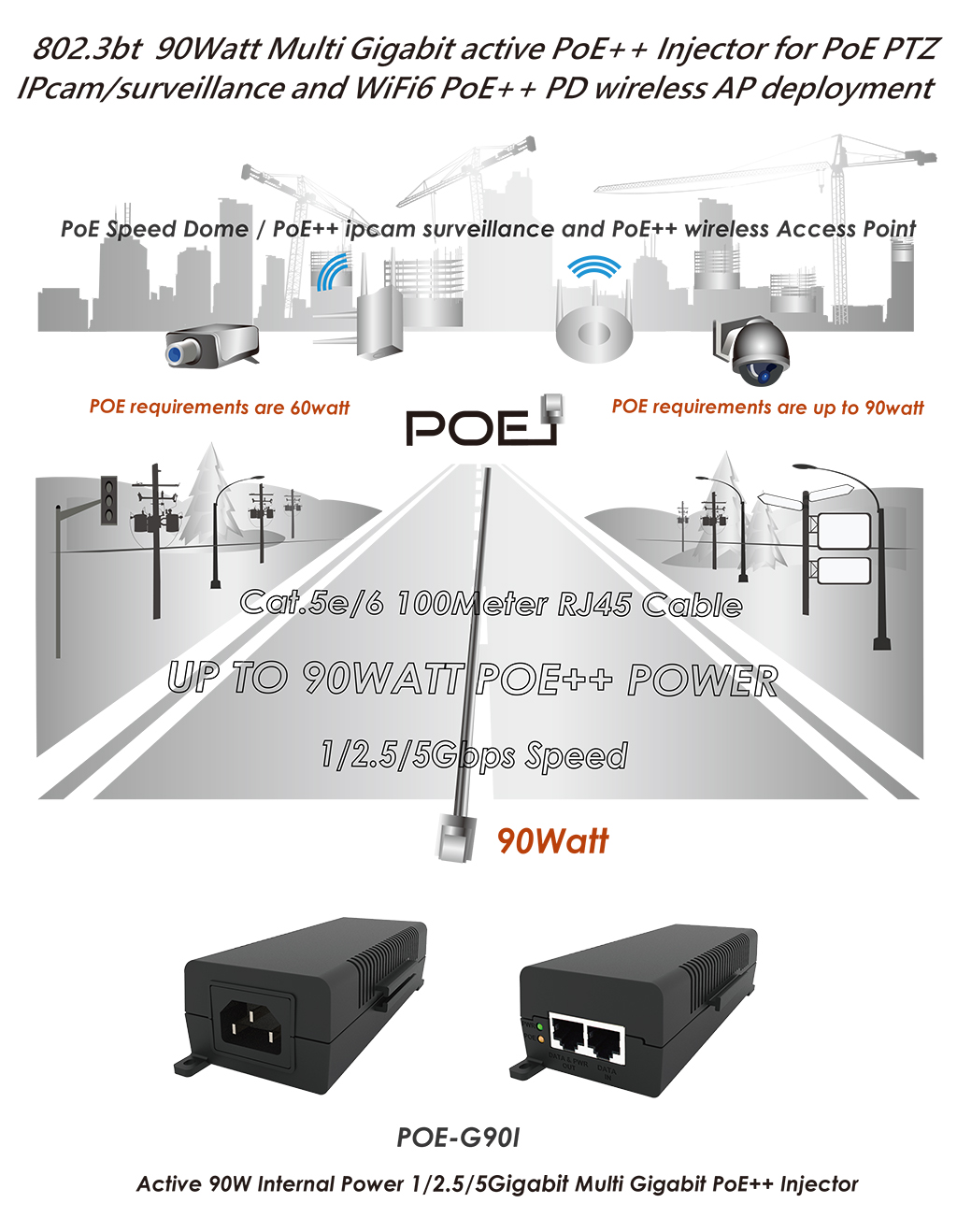

Product Application

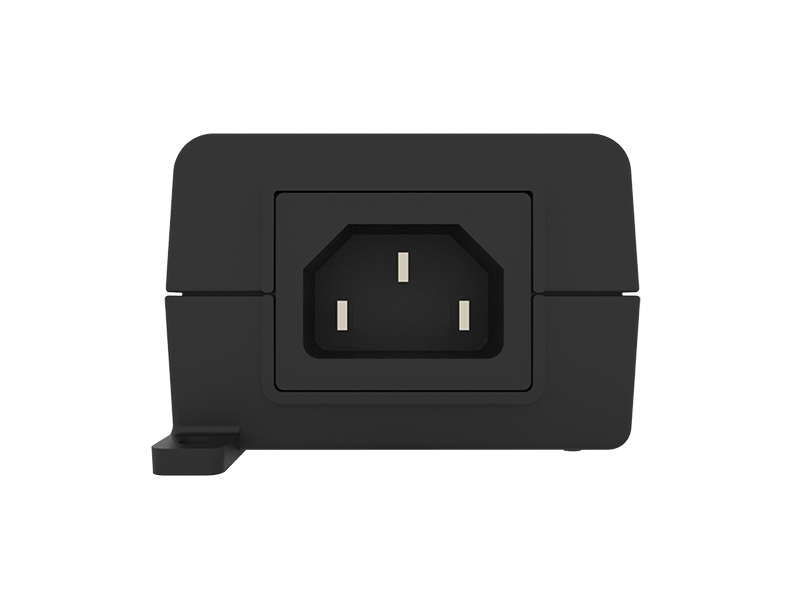

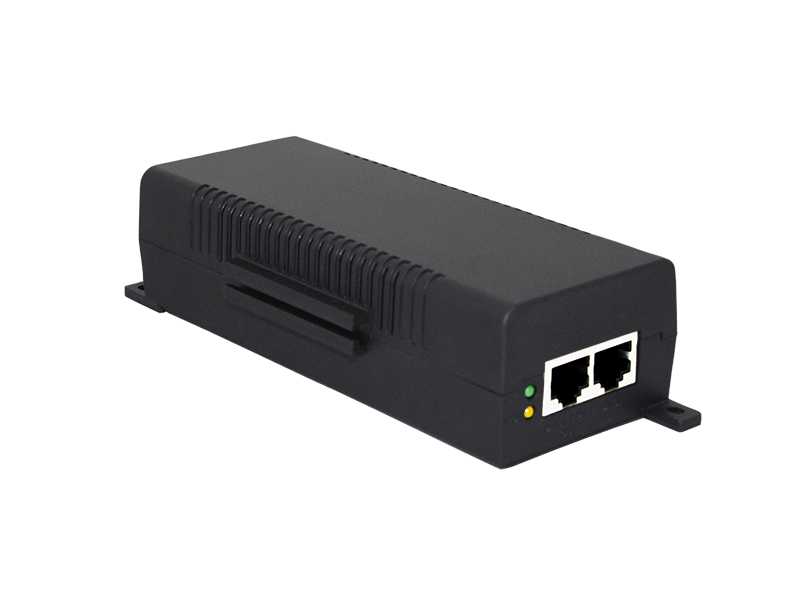

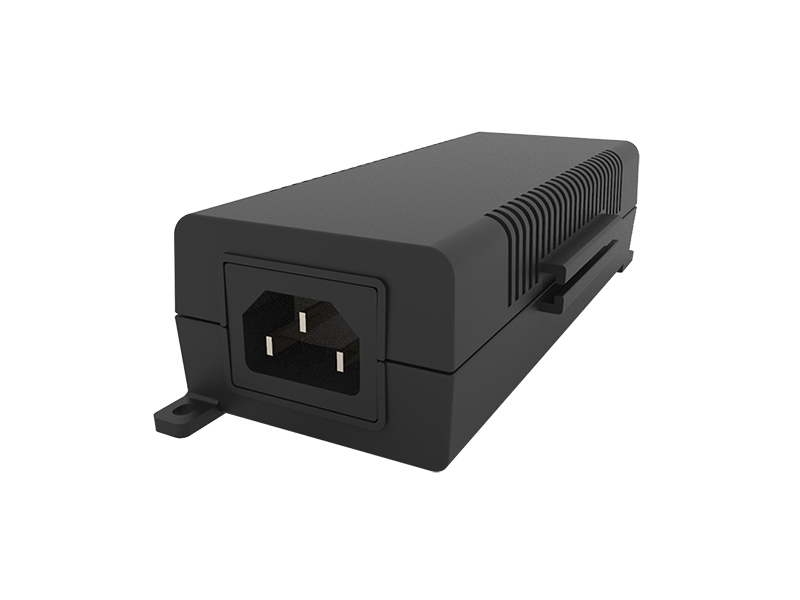

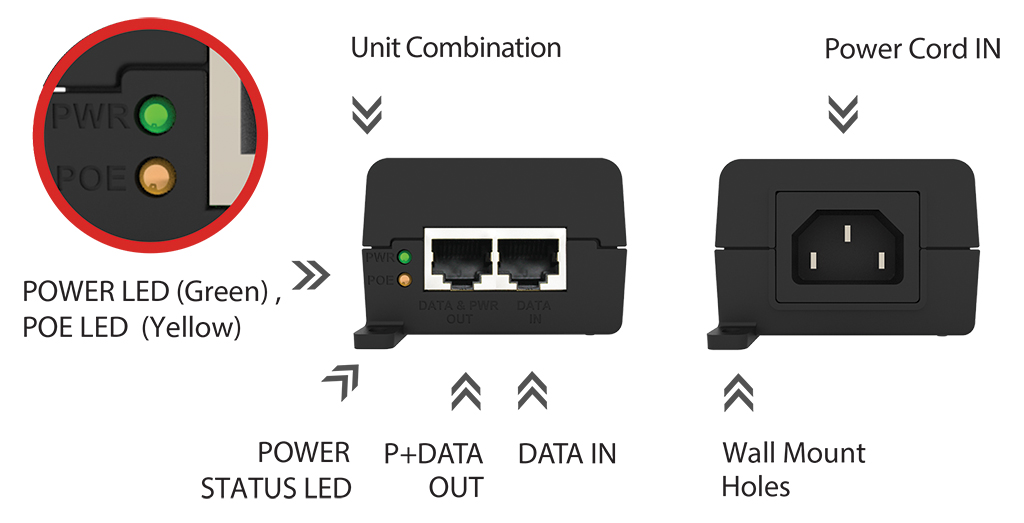

Hardware Overview

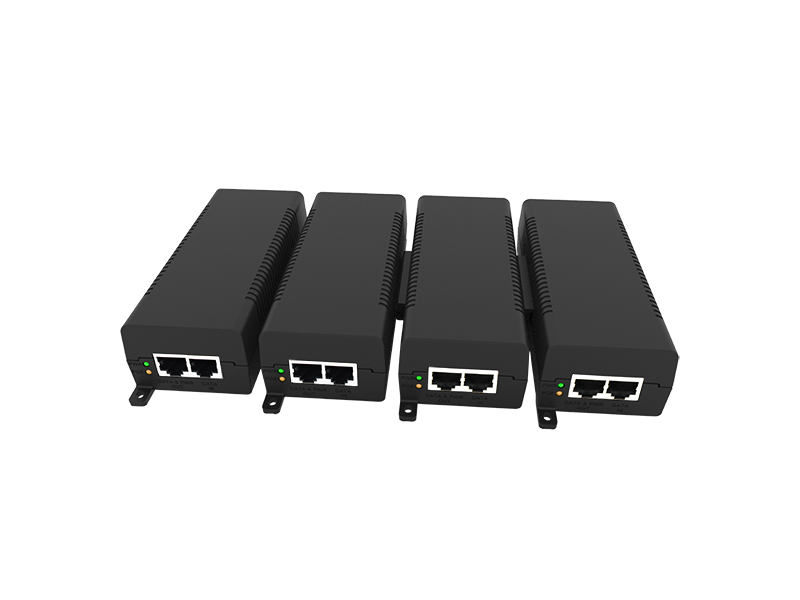

Units Combination

Standards & Hardware Specifications
Standard IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5G BASE-T
IEEE 802.3af Type1 Power over Ethernet (PoE)
IEEE 802.3at Type2 Power over Ethernet (PoE+)
IEEE 802.3bt Type3/Type4 Power over Ethernet (PoE++)
Network Media 10BASE –T: UTP Cat. 3 or up
100BASE-TX: UTP Cat.5 or up
1G/2.5G/5GBASE-T : UTP Cat.5e or up
Data Transfer Rate 10M/100M/1G/2.5G/5G (Half-duplex),
20M/200M/2G/5G/10G (Full-duplex)
PoE Type Active POE ( Includes the following class standard ) :
Type1 : POE Class1~3, IEEE802.3af 4/7/15.4Watt
Type2 : POE Class4 , IEEE802.3at 30Watt
Type3 : POE Class5~6, IEEE802.3bt 45/60Watt
Type4 : POE Class7~8 , IEEE802.3bt 75/90Watt
Data PIN PIN 1/2,3/6 & 4/5,7/8
Power PIN End-span (Type-A): PIN 1/2,3/6
Mid-span (Type-B): PIN 4/5,7/8
Ethernet Connector RJ-45 x1 : Data
RJ-45 x1 : Power + Data
Power Interface Output: RJ45 IEEE 802.3af/at/bt Active PoE++ 56V Out
Input: AC In
ESD Protection Supports ESD (Electro Static Discharge)
Over Voltage protection and Short Circuit Protection
Environmental & Mechanical Characteristics
Max PoE Power 90Watt
Power Requirement AC Power Code
PoE Output Voltage 56Volt
Input Voltage AC 100~240V, 50-60Hz

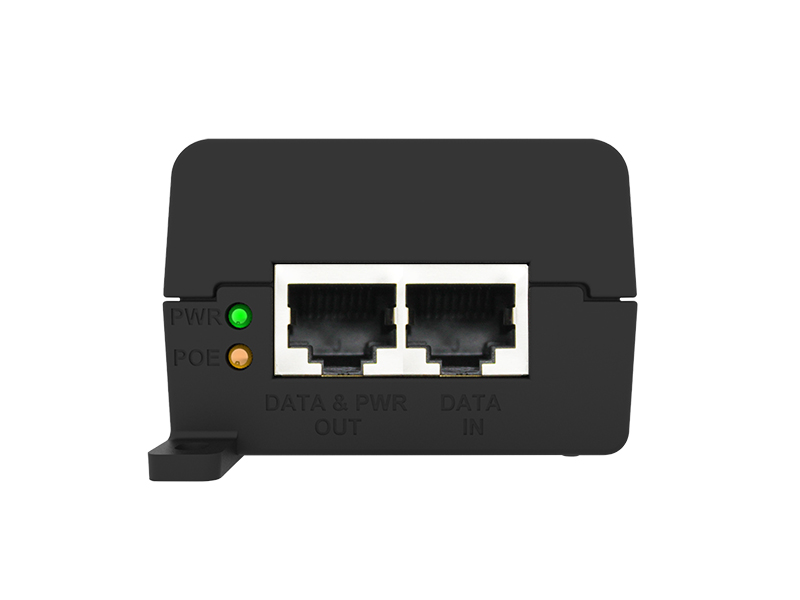

LED System (Power) : Green x1
PoE : Yellow x1
Operating Temperature 0° to 40° C
Storage Temperature -40° to 70° C
Storage Humidity 5% to 90% non-condensing
Dimension ( W x H x D ) 67.5*164*39.8mm
Weight ( g ) 236g
Form Factor Wall mounting, Desktop, Units Combination
Case of material Plastic
Production Location TW
Certifications FCC ,CE, RoHs compatible
Package Content
POE-G90I  Main Unit x1
Power Code x1
Warranty Card x1
