POE-MG30
The POE-MG30 compatible with IEEE 802.3af/at standard, and Power over Ethernet Injector provides DC48-57V over Ethernet cables. It supports up to IEEE802.3af 15.4Watt POE (Class3 Standard) and IEEE802.3at 30 Watt POE+ (Class4 Standard) maximum output power. Unlike existing Power over Ethernet Injectors, the POE-MG30 provides 1/2.5/5Gbps Multi Gigabit RJ45 Ethernet connection ability.
Higlight Features
• Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2500/5000BASE-T, IEEE 802.3af PoE,IEEE 802.3at PoE+.
• Supports 1/2.5/5Gbps Multi Gigabit RJ45 Ethernet Connection.
• Auto detect PD power supply is powered by Endspan (Type-A) or Mid-span (Type-B) power pin, and LED indicators for Power function enable.
• Max Power : 30Watt (IEEE 802.3at) POE+ , for bundle 55V/0.55A Power supply.
• Supports PoE Powered Device (PD ) classification identify.
• Over Current Protection.
• Short-circuit Protection
• Supports multiple units combination easy to use
Long Distance Application
Cerio POE Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
Functionality
POE-MG30 greatly simplifies the wiring and deployment process, and brings a great deal of convenience benefits to home, office, and industrial environments. Provides 1/2.5/5Gbps Multi Gigabit RJ45 Ethernet to meet current and future network needs, and supports both End-span (Type-A) and Mid-span (Type-B) power pin more convenient to use. The POE-MG30 Power over Ethernet (POE) adapter is designed to supply operational power to wireless LAN devices such as PoE access point bridges, routers, and surveillance cameras. With Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device.
ESD Protection
POE-MG30 supports ESD, Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.
Additional Benefits
Some additional benefits of Cerio POE Injector include cost saving, convenience in network planning, and higher reliability.
Easy installation
Plug-and-Play, requires no configuration.

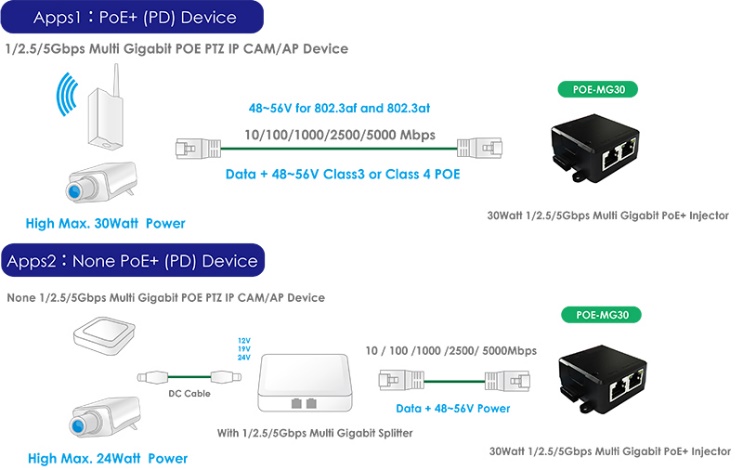

Product Application

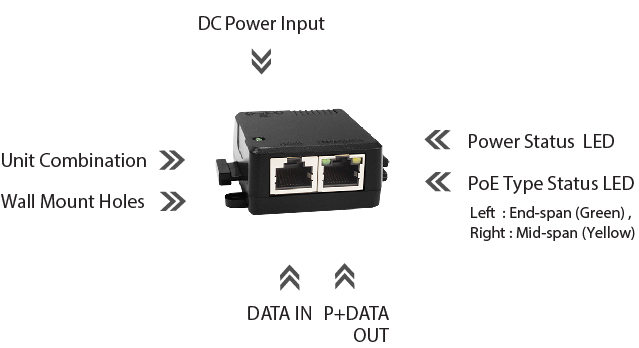

Hardware Overview
| Standards & Hardware Specifications | |
| Standard | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2500/5000BASE-T IEEE802.3af Power over Ethernet (POE) IEEE802.3at Power over Ethernet Plus (POE+) |
| Network Media | 10BASE –T: UTP Cat. 3 or up 100BASE-TX : UTP Cat. 5 or up 1000BASE-T: UTP Cat. 5 or up |
| Data Transfer Rate | 10/100/1000/2500/5000Mbps (Half-duplex), 20/200/2000/5000/10000Mbps (Full-duplex) |
| PoE Type | End-span (Type-A): PIN 1/2,3/6 Mid-span (Type-B): PIN 4/5,7/8 |
| Data PIN | PIN 1/2,3/6 & 4/5,7/8 |
| Power PIN | PIN 1/2,3/6 or 4/5,7/8 (Power + Data Pin) |
| ESD Protection | Over Voltage protection and Short Circuit Protection |
| Environmental & Mechanical Characteristics | |
| Max Power Output | 30Watts |
| Power Connector(Interface) | DC-Jack |
| Power Requirement | External Power Supply 55V DC / 0.55A |
| Input Voltage | 48 ~ 57Volt |
| LED | System: Power (Green) x1 PoE (RJ45): End-span(Green), Mid-span (Yellow) x2 (The PoE LED on RJ45 Jack) |
| Operating Temperature | 0° to 55° C |
| Storage Temperature | -40° to 70° C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Dimension ( W x D x H ) | 65 x 52 x 28mm |
| Weight ( g ) | 43g |
| Form Factor | Wall mounting / Units Combination |
| Case of material | ABS |
| Production Location | TW Only |
| Certifications | FCC ,CE, RoHs compatible |
| Package Contents | |
| POE-MG30 Main Unit | x 1 |
| 30Watt Power Adapter | x 1 |
| Warranty Card | x 1 |
