POE-STG



PoE Series – 10/100/1000M Gigabit PoE+ Splitter

Cerio POE-STG adapter effectively allows any PoE device to become compliant with 44~57V 802.3at PoE standards.This conveniently standardizes power management of your system by introducing compatibility of passive PoE devices with standard 802.3at switches. POE-STG hardware design includes two 10/100/1000Mbps gigabit Ethernet ports,and one DC power input jack.

POE-STG adapter effectively allows any PoE deviceto become compliant with 44~57V 802.3at PoE standards.
This conveniently standardizes power management of your system by introducing compatibility of passive PoEdevices with standard 802.3at switches. POE-STG’s hardware design includes two 10/100/1000Mbps gigabit Ethernet ports, and one DC power input jack.*The Gigabit PoE must use a Cat 6 Ethernet cable to meet the 100Meters PoE distance.

 Higlight Features

    • Transform all Cerio Access Points into 802.3at/af compatible devices
    • Supports dual functionality as a 24W PoE Adapter
      or a 24W PoE Injector
    • Up to 100 meters (328 feet) application

802.3af/at Compatibility

  • POE-STG is perfect for transforming Cerio access points that use a passive PoE design into 802.3at compliant devices. Other applications also include deploying passive PoE IP cameras with standard 802.3at PoE switches.

Dual Functionality

  • Users can optionally select whether to use a PoE PD or DC power adapter as the power source, with both methods providing passive PoE output for APs and other PoE devices.

Long Distance Application

  • POE-STG can provide both gigabit data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 6 cabling.

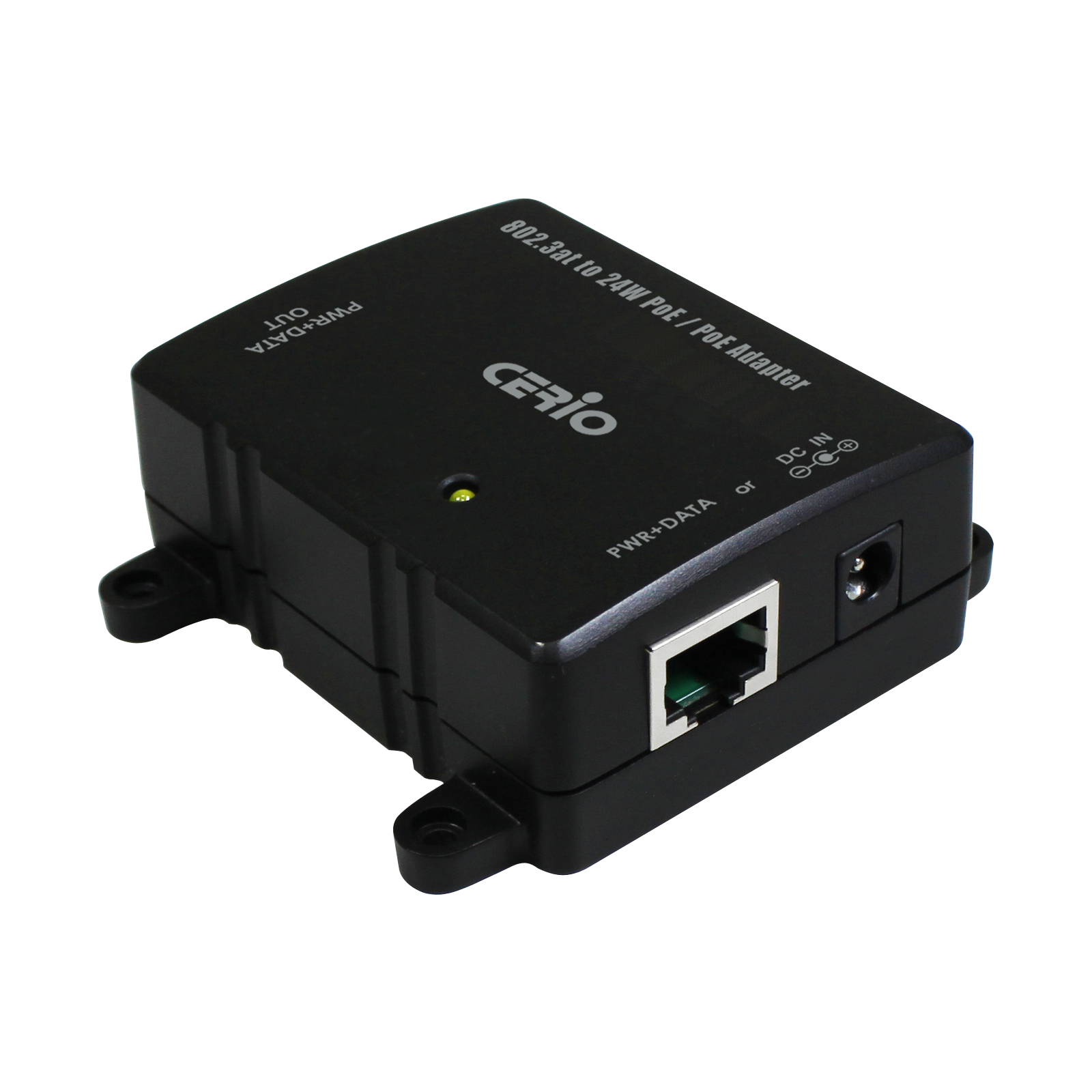

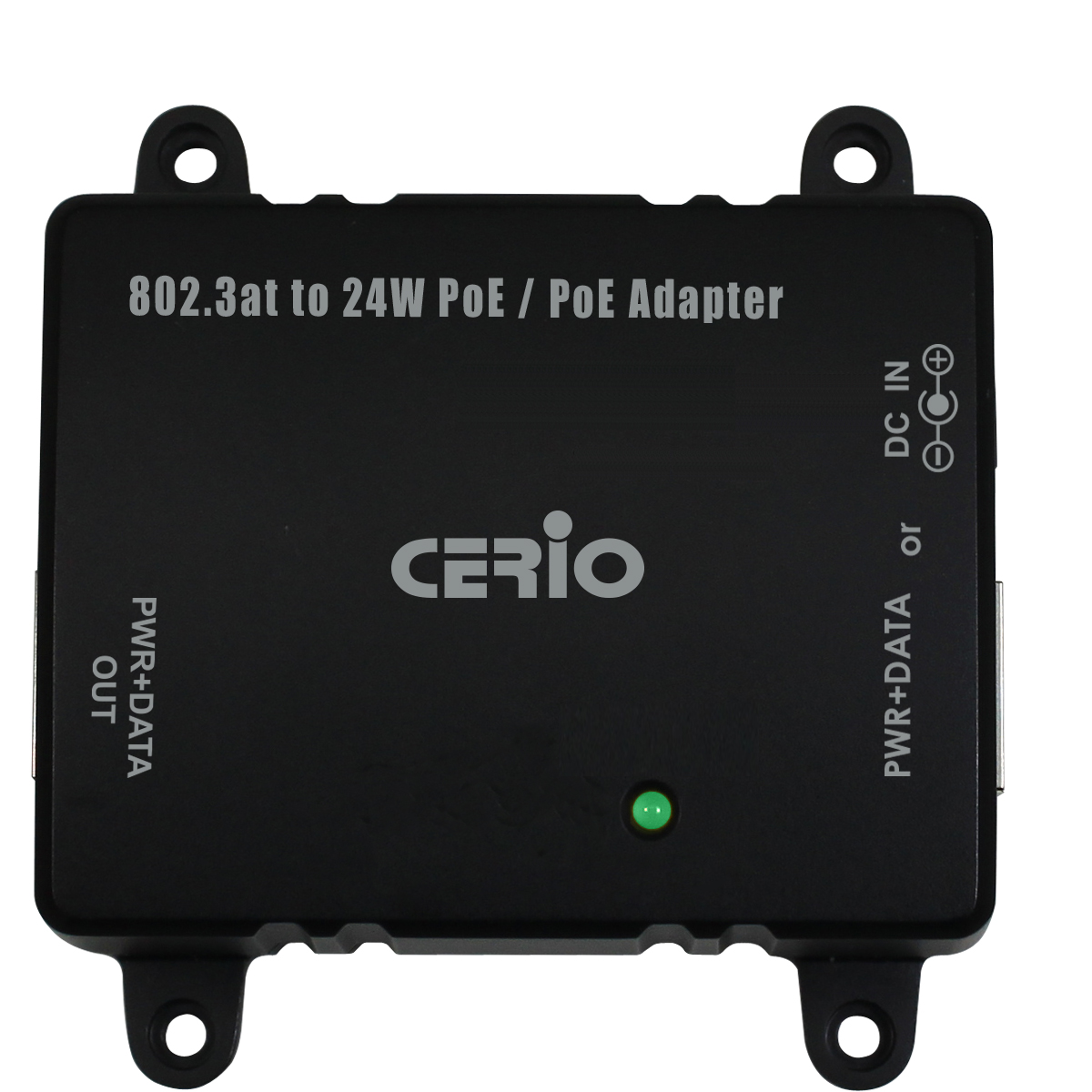

Exterior Installation

Size：73 * 78 * 23 mm

Weight：63g

POE-STG

Standards & Hardware Specifications
Standard IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Passive PoE  (24Volt)
Network Media 10BASE –T: UTP Cat. 3 or up
100BASE-TX : UTP Cat. 5 or up
1000BASE-T : UTP Cat. 5 or up
Data Transfer Rate 10/100/1000Mbps (Half-duplex),

20/200/2000Mbps (Full-duplex)
PoE Type Midspan / B-Type / (PIN 4/5 & 7/8)
Data PIN PIN 1/2&3/6 , 4/5&7/8
Power PIN 4/5+ 7/8


Environmental & Mechanical Characteristics
Max PoE Power 24Volt PoE (24 Watts) per port
Power Connector(Interface) 802.3af/at PoE Ethernet Power In or DC-Jack
Operating Temperature Ethernet In: 802.3af/at Power source equipment DC In: External 24Valt DC/1A Power
Input Voltage 5% to 90% non-condensing
LED Power unit x1
Operating Temperature 0° to 60° C
Storage Temperature -20° to 70° C
Storage Humidity 5% to 90% non-condensing
Dimension ( W x H x D ) 73 x 78 x 23mm
Form Factor Wall mounting
Weight ( g ) 61g
Case of material ABS 94V-0
Certifications CE, FCC, RoHs compatible
Contents :
POE-STG  Main Unit x 1
Power Adapter x 1
Quick Installation Guide x 1
Warranty Card x 1

Size：73 x 78 x 23mm
