TD-04BT

Multi Gigabit 4 Channel BT/Class6,7,8 PoE PD Test Loader(19″inch/1.5U Base)

CERIO TD-04BT is a PoE PD load testing solution that supports up to 4 channels with a maximum load power of 71W per channel. It fully complies with IEEE 802.3bt standard. It provides 1/2.5Gbps Multi Gigabit RJ45 Ethernet transmission capability and can perform physical power load tests on PoE PSE network devices. This is an essential physical verification tool of PoE devices for system integration providers, including whether the power capacity limit is sufficient, system installers check the equipment in advance to ensure smooth installation and reduce time and labor costs, and other troubleshooting verification. It is also suitable for verification and testing of PoE PSE network devices during production and is an indispensable tool for manufacturing or verifying PoE devices.

Highlight Features

  • Complying with IEEE 802.3bt standard.
  • Each independent channel supports Ethernet Pass Through data transmission.
  • Supports 4 PoE load testing channels with switch exchange, each channel supporting a maximum of 71W PoE load testing.
  • Supports 3 PD Class level : PD Class 6 (51Watt), Class 7 (62Watt) and Class 8 (71Watt), with LED display of the load level.
  • Supports both PoE End-span (Type-A) and Mid-span (Type-B) modes.
  • Supports PD Class level switching function, with DIP Switch allowing switching between PD Class 6 (51Watt), Class 7 (62Watt) and Class 8 (71Watt) levels.
  • High reliability metal casing design, supports 19″ rack installation.

Product Application

TheCERIO TD-04BT PoE PD Test Loader is specifically designed to test and verify PoE PSE equipment. It is mainly used to test the performance and reliability of PoE PSE network devices. This PoE PD Test Loader can be used in various scenarios, such as:

  • Testing and acceptance by contractors: With the popularity and widespread use of PoE, the system providers can perform pre-acceptance testing and even maintenance on equipment, becoming an essential tool for network administrators to test, verify, and accept.
  • Network environment testing : During network construction and debugging, using the PoE PD Test Loader to test PoE devices can ensure that operate normally, greatly reducing system construction and labor costs, and enhancing network security.
  • Production testing : During the production process of PoE PSE network devices, using the PoE PD Test Loader can conduct comprehensive testing to ensure performance and reliability meet customer requirements, improve production efficiency, optimize production processes, and reduce production costs.
  • Product development testing : Using the PoE PD Test Loader can help R&D staff accurate test results in a short time during product verification and testing.
  • Troubleshooting : When the PoE system fails, use PoE PD Test Loader to test equipment, which can help identify the cause of the failure and repair it, helping engineers to quickly troubleshoot and reduce time and labor costs.

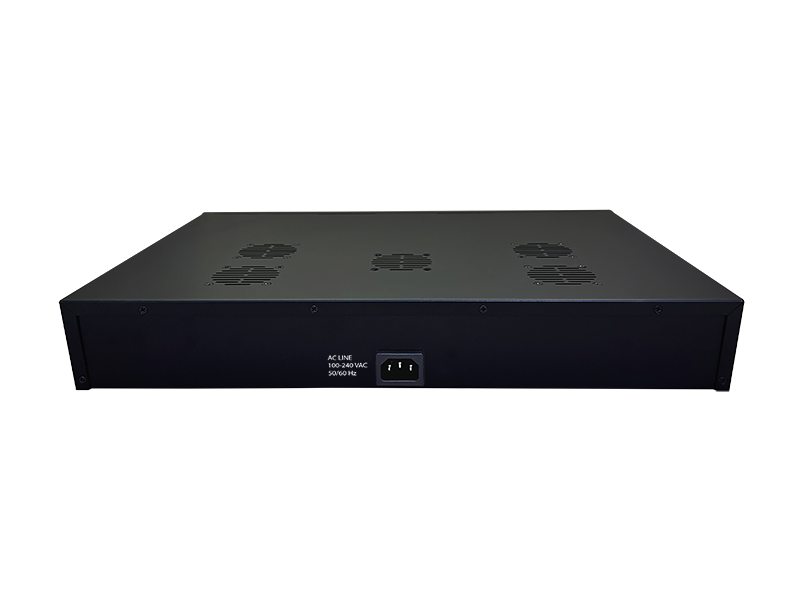

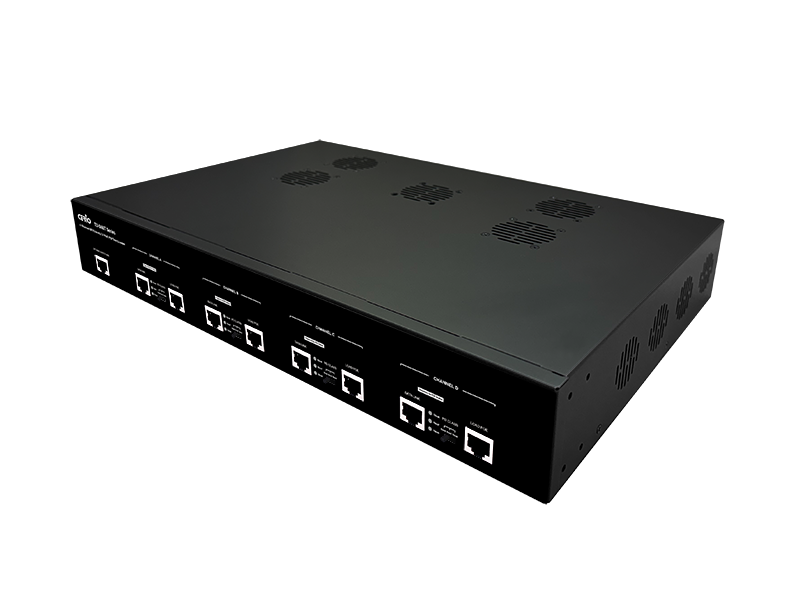

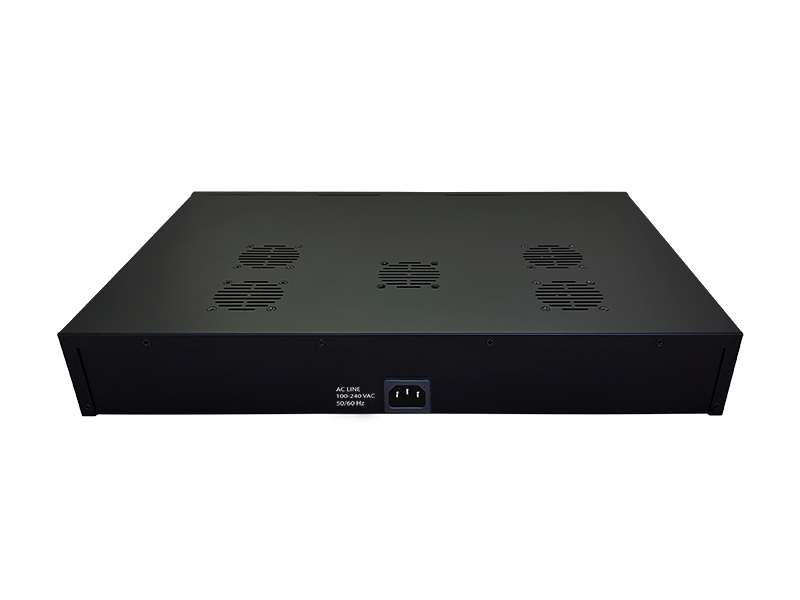

Hardware Overview



Standards & Hardware Specifications
Standard IEEE 802.3bt Power over Ethernet (PoE++)
Port Configuration 4 RJ45 Ethernet Pass Through Data Ports
4 RJ45 PoE PD Ports
1 RJ45 Switch Port (By optional)
PoE Type End-span (Type-A): PIN 1/2,3/6
Mid-span (Type-B): PIN 4/5,7/8
Data PIN PIN 1/2,3/6 & 4/5,7/8
Power PIN PIN 1/2,3/6 or 4/5,7/8 (Power + Data Pin)
Ethernet Connector RJ45 (LOAD POE) x 4
RJ45 (DATA LINK) x 4
DIP Switch All 4 test channels support DIP Switch, switchable PD Class (Class6, Class7, Class8) three levels
LED Class6/BT (51W) Output : Status x 4 Sets
Class7/BT (62W) Output : Status x 4 Sets
Class8/BT (71W) Output : Status x 4 Sets
Environmental & Mechanical Characteristics
PSE Test Applicable Type Active PoE IEEE 802.3bt
Passive POE
PSE Input Voltage 44~57V
POE Power Output 51 +/- 1W
62 +/- 1W
71 +/- 1W
(Single Signature PD)/Max. Power Class 6 : 51W
Class 7 : 62W
Class 8 : 71W
Operating Temperature 0° to 40° C
Storage Temperature -40° to 70° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 10% to 90% non-condensing
Dimension ( W x H x D ) 441 x 281 x 66 mm
Weight ( kg ) TBD
Production Location TW
Package Contents
TD-04BT Main Unit x1
Quick Installation Guide Booklet x1
Power Cord x1
19” Rack Mount Brackets x1
Warranty Card x1
  •
