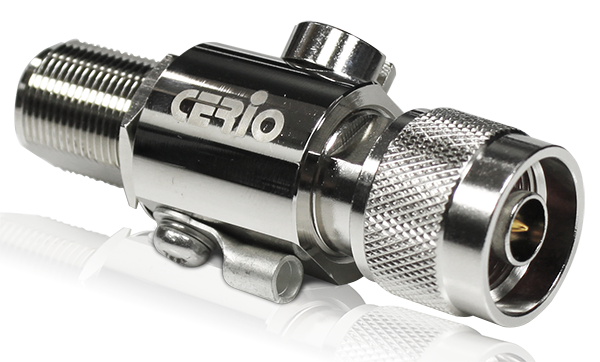

2.4GHz / 5GHz / 6GHz N-Female to N-Male Lightning Protector
The CERIO LP-300 N-Jack (female) to N-Jack (male) is a lightning surge protector for 2.4GHz, 5GHz, and 6GHz networks. With power dissipation as low as 0.18dB (2.4GHz), 0.26dB (5GHz), and 0.32dB (6GHz), it can be connected to 2.4GHz, 5GHz, and 6GHz outdoor antennas and network devices (APs, routers, and bridges).
The CERIO LP-300 Lightning Protector can be conveniently deployed in many wireless long distance applications, including Antennas, Cables and other Accessory for 2.4G / 5G Dual Band outdoor wireless applications The CERO LP-300 Lightning Protector can be conveniently deployed in many wireless long distance applications, including Antennas, Cables and other Accessory for 2.4G / 5G Dual Band outdoor wireless applications. The CERO LP-300 can be in operation from 0~6.5 GHz, and also be applied to the Wi-Fi 2.4GHz 11Nbg mode and 5Ghz 11Na Mode. CERIO LP-300 Lightning Protector will pass DC, therefore it is suitable for applications where DC is carried through the RF cable such as the removal of an unsafe Surge Attack.
Highlight Features
- 2.4GHz / 5GHz / 6GHz Frequency range
- RF Low Loss
- @ 2.4GHz : Total Loss 0.15dB
- @5GHz : Total Loss 0.26 dBB
- @6GHz : Total Loss 0.32 dB
| Specifications | |
| Connecter Type | N-Jack(female) to N-Jack(male) |
| Frequency | 0~7 GHz |
| V.S.W.R : | 1 : 3 ( Max ) |
| Impedanec | 50 Ohms |
| Gas Tube DC | 230V ± 20% |
| Gas Tube Impulse Resistance | ≧ 10000 Ohms |
| AC Current | 10A /1s , 30A/ 9 cycles（@50Hz） |
| Surge Current | 10KA (@8/20μs) |
| Operating Temperature | -50˚C – + 90˚C |
| Storage Temperature | -50˚C – + 90˚C |
| Operating Humidity | 100% Non- Condensing |

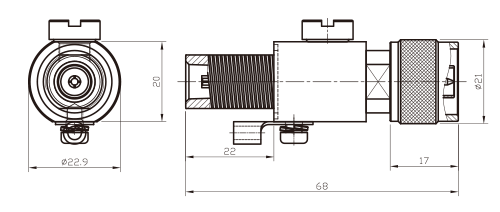

| Dimension ( W x H x D ) | 68 * 30 * 22.9 (L*H *W) mm |
| Weight | 122g |
| Production Location | TW |
| Package Contents | |
| Content | LP-300 Main unit |
