OW-PKUR

Uniaxial Rotate Stainless Bracket Set (Wall Mount / Hose Clamp / U Bolt)
CERIO OW-PKUR Outdoor Uniaxial Rotate Stainless Bracket Set is designed for use with outdoor antennas and outdoor AP that have corresponding designs. It supports adjustable wall and pole mounting installation, specifically tailored for outdoor installation equipment and environmental deployments. When used with this bracket for wall or pole mounting, it provides defined directional orientation and adjustable installation. Its stainless steel design is suitable for outdoor applications, protect against weather damage (sun/water/wind). It is an ideal for both indoor and outdoor application.

CERIO OW-PKUR Outdoor Uniaxial Rotate Stainless Bracket Set is designed for use with outdoor antennas and outdoor AP that have corresponding designs. It supports adjustable wall and pole mounting installation, specifically tailored for outdoor installation equipment and environmental deployments. When used with this bracket for wall or pole mounting, it provides defined directional orientation and adjustable installation. Its stainless steel design is suitable for outdoor applications, protect against weather damage (sun/water/wind). It is an ideal for both indoor and outdoor application.

Highlight Features

  • Adjustable wall/pole mounting applications.
  • Durable stainless steel anti-corrosion and anti-rust material design./span>
  • Simple installation and versatile and practical structural design.
  • Waterproof and stainless steel materials suitable for all climate applications.
  • Supports 45° Vertically up and down adjustable (from 0° to 45°).
  • Supports maximum weight load of 5kg.
  • Beaufort scale 17 wind load test certificated.

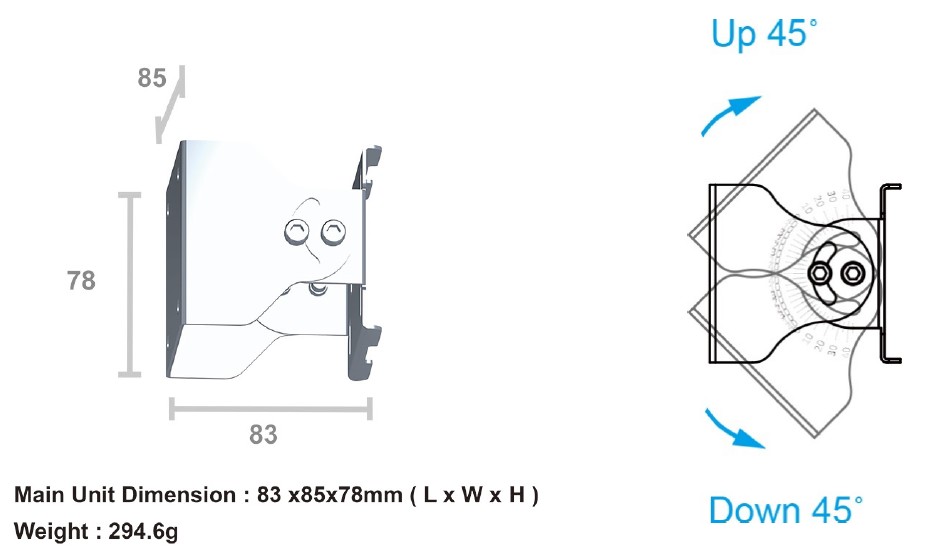

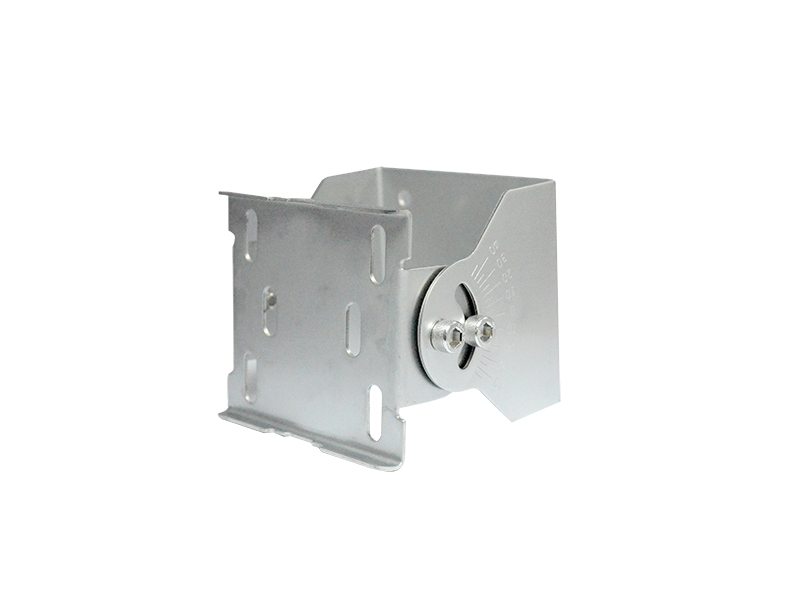

Hardware Overview & Dimension



Product Application

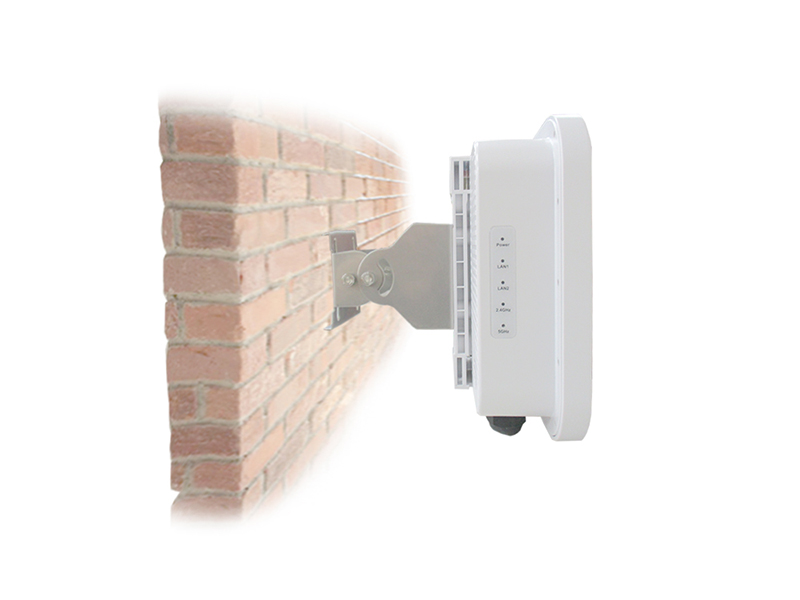

 Wall Mounting

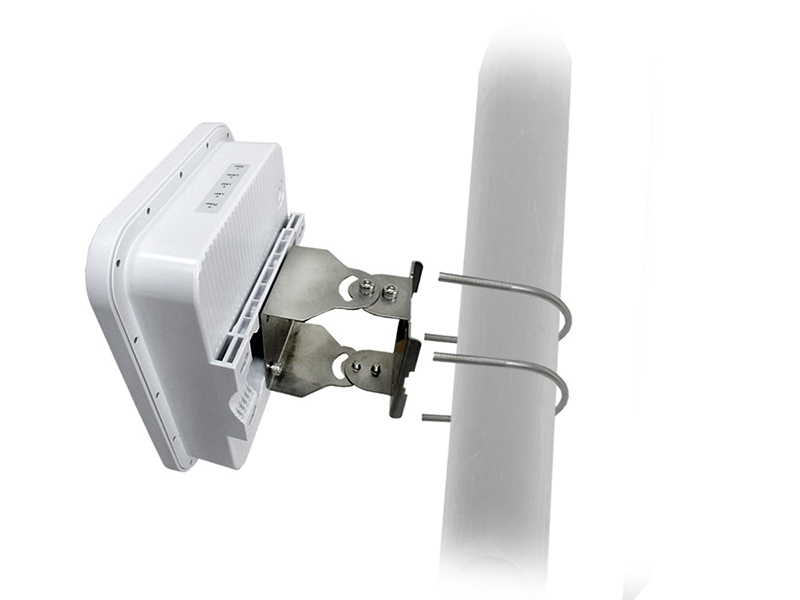

 Pole Mounting

Specifications
Hardware
Material SUS304 Stainless Steel
Device Type Support Supports Pole/Wall Mounting
Maximum wind resistance velocity Beaufort scale 17 wind load test certificated
Maximum Weight Support Supports Max weight of 5kg (After the wall is locked or the pole is locked and fixed)
Adjustable Design 45˚ Vertical up and down Adjustment Range (0˚ to 45˚)
Operating Temperature -50˚C – + 85˚C
Storage Temperature -50˚C – + 85˚C
Humidity 5~90% maximum (non-condensing)
 Dimensions Main Unit : 81 x 85 x 78mm ( L x W x H )

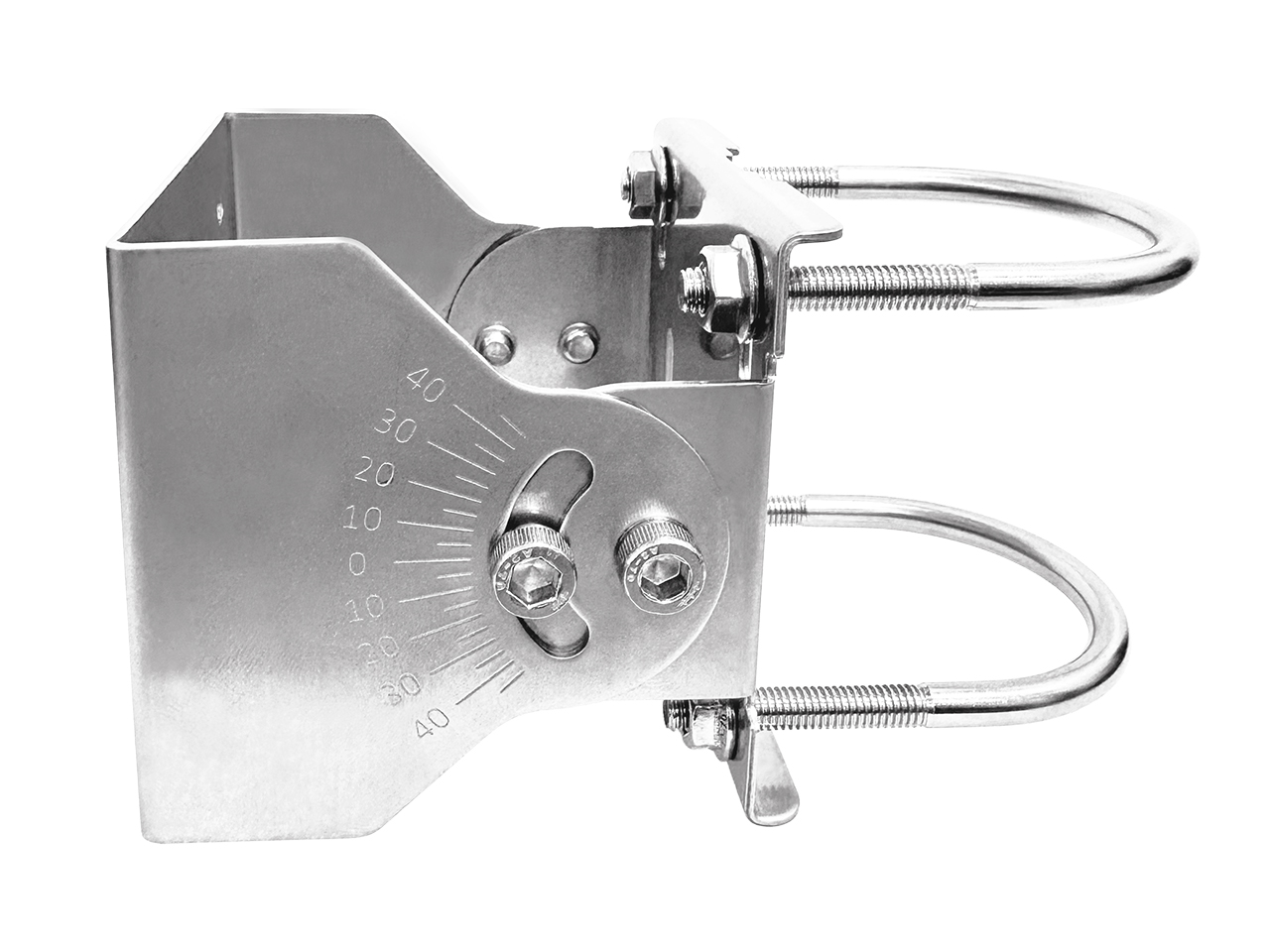

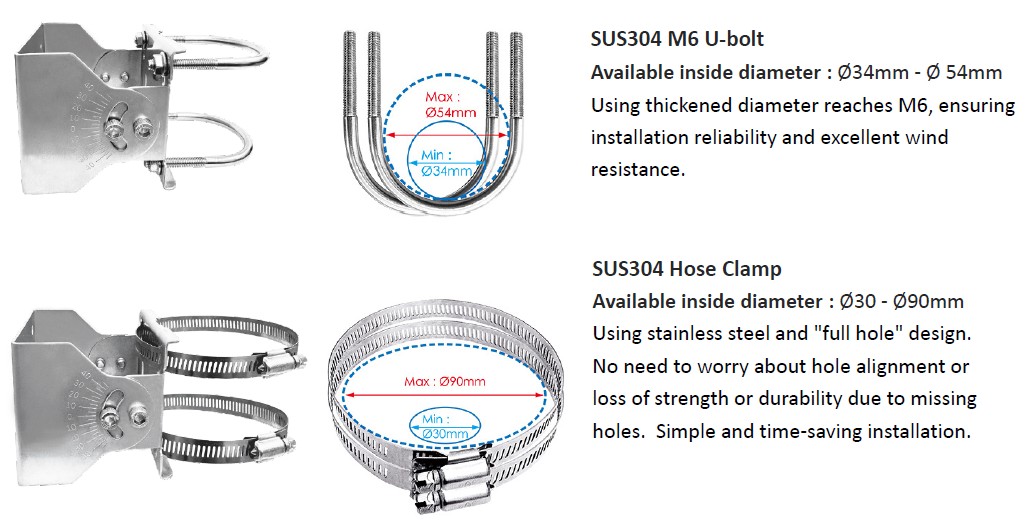

Adjustable bracket match SUS304 M6 U-bolt : Available inside diameter : Ø34mm – Ø 54mm

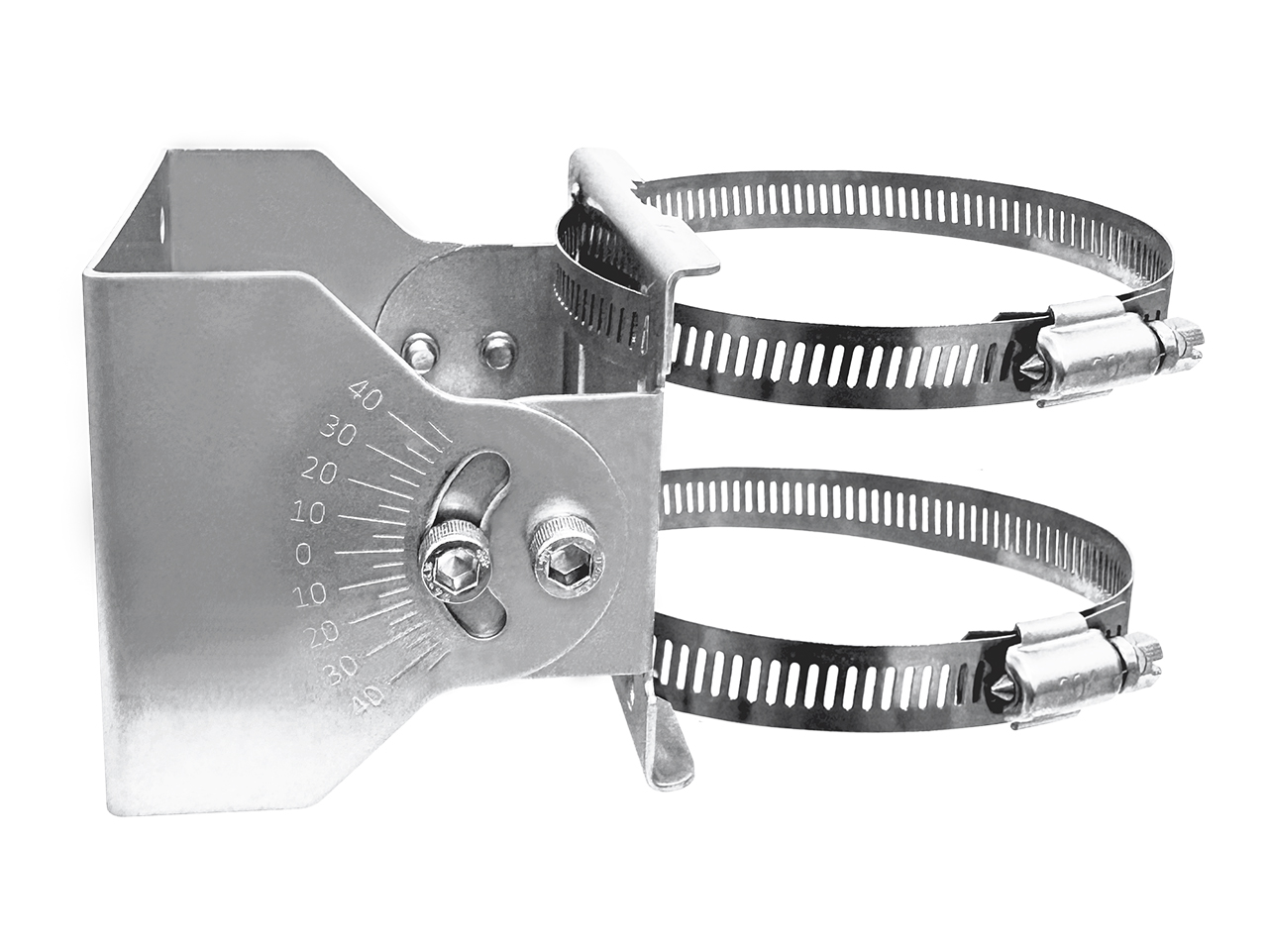

Adjustable bracket match SUS304 Hose Clamp : Available inside diameter : Ø30 – Ø90mm
Weight 294.6g
Production Location TW



Package Contents
SUS304 Uni-axis bracket with screw set
(OW-PKUR)
x1
SUS304 Screw Set x1
SUS304 M6 U-bolt  x2
SUS304 Hose Clamp  x2
Adjustment/tightening wrench tool  x2
