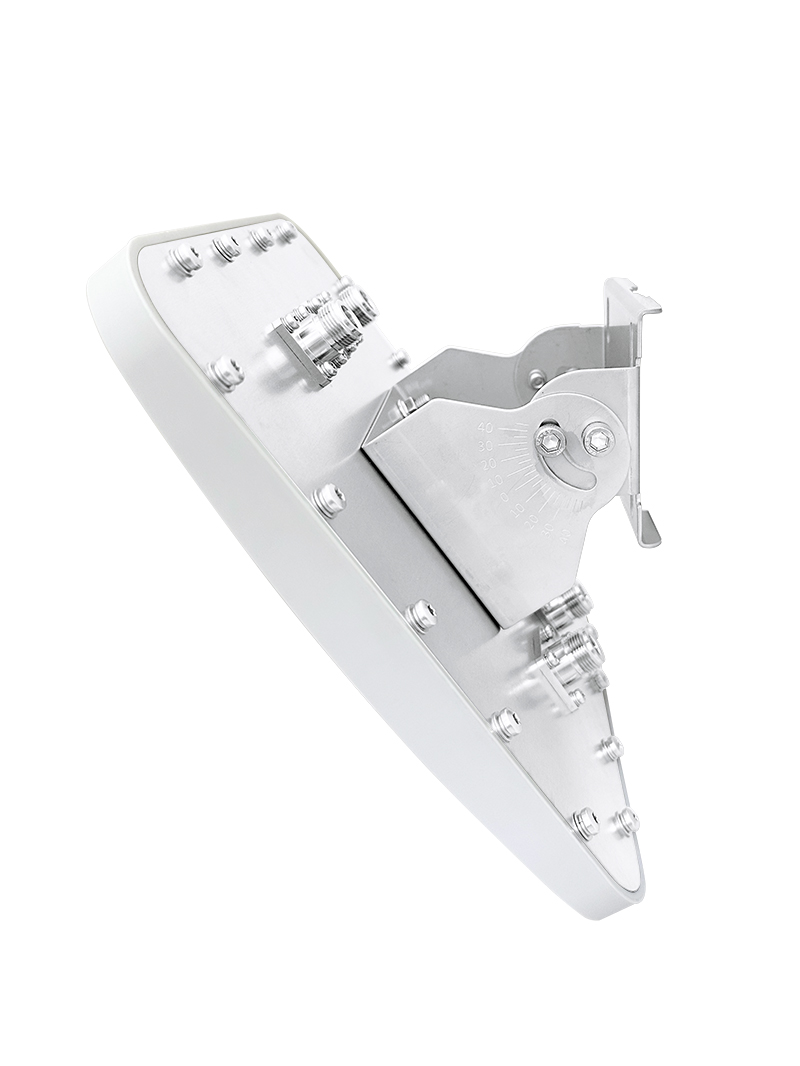

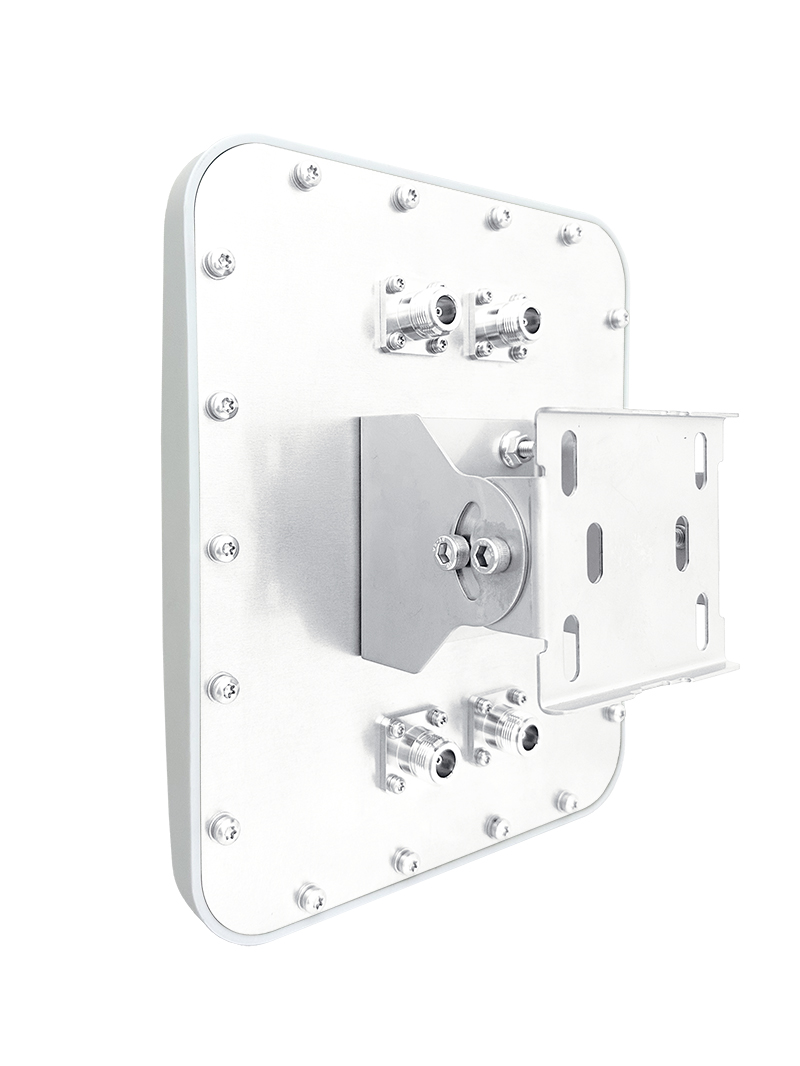

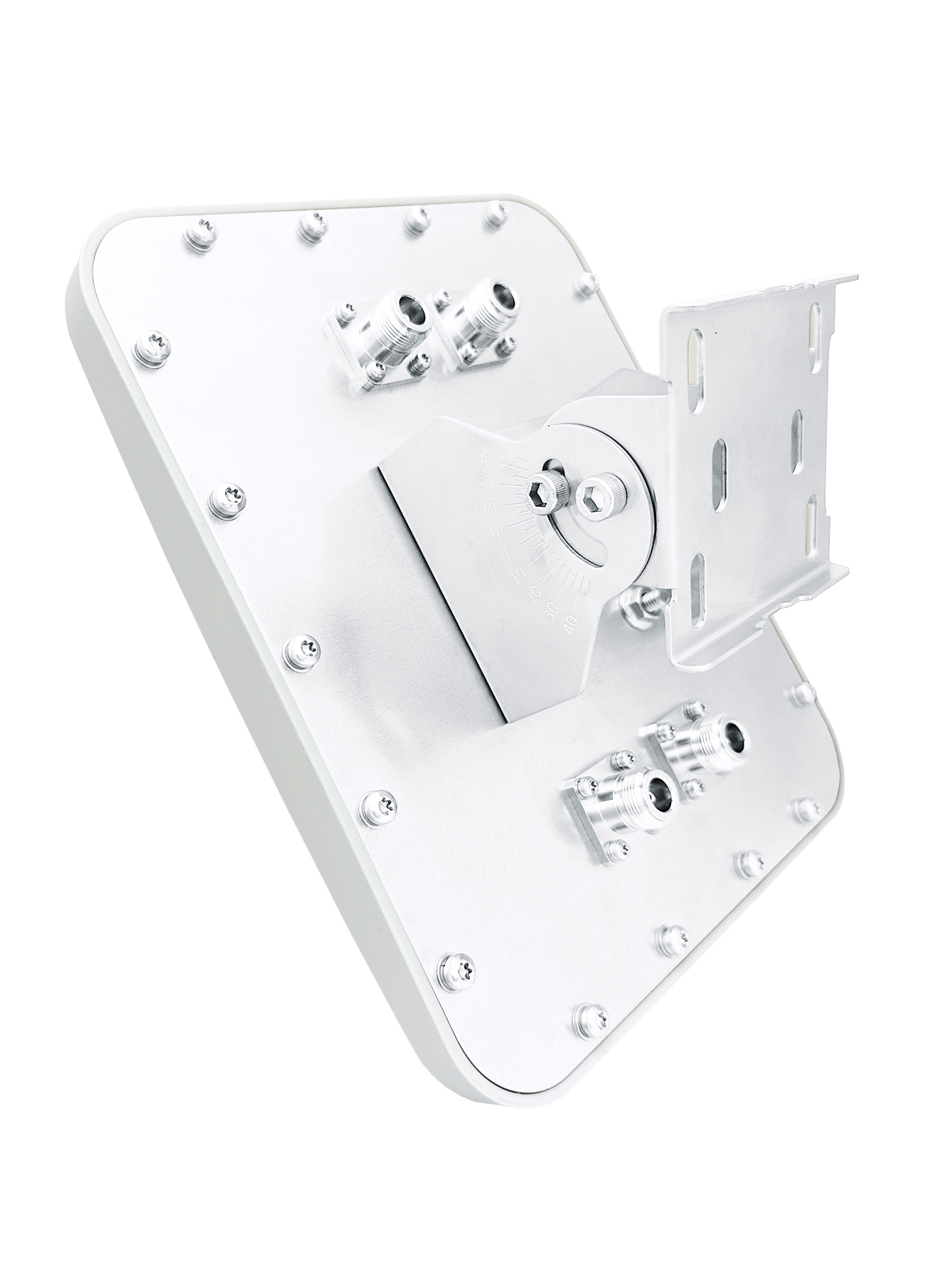

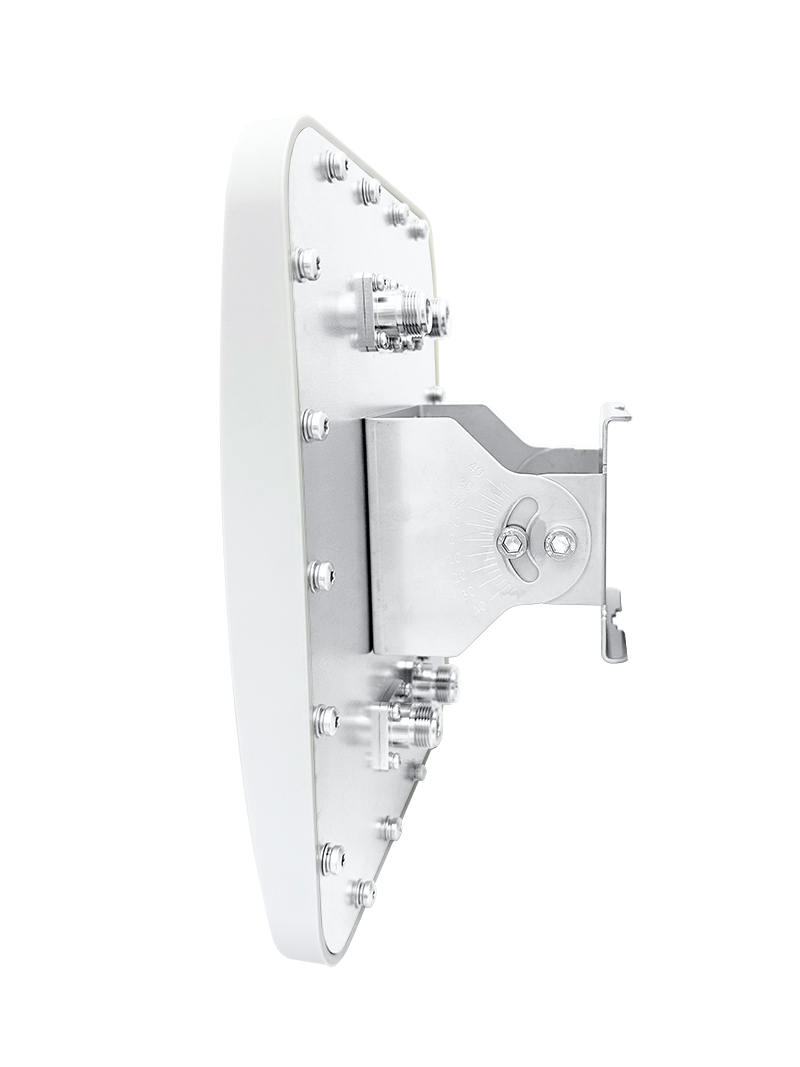

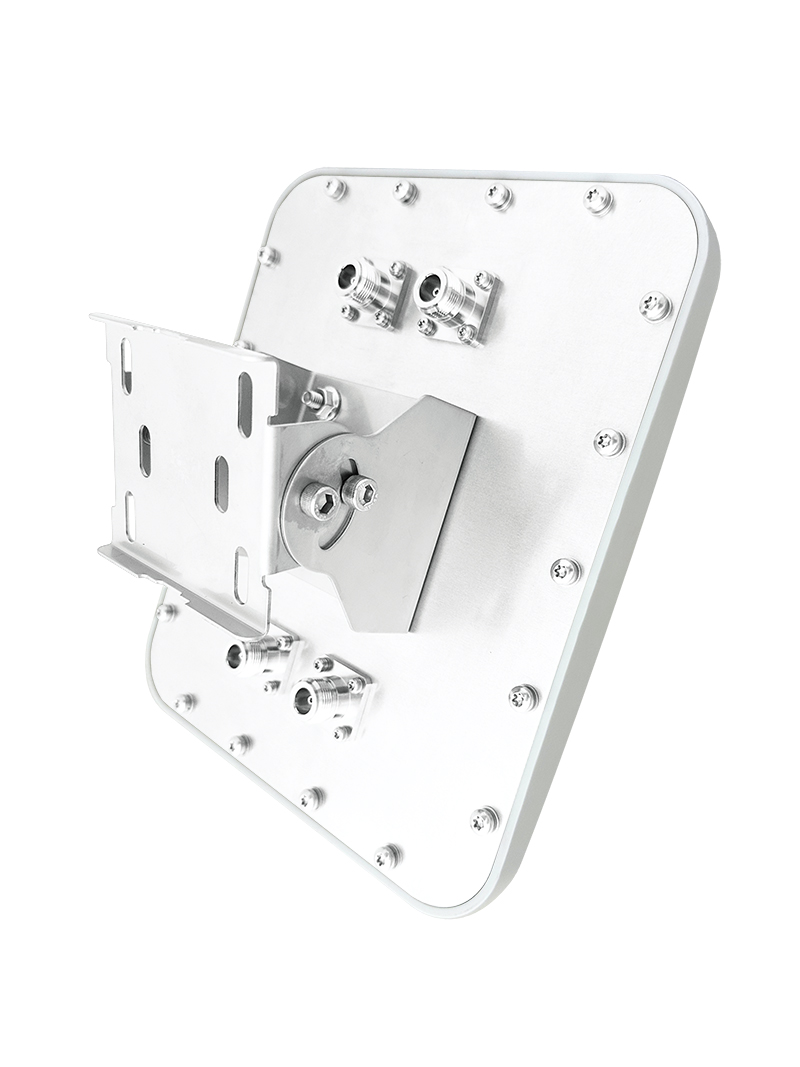

ANT-15AQ (5159)
5GHz 4×4 Outdoor IP68 Wide Range Directional 15dBi Panel Pole/Wall Mount Antenna
The CERIO ANT-15AQ 5.1-5.9GHz 4×4 Outdoor Wide Range Directional 15dBi Panel Antenna supports 5.1 to 5.9 GHz and provides superb performance in Wi-Fi environment. It supports pole and wall mounting installation and constructed with highly UV-resistant PC material (PC-122U) combined with aluminum alloy to achieve a high-sealing IP68 waterproof design. All materials are considered good in water tightness and prevention of rust characteristics.
The CERIO ANT-15AQ 5.1-5.9GHz 4×4 Outdoor Wide Range Directional 15dBi Panel Antenna supports 5.1 to 5.9 GHz and provides superb performance in Wi-Fi environment. It supports pole and wall mounting installation and constructed with highly UV-resistant PC material (PC-122U) combined with aluminum alloy to achieve a high-sealing IP68 waterproof design. All materials are considered good in water tightness and prevention of rust characteristics.
The CERIO ANT-15AQ outdoor directional Dual Polarization Panel Antenna provides polarized dual-signal characteristics, allowing multiple antenna applications for WiFi 4T4R MIMO. The user only uses one set of ANT-15AQ Dual Polarization antenna with 4 sets of N-Type connectors for connection with low-attenuation RF cables and WiFi AP to complete 4T4R MIMO applications that require multiple antennas. It can also be used as a 2×2 MIMO stacking application for two MESH backbone links, allowing users to enjoy a perfect solution for faster, longer distances with 4T4R MIMO multi-radio reception and wireless transmission.
Highlight Features
- Supports 5.1~5.9GHz
- High Gain : 15dBi
- Vertical installation : Horizontal beam 35°, Vertical beam 65°
- Horizontal installation : Horizontal beam 65°, Vertical beam 35°
- Wide coverage up to 65°, in contrast to the limitations of narrow-angle directional antennas, effectively enhances the WiFi signal directionality. Solve the difficult long-distance transmission problem of 360° Omni antennas.
- High performance.
- IP68 waterproof protection rating, suitable for applications in various weather conditions.
- Beaufort scale 17 wind load test certificated.
- Polarized dual-gender design and supports two NType (Female) connectors.
- Packaging includes SUS304 stainless steel single-axis adjustable mounting bracket (OW-PKUR). (Please refer to the detailed specifications of OW-PKUR)
- High-sealing structure with UV resistance, hightemperature durability, combines aluminum alloy and stainless steel materials, ensuring weather resistance and extended lifespan.

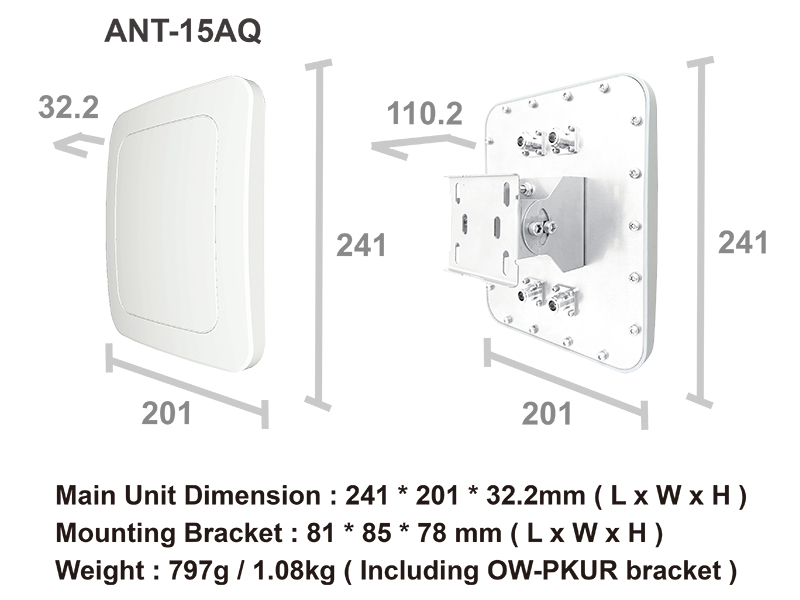

Hardware Overview / Dimension

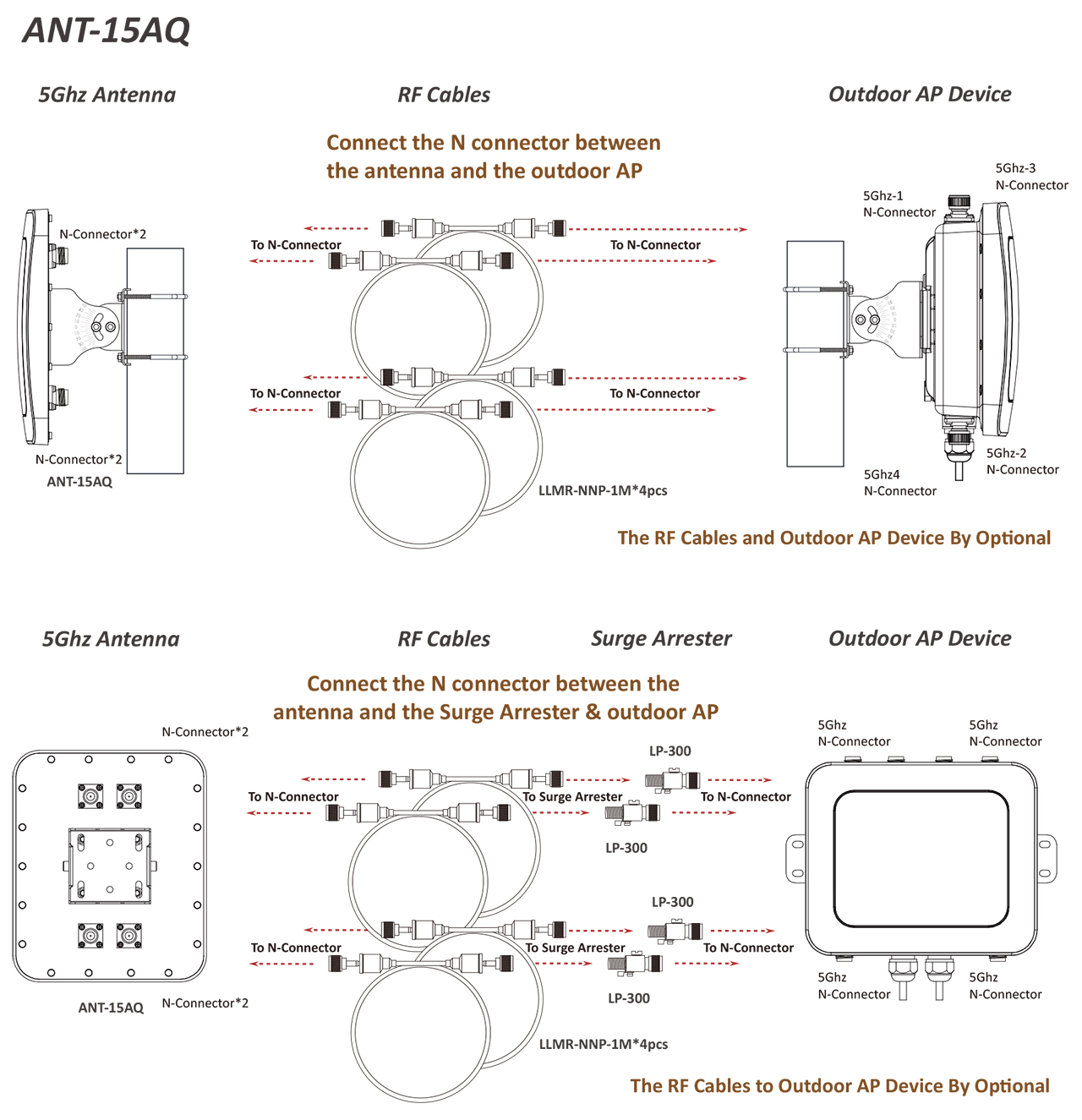

Adjustable Mounting Bracket Installation (OW-PKUR)
Product Application

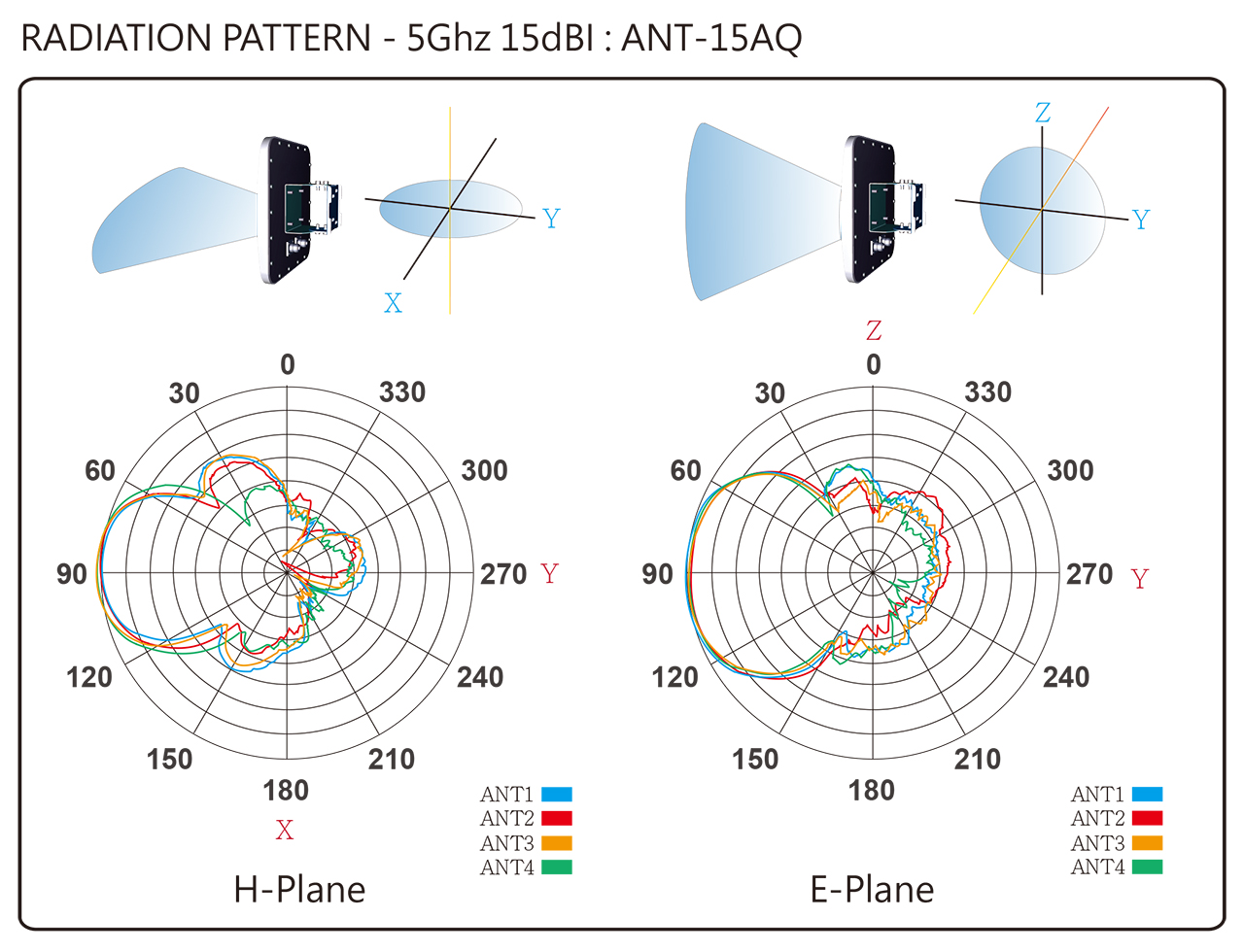

Antenna Radiation Pattern

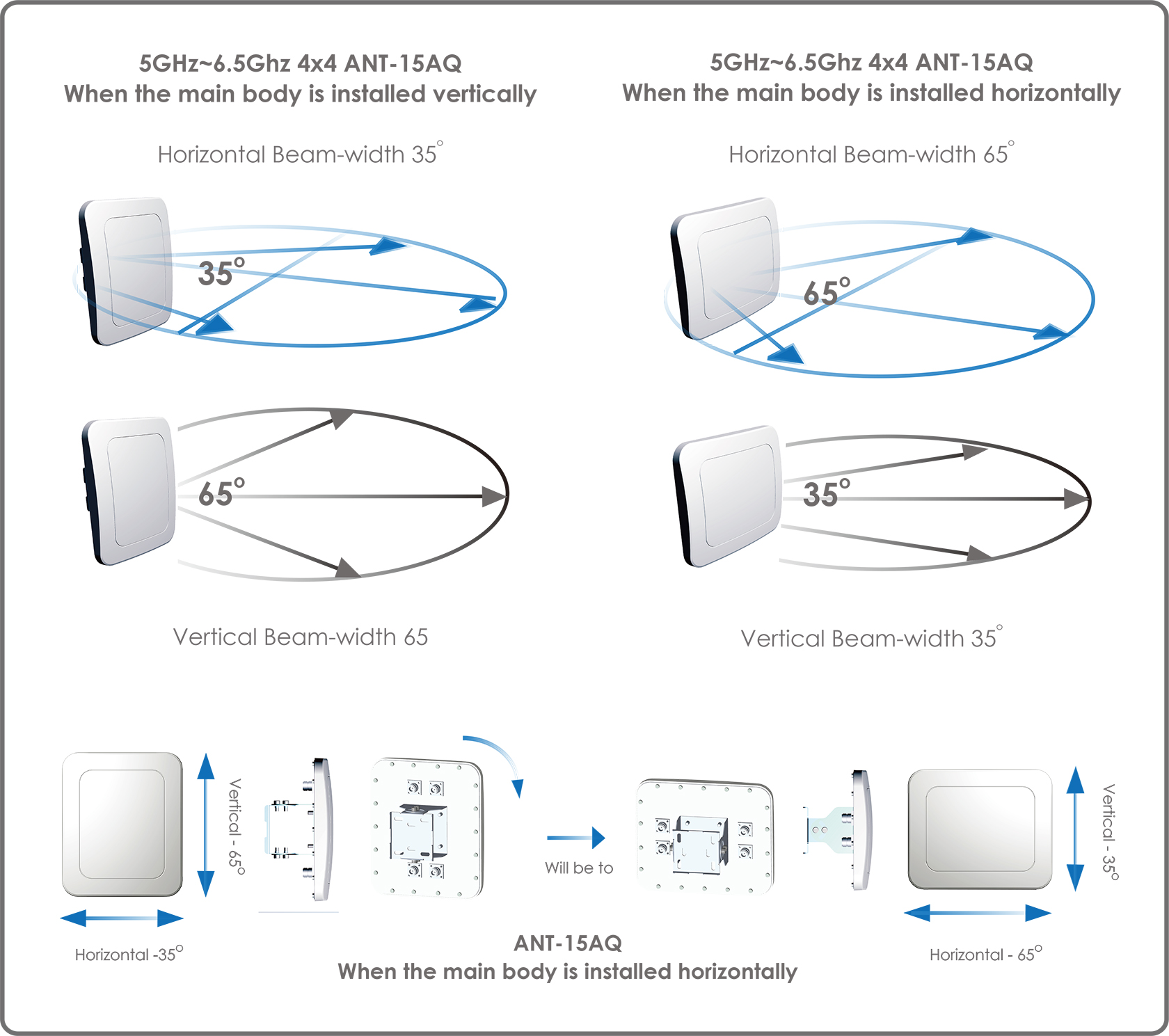

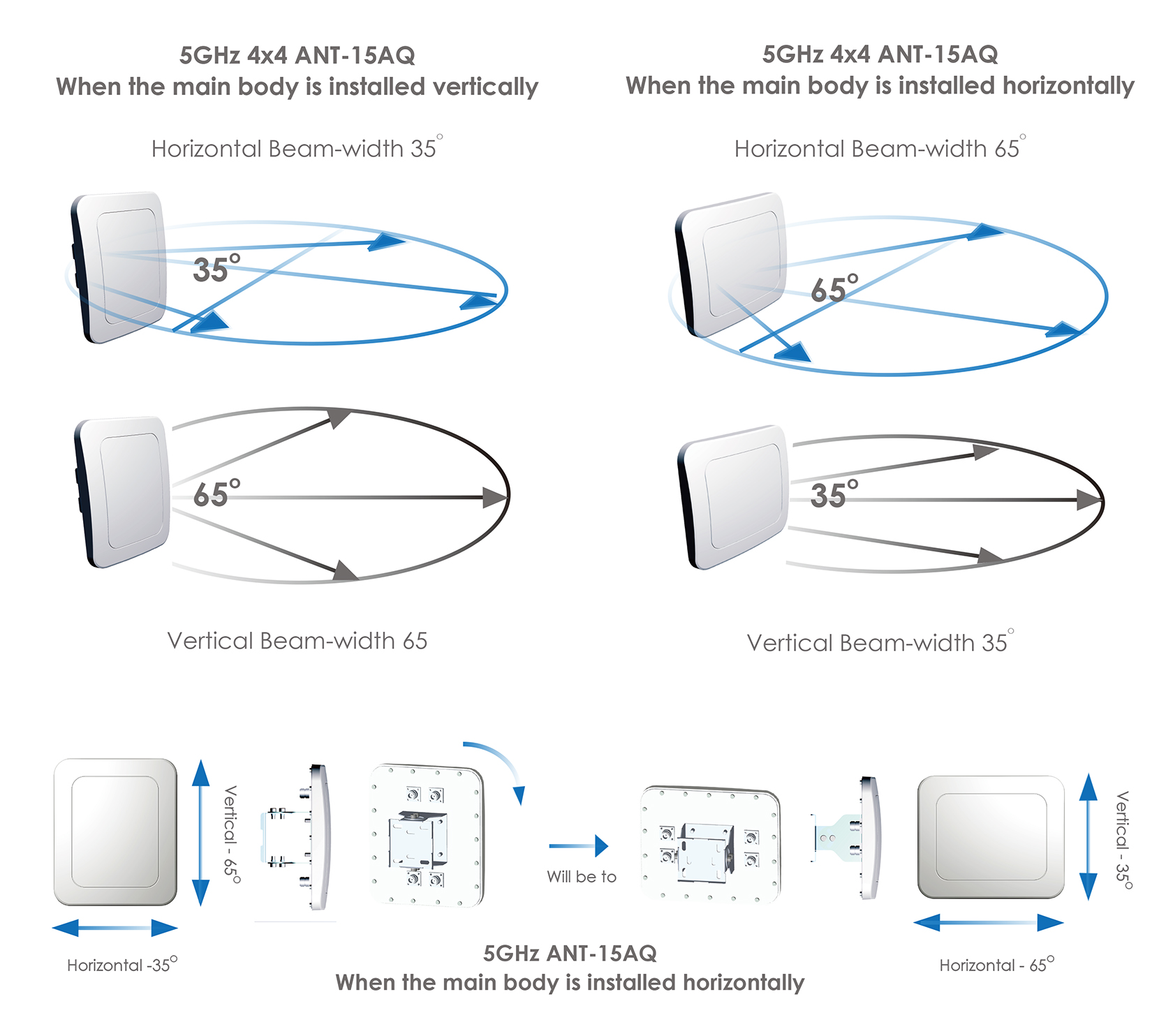

Antenna Angle and Coverage
| Specifications | |
| Antenna Type | Outdoor Directional Panel Antenna (Horizontally-Polarized) Dual Polarization Antenna |
| Frequency Range | 5.1 ~ 5.9GHz |
| Wireless Specification | Wireless 4T4R MIMO |
| Antenna Gain | 15 dBi |
| V.S.W.R | ≦1.5 |
| Beam Width | Vertical installation : Horizontal beam 35°, Vertical beam 65° Horizontal installation : Horizontal beam 65°, Vertical beam 35° |
| Polarization | Vertical & Horizontal (Linear) |
| Input Impedance | 50 Ohms |
| Materials | UV-resistant PC-122U + 2t aluminum alloy |
| Connector | N-Type Female |
| Form Factor | Supports Wall / Pole Mounting Installation |
| Adjustable range(with OW-PKUR mounting bracket) | Adjustable bracket match SUS304 M6 U-bolt Available inside diameter : Ø34mm – Ø 54mm Adjustable bracket match SUS304 Hose Clamp Available inside diameter : Ø30 – Ø90mm Horizontal column hanging axis: 360°horizontal rotation Up and down angle: Maximum upward 40°, downward 40° |
| Operation Temperature | -50˚C – + 85˚C |
| Storage Temperature | -50˚C – + 85˚C |
| Humidity | 5~90% maximum (non-condensing) |
| IP Rating | IP68 Rating (waterproof approval) |
| Maximum Wind Resistance Velocity | Beaufort scale 17 wind load test certificated |
| Dimension | Antenna: 201*241*32.2 (L x W x H)mm Mounting bracket: 83*85*78 (L x W x H)mm |
| Weight | 797g |
| Production Location | TW |
| Certifications | RoHS Compliant |
| Package Contents | |
| ANT-15AQ (5159) Main Unit | x1 |
| Adjustable Pole & Wall Mounting Kit(OW-PKUR) | x1 |
| Quick Installation Guide (Chinese/English) | x2 |
| Warranty Card | x1 |

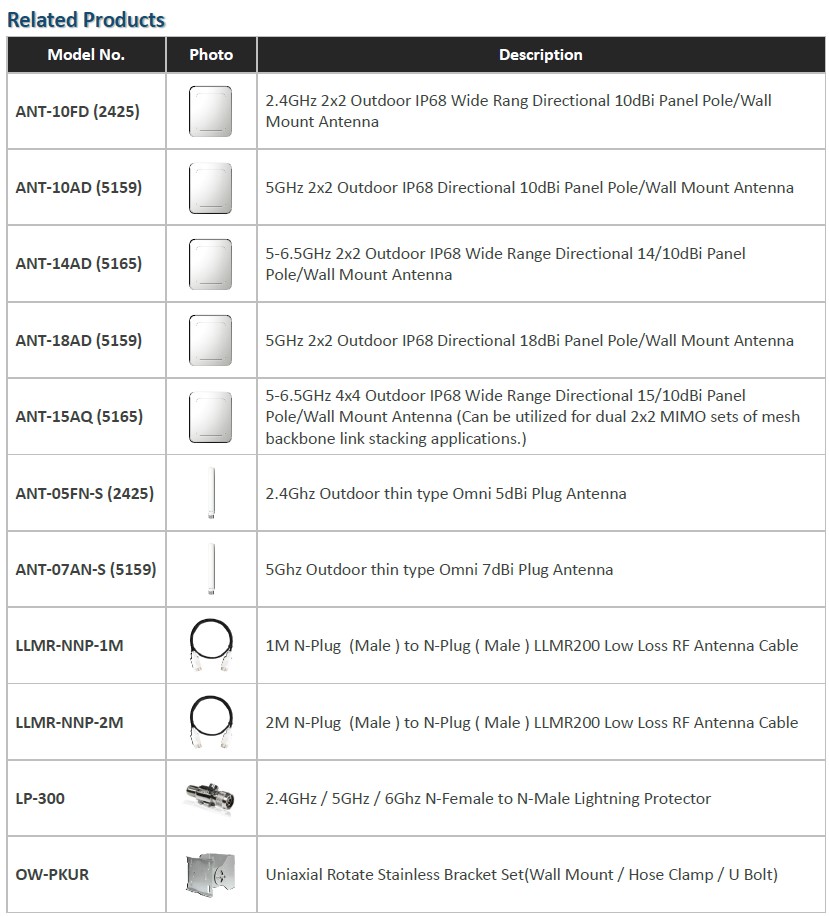

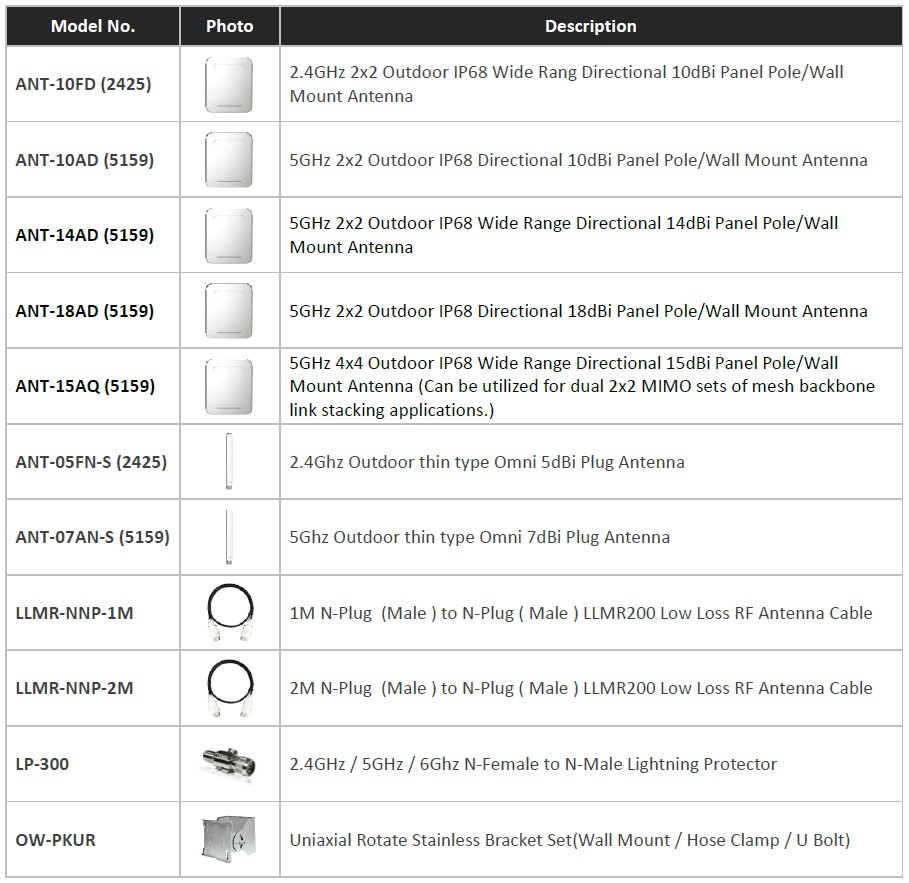

Related Products
