ANT-10AD
5GHz 2×2 Outdoor IP68 Directional 10dBi Panel Pole/Wall Mount Antenna
The CERIO ANT-10AD 5GHz 2×2 Outdoor Directional 10dBi Panel Antenna supports 5.1 to 5.9 GHz and provides superb performance in IEEE 802.11a/an/ac/ax Wi-Fi environment. It supports pole and wall mounting installation and constructed with highly UV-resistant PC material (PC-122U) combined with aluminum alloy to achieve a high-sealing IP68 waterproof design. All materials are considered good in water tightness and prevention of rust characteristics.
The CERIO ANT-10AD 5GHz 2×2 Outdoor Directional 10dBi Panel Antenna supports 5.1 to 5.9 GHz and provides superb performance in IEEE 802.11a/an/ac/ax Wi-Fi environment. It supports pole and wall mounting installation and constructed with highly UV-resistant PC material (PC-122U) combined with aluminum alloy to achieve a high-sealing IP68 waterproof design. All materials are considered good in water tightness and prevention of rust characteristics.
The ANT-10AD 5GHz 2×2 outdoor directional Dual Polarization Panel Antenna provides polarized dualsignal characteristics, allowing multiple antenna applications for 11ac/ax 2T2R MIMO. The user only uses one set of ANT-10AD Dual Polarization antenna with 2 sets of N-Type connectors for connection with low-attenuation RF cables and WiFi AP to complete 11ac/ax 2T2R MIMO applications that require multiple antennas. The perfect solution for faster, longer distances with 11ac/ax 2T2R MIMO multi-radio reception and wireless transmission.
Highlight Features
- Supports 5Ghz 5.1~5.9Ghz IEEE 802.11a/an/ac/ax.
- High Gain: 10dBi.
- Vertical installation:Horizontal beam 35°, Vertical beam 30°
- Horizontal installation:Horizontal beam 30°, Vertical beam 35°
- High performance.
- IP68 waterproof protection rating, suitable for applications in various weather conditions.
- Beaufort scale 17 wind load test certificated.
- Polarized dual-gender design and supports two NType (Female) connectors.
- Packaging includes SUS304 stainless steel single-axis adjustable mounting bracket (OW-PKUR). (Please refer to the detailed specifications of OW-PKUR)
- High-sealing structure with UV resistance, hightemperature durability, combines aluminum alloy and stainless steel materials, ensuring weather resistance and extended lifespan.

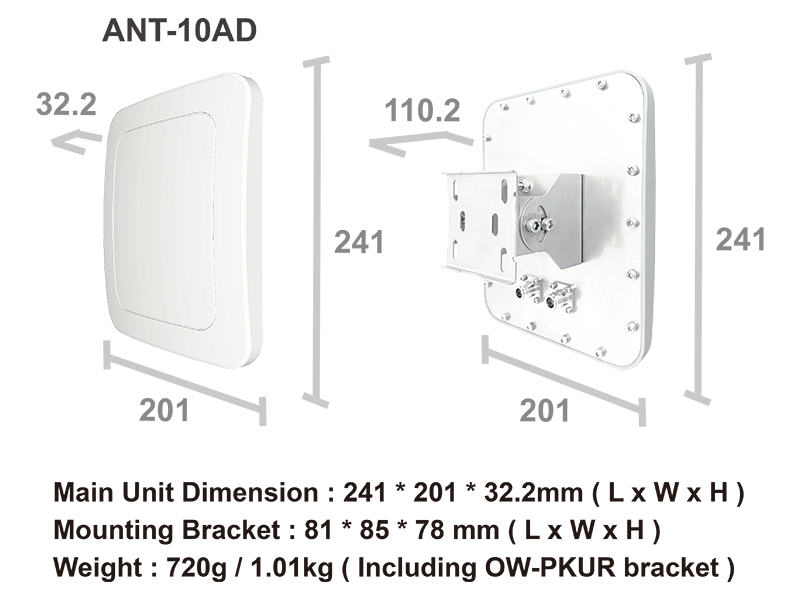

Hardware Overview / Dimension

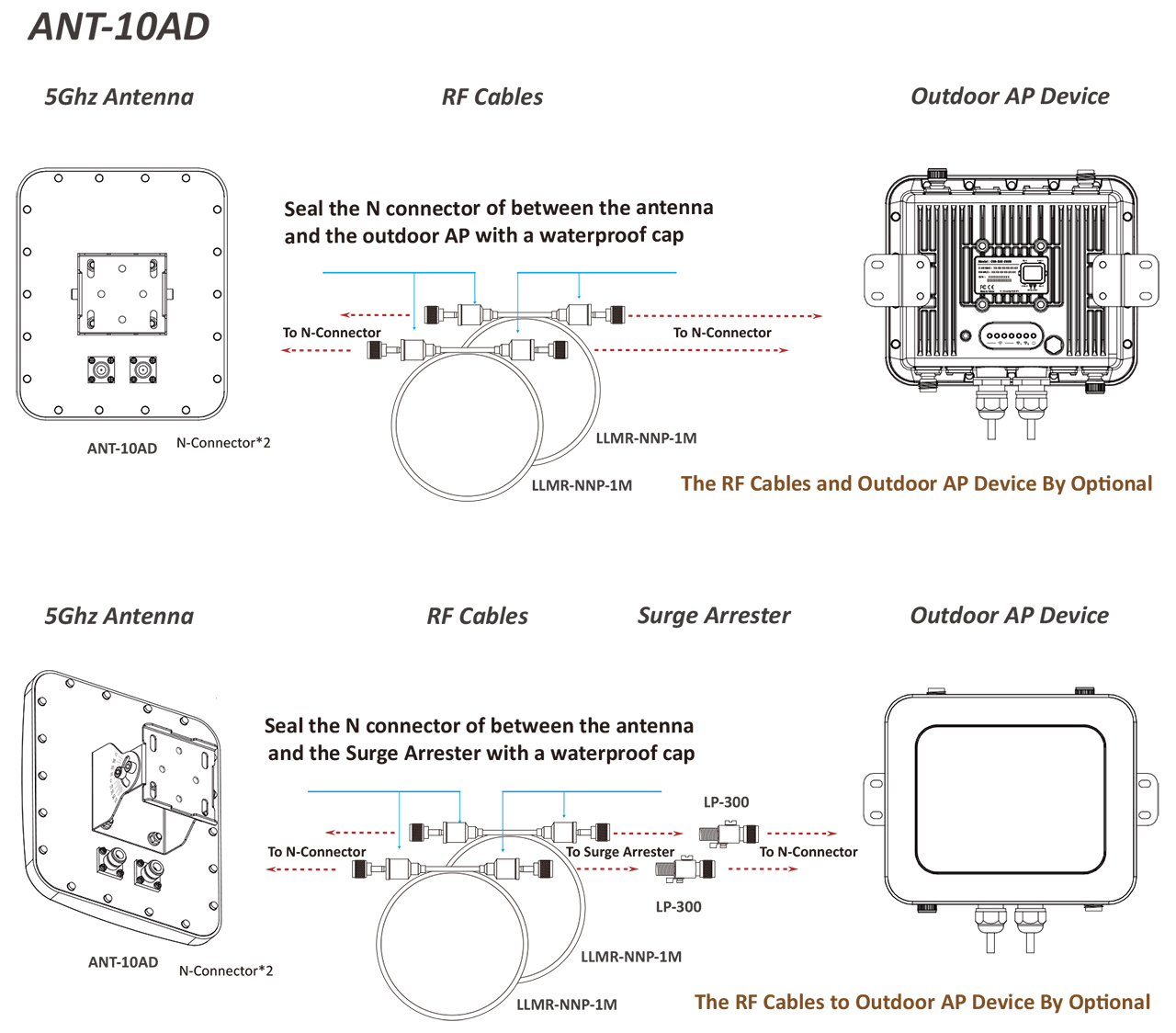

Adjustable Mounting Bracket Installation (OW-PKUR)

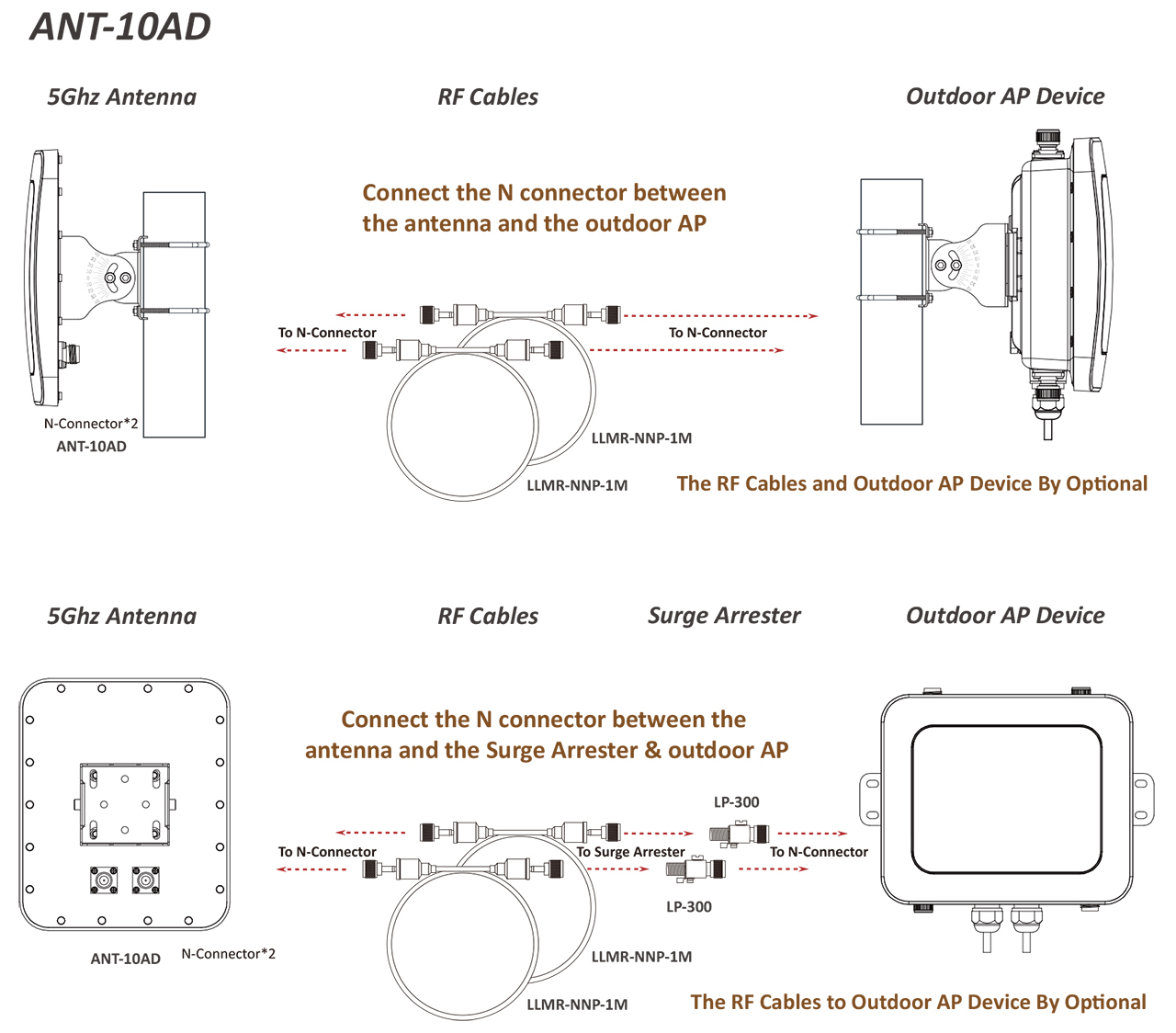

Product Application

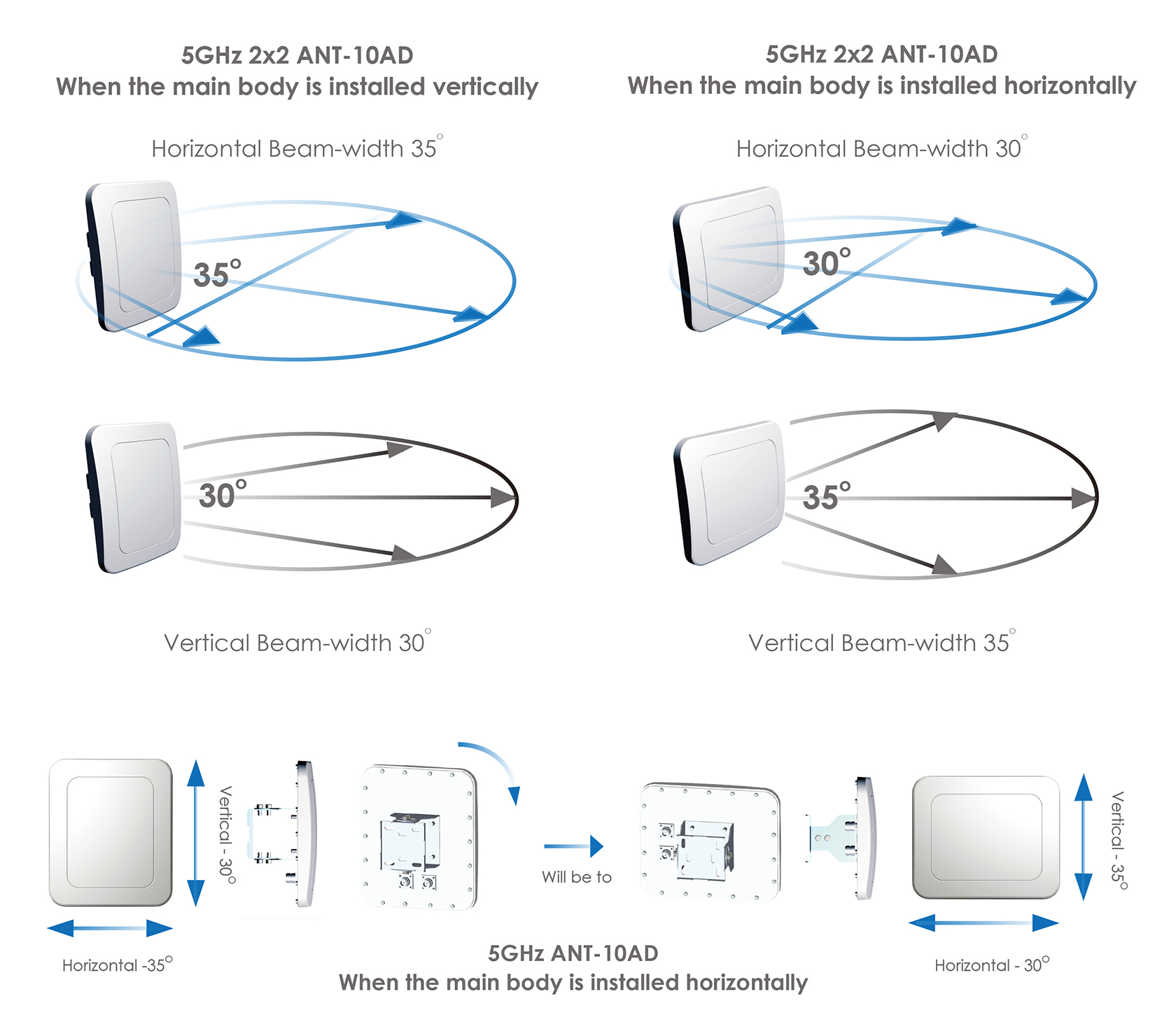

Antenna Coverage

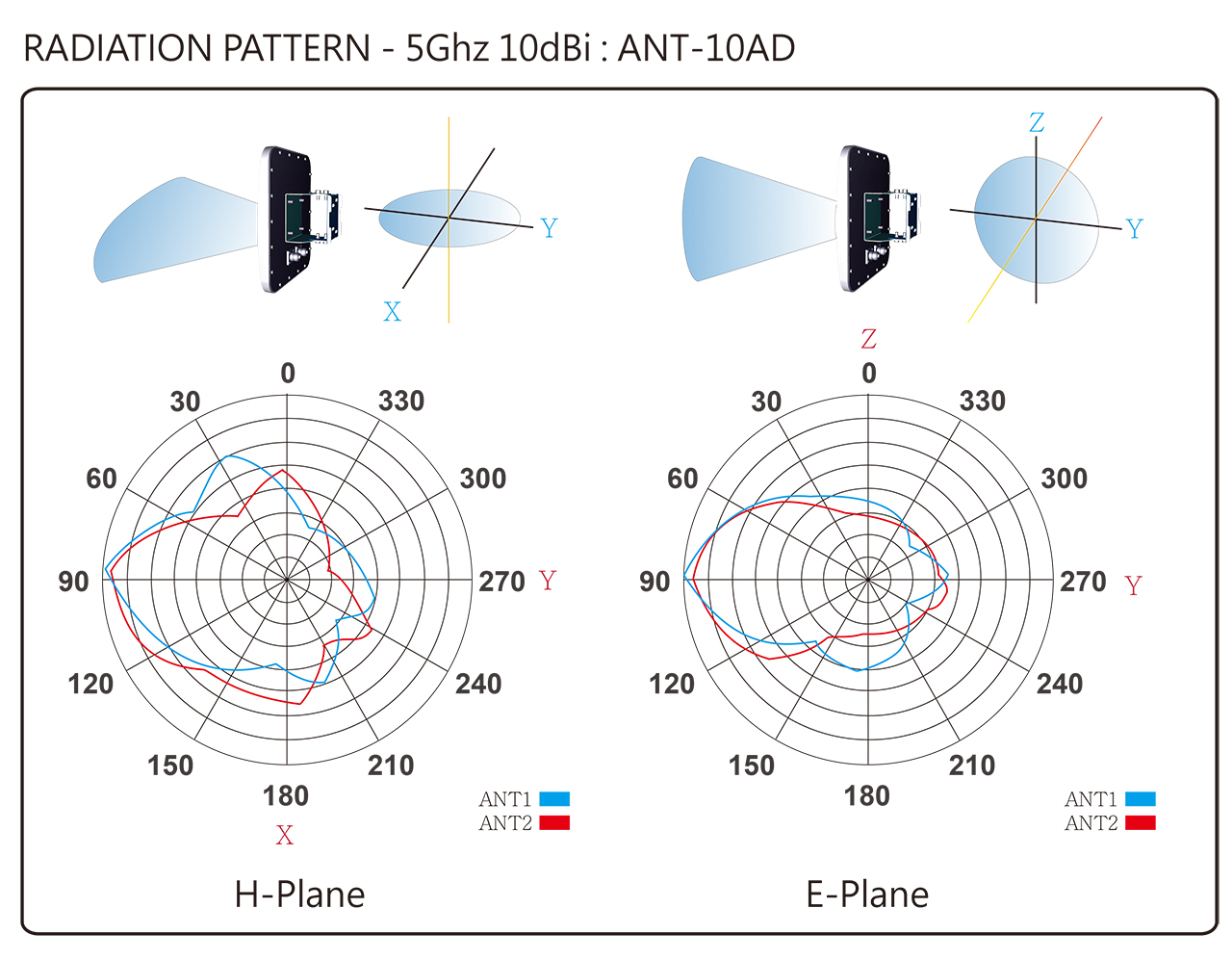

Radiation Pattern
Specifications | |
Antenna Type | Outdoor Directional Panel Antenna (Horizontally-Polarized) Dual Polarization Antenna |
Frequency Range | 5.1 ~ 5.9GHz (11a/an/ac/ax) |
Network Specification | Wireless 5Ghz Network IEEE 802.11a/an/ac/ax MIMO |
Antenna Gain | 10 dBi |
V.S.W.R | ≦1.5 |
Beam Width | Vertical installation:Horizontal beam 35°, Vertical beam 30° Horizontal installation:Horizontal beam 30°, Vertical beam 35° |
Polarization | Vertical & Horizontal (Linear) |
Input Impedance | 50 Ohms |
Materials | UV-resistant PC-122U + 2t aluminum alloy |
Connector | N-Type Female |
Form Factor | Supports Wall / Pole Mounting Installation |
Adjustable range(with OW-PKUR mounting bracket) | Adjustable bracket match SUS304 M6 U-bolt Available inside diameter : Ø34mm – Ø 54mm Adjustable bracket match SUS304 Hose Clamp Available inside diameter : Ø30 – Ø90mm Horizontal column hanging axis: 360°horizontal rotation Up and down angle: Maximum upward 40°, downward 40° |
Operation Temperature | -50˚C – + 85˚C |
Storage Temperature | -50˚C – + 85˚C |
Humidity | 5~90% maximum (non-condensing) |
IP Rating | IP68 Rating (waterproof approval) |
Maximum Wind Resistance Velocity | Beaufort scale 17 wind load test certificated |
Dimension | Antenna: 201*241*32.2 (L x W x H)mm Mounting bracket: 83*85*78 (L x W x H)mm |
Weight | 720g |
Production Location | TW |
Certifications | RoHS Compliant |
Package Contents | |
ANT-10AD Main Unit | x1 |
Adjustable Pole & Wall Mounting Kit(OW-PKUR) | x1 |
Quick Installation Guide | x1 |
Warranty Card | x1 |

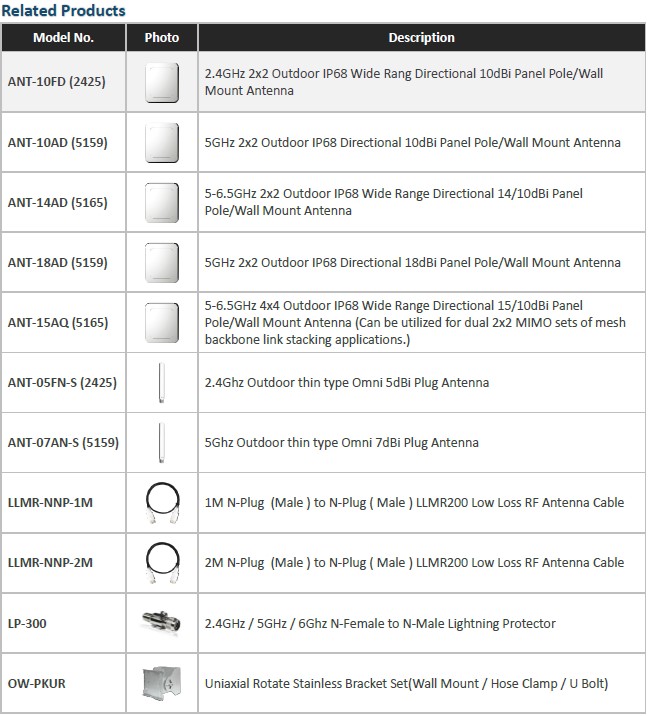

Related Products
