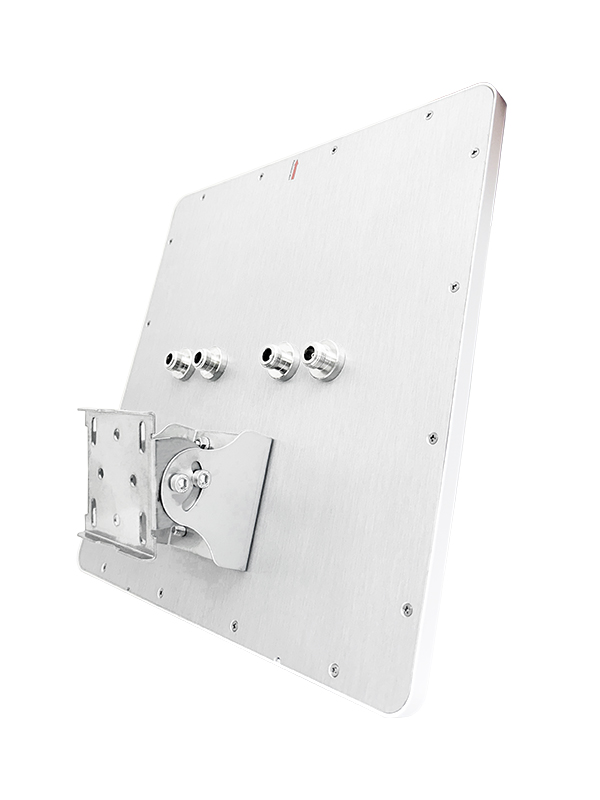

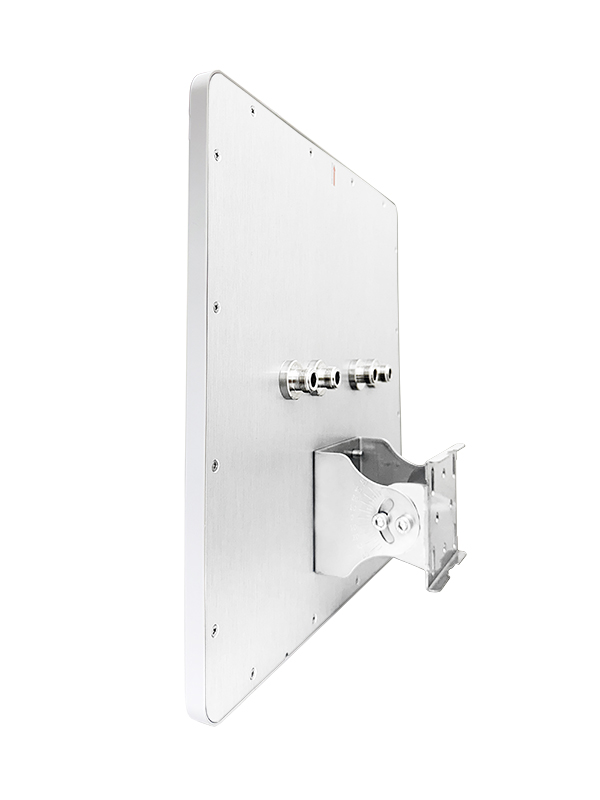

ANT-23BQ (5972)
5.9-7.2GHz 4×4 Outdoor IP67 Directional 23dBi Panel Pole/Wall Mount Antenna
The CERIO ANT-23BQ 5.9-7.2GHz 4×4 Outdoor Directional 23dBi Panel Antenna supports 5.9 to 7.2GHz and provides superb performance in WiFi environment. It supports pole and wall mounting installation and constructed with highly UV-resistant plastic material combined with aluminum alloy to achieve a high-sealing IP67 waterproof design. All materials are considered good in water tightness and prevention of rust characteristics.
The CERIO ANT-23BQ 5.9-7.2GHz 4×4 Outdoor Directional 23dBi Panel Antenna supports 5.9 to 7.2GHz and provides superb performance in WiFi environment. It supports pole and wall mounting installation and constructed with highly UV-resistant plastic material combined with aluminum alloy to achieve a high-sealing IP67 waterproof design. All materials are considered good in water tightness and prevention of rust characteristics.
The CERIO ANT-23BQ outdoor directional Dual Polarization Panel Antenna provides polarized dual-signal characteristics, allowing multiple antenna applications for WiFi 4T4R MIMO. The user only uses one set of ANT-23BQ Dual Polarization antenna with 4 sets of N-Type connectors for connection with low-attenuation RF cables and WiFi AP to complete 4T4R MIMO applications that require multiple antennas. It can also be used as a 2×2 MIMO stacking application for two MESH backbone links, allowing users to enjoy a perfect solution for faster, longer distances with 4T4R MIMO multi-radio reception and wireless transmission.
Highlight Features
• Supports 5.9 ~ 7.2GHz.
• High Gain: 23dBi
• Beam Width: Horizontal beam 18°,Vertical beam 10°
• High performance.
• IP67 waterproof protection rating, suitable for applications in various weather conditions.
• Beaufort scale 17 wind load test certificated.
• Polarized dual-gender design and supports four N-Type (Female) connectors.
• Packaging includes SUS304 stainless steel single-axis adjustable mounting bracket (OW-PKUR).
(Please refer to the detailed specifications of OW-PKUR)
• High-sealing structure with UV resistance, high-temperature durability, combines aluminum alloy and stainless steel materials, ensuring weather resistance and extended lifespan.

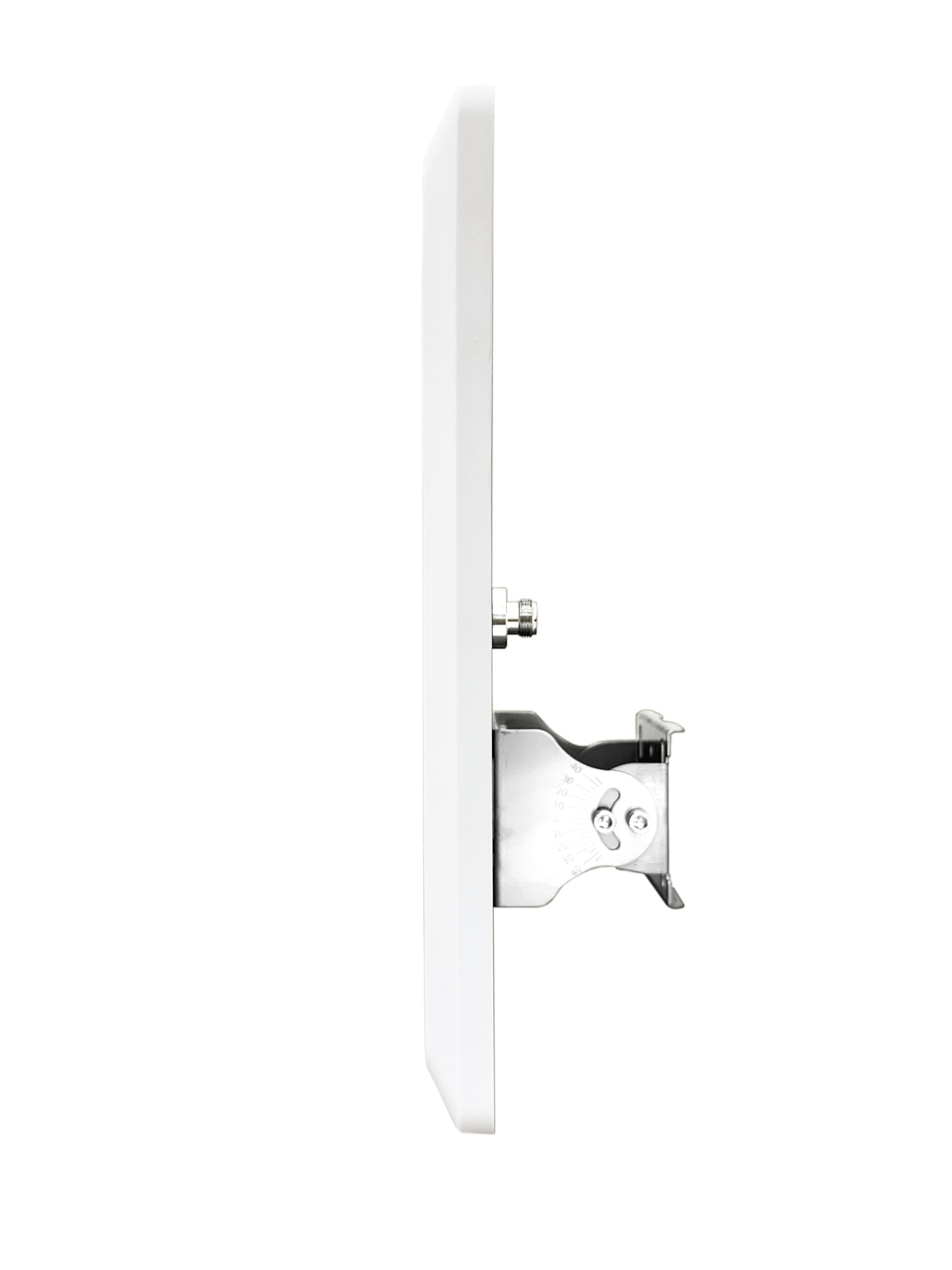

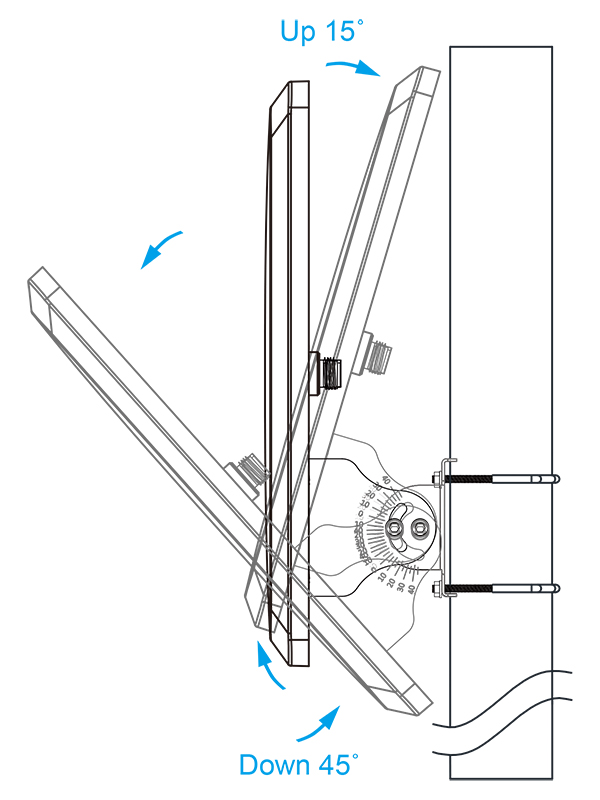

Maximum Up and Down Angles

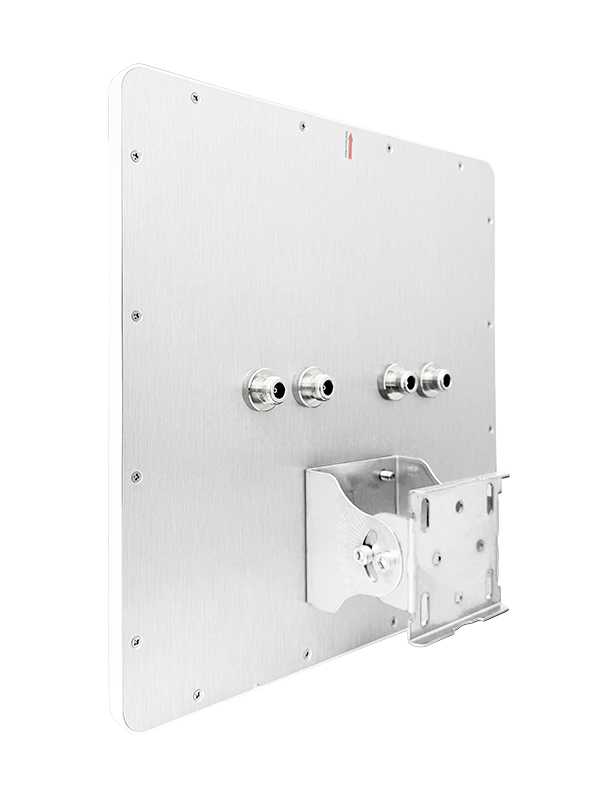

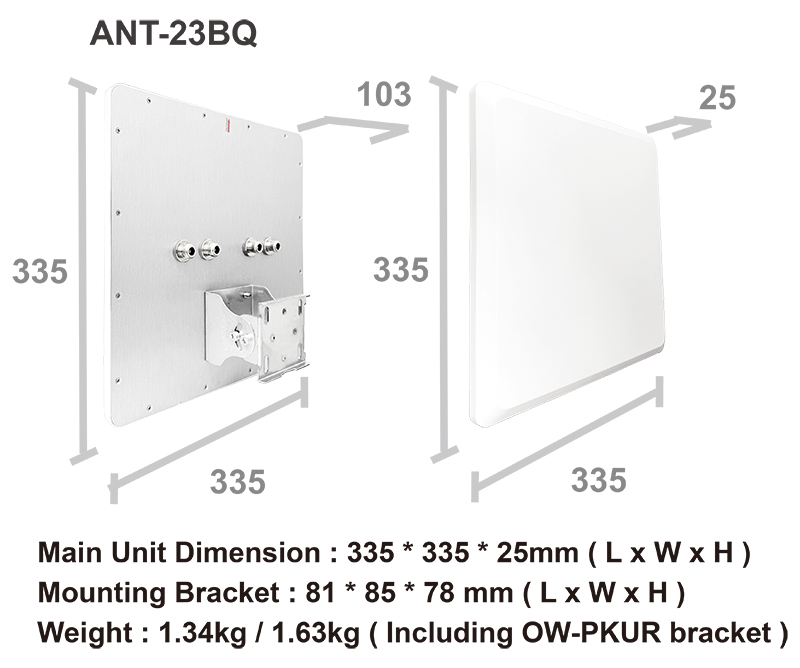

Hardware Overview / Dimension
Adjustable Mounting Bracket Installation (OW-PKUR)

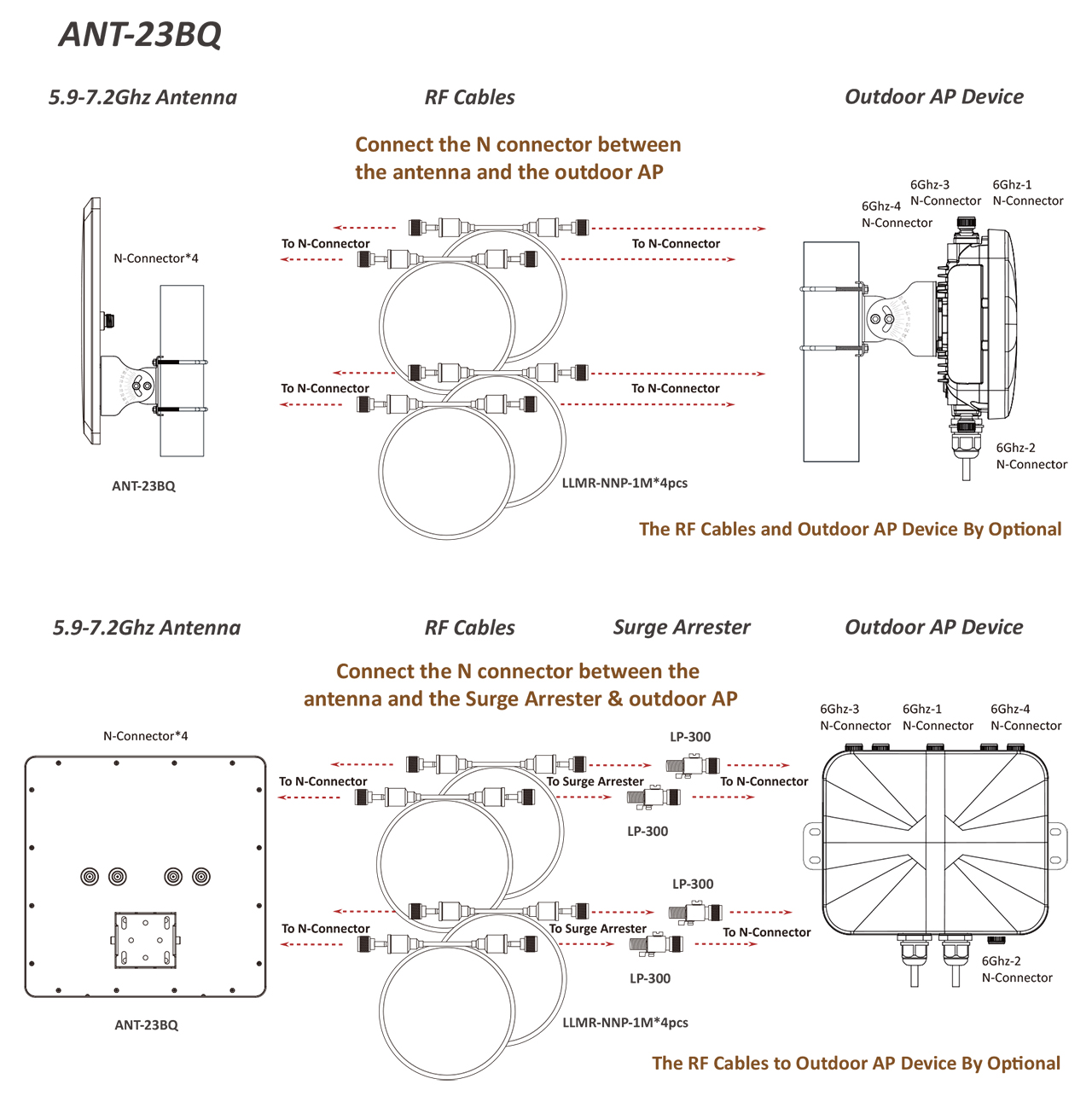

Product Application
Antenna Radiation Pattern

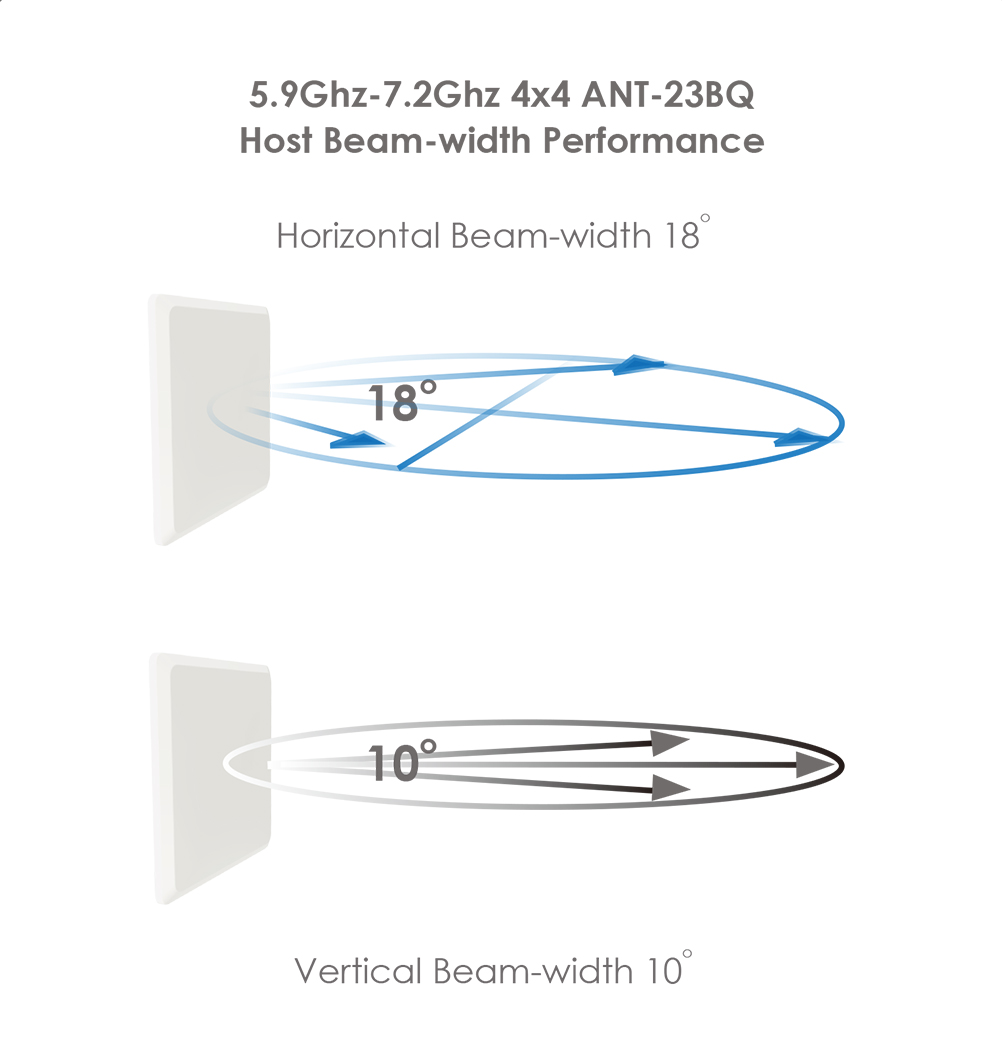

Antenna Angle and Coverage
| Specifications | |
| Antenna Type | Outdoor Directional Panel Antenna (Horizontally-Polarized) Dual Polarization Antenna |
| Frequency Range | 5.9 ~ 7.2GHz |
| Network Specification | Wireless 4T4R MIMO |
| Antenna Gain | 23 dBi |
| V.S.W.R | ≦2 |
| Beam Width | Horizontal beam 18°, Vertical beam 10° |
| Polarization | Vertical & Horizontal (Linear) |
| Input Impedance | 50 Ohms |
| Materials | UV-resistant plastic + aluminum alloy |
| Connector | N-Type Female x2 |
| Form Factor | Supports Wall / Pole Mounting Installation |
| Adjustable range(with OW-PKUR mounting bracket) |
Adjustable bracket match SUS304 M6 U-bolt Available inside diameter : Ø34mm – Ø 54mm |
| Adjustable bracket match SUS304 Hose Clamp Available inside diameter : Ø30 – Ø90mm |
|
| Horizontal column hanging axis: 360°horizontal rotation |
|
| Up and down angle: Maximum upward 15°, downward 45° |
|
| Operation Temperature | -45˚C – + 75˚C |
| Storage Temperature | -50˚C – + 85˚C |
| Humidity | 5~90% maximum (non-condensing) |
| IP Rating | IP67 Rating |
| Maximum Wind Resistance Velocity | Beaufort scale 17 wind load test certificated |
| Weight | 1.34g/1.63kg(with bracket) |
| Production Location | TW |
| Certifications | RoHS Compliant |
| Package Contents | |
| ANT-23BQ (5972) Main Unit | x1 |
| Adjustable Pole & Wall Mounting Kit(OW-PKUR) | x1 |
| Quick Installation Guide (Chinese/English) | x2 |
| Warranty Card | x1 |
