IEEE 802.3bt Class8 DC12-24V PoE Splitter
Max power output up to 80Watts

The CERIO POE-PD06S provides Multi Gigabit Ethernet capability and is backward compatible with 10/100/ 1000Mbps network standards. It supports IEEE 802.3bt PoE++ / 802.3at PoE+ / 802.3af PoE standards and provides PoE 44~57V Ethernet power and data input to separate to only DC/Power output and only Ethernet /Data output. It’s a high efficiency PoE Splitter solution. Supports DC output voltage 12V, 19V and 24V via DIP switch three range adjustable.

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2500 /5000 BASE-T, IEEE 802.3at/af PoE standards.
  • Supports Multi Gigabit (1/2.5/5Gbps) Ethernet connection ability.
  • Use to connect non-PoE 802.3at/af devices to PoE injector or PoE switch.

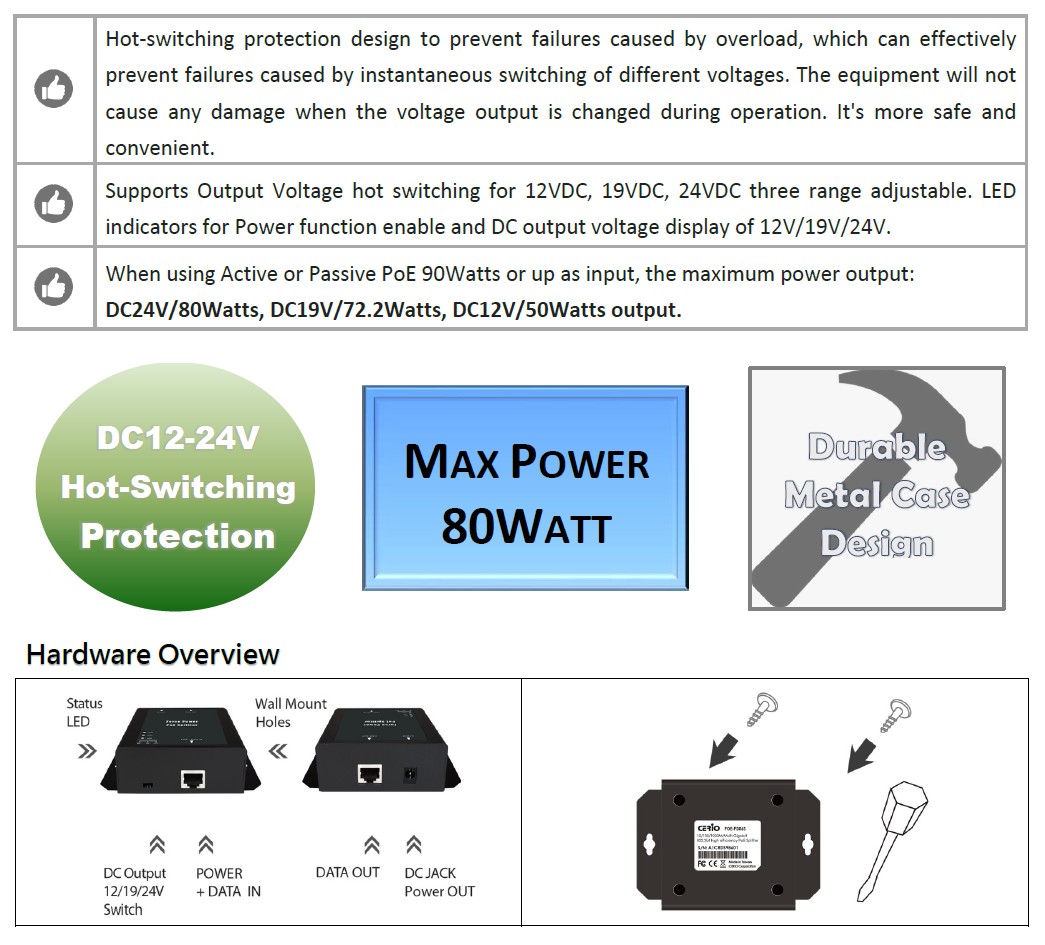

  • Supports Output Volt hot switching for 12VDC/ 19VDC/24VDC three range adjustable.
  • When using Active or Passive PoE 90Watts or up as input, the maximum power output: DC24V/80Watts, DC19V/72.2Watts, DC12V/50Watts output.
  • Supports power reverse acute protection design, and auto restarts to protect possible short circuit, which can reduce the damage caused by the short circuit.
  • Split the PoE signal into separate data and power, the total distance up to 100M.
  • Bundle accessories for inside diameter 2.1 mm (PHY) to 2.1 (PHY) mm DC cable.
  • Durable metal case design supports desktop and wall mounting installation.

Product Application

Using the Cerio POE-PD06S, you can take advantage of Power Over Ethernet and place Multi Giga/Giga/Fast Ethernet-enabled products, such as Wireless Access Points, Network Cameras, and VoIP Phone where power outlets are not readily available.
