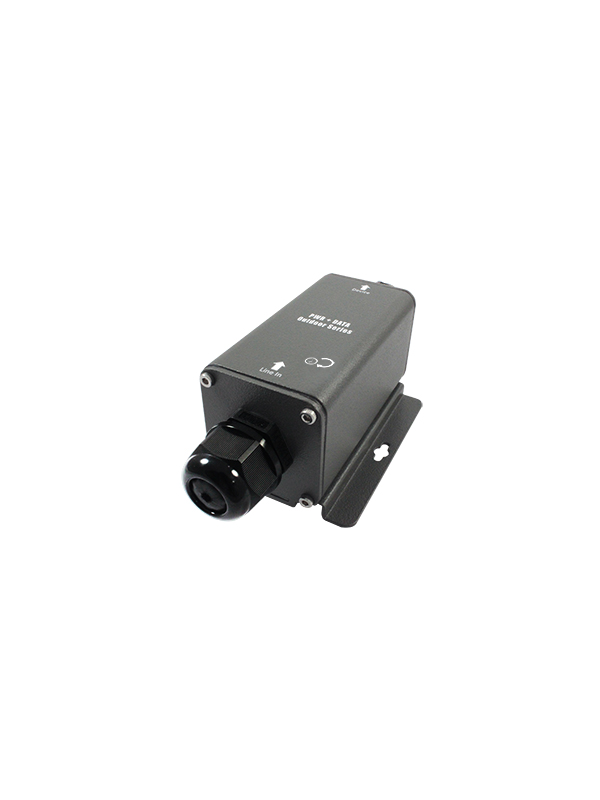

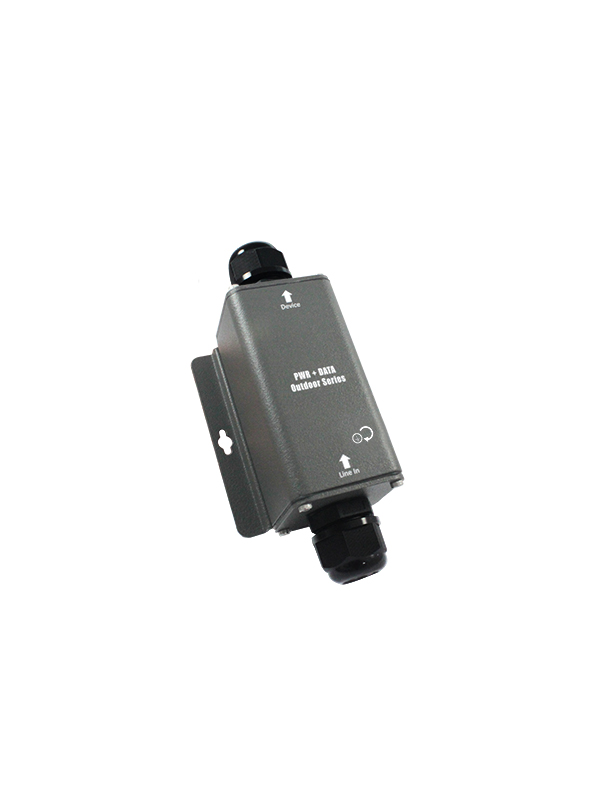

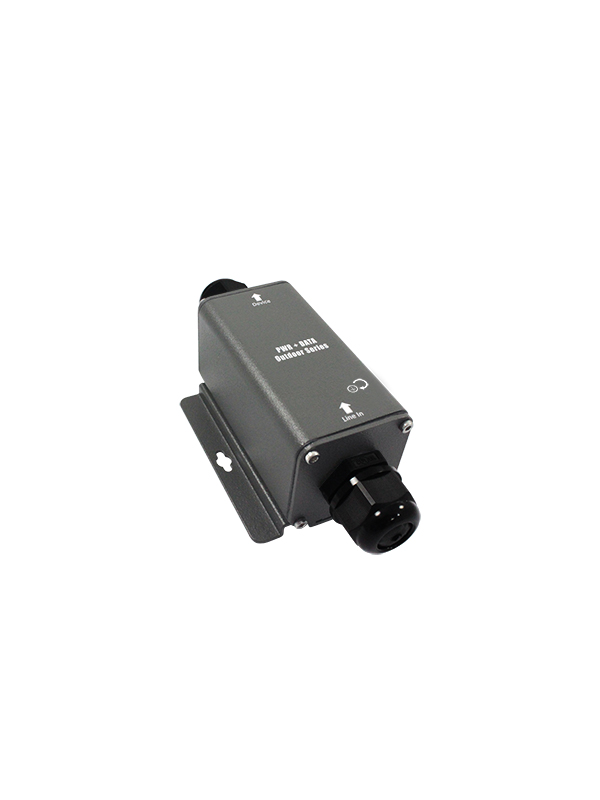

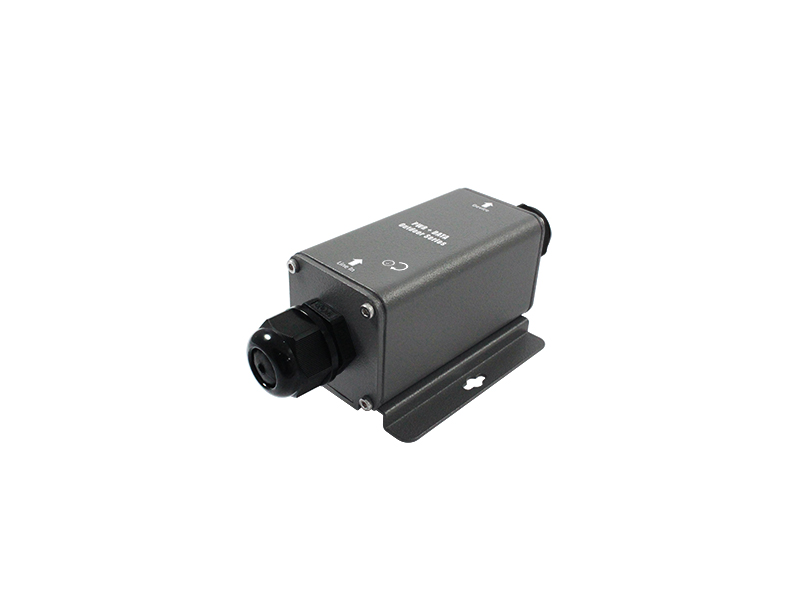

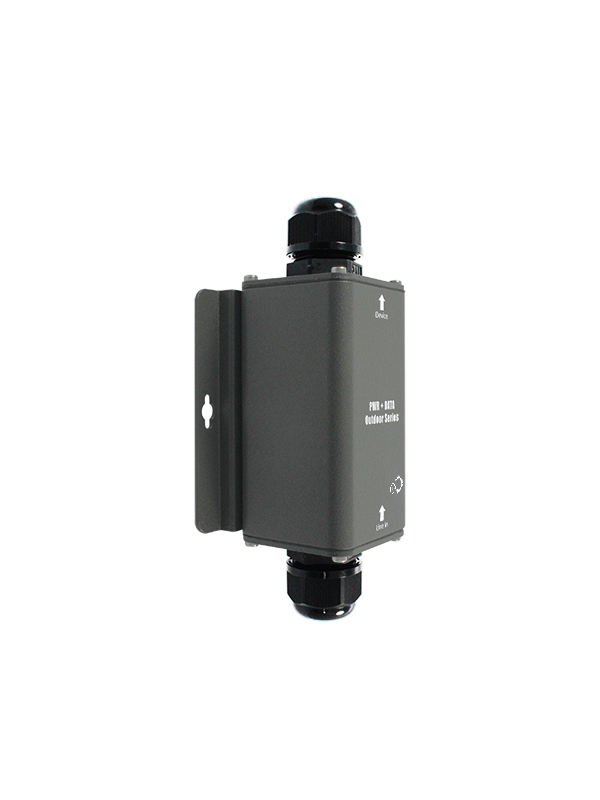

POE-OSP
Outdoor Gigabit Ethernet PoE Pass-though Surge Protector

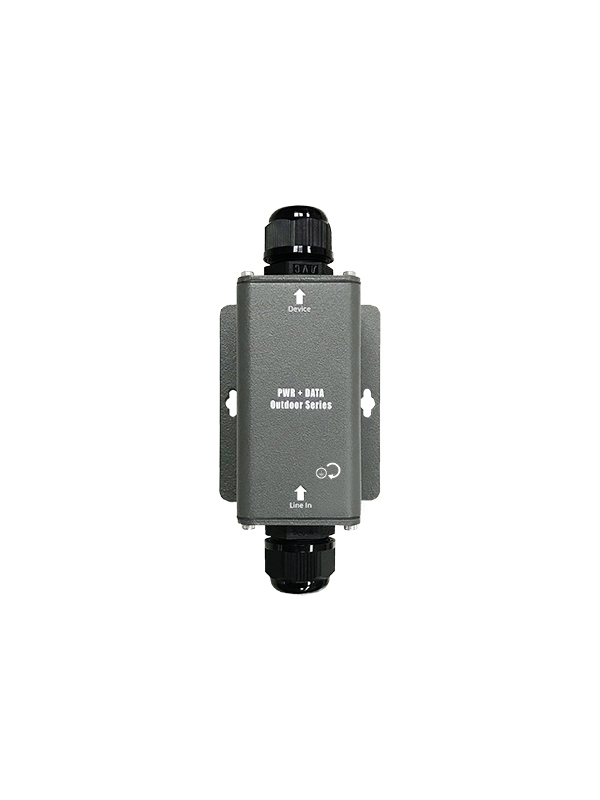

The CERIO POE-OSP is an outdoor PoE Pass-through Ethernet Surge Protector provides superior lightening and surge protection over Gigabit networks speeds to provide Gigabit Power-over-Ethernet (PoE) over a single Ethernet cable. It supports 10 KA Impulse Discharge Current guarantees reliable surge protection and provides excellent lightning protection for network PoE and non-PoE devices when transmitting on Gigabit network. POE-OSP provides aluminum enclosure with IP68 rating waterproof durable design are made to withstand harsh environment deployment. It’s ideal for installation in outdoor environments.
Product Application
Highlight Features
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T standards.
- Supports 10/100/1000Mbps Gigabit Ethernet speed , Power over Ethernet (PoE) pass through and compatible with IEEE 802.3BT PoE Class 8 or less power level .
- Supports IP68 rating weather-proof durable design are made to withstand harsh environment deployment.
- Load current self-protection mechanism and grounding wire function pulse discharge current protection design.
- Built in grounding pad which can connect to grounding cable to lower clamping voltage for better and more reliable protection and supports 10 kA Impulse Discharge Current.
- Supports 2 protection mode : Line-to-Ground and Line-to-Line.
- Protects all Eight(8) pins of the Ethernet cable.
- Plug and Play, no software required.

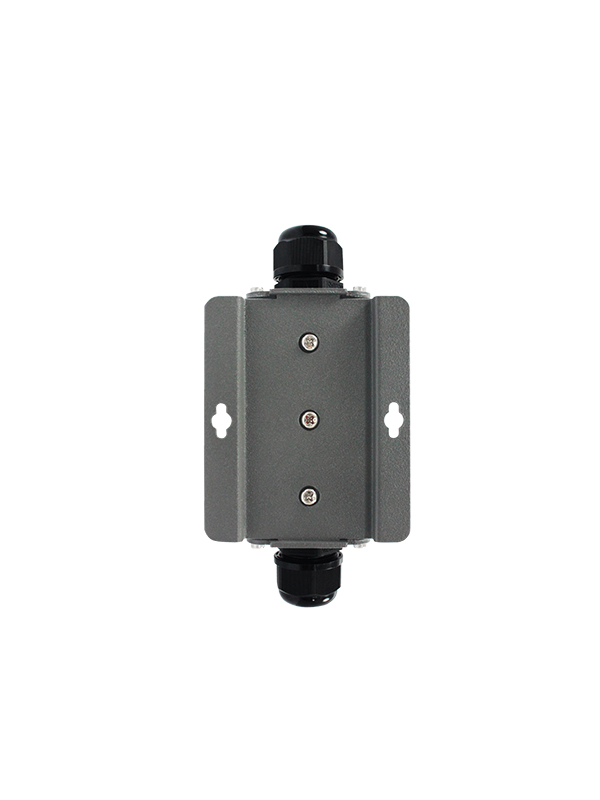

- Supports desktop , wall mounting and multiple units combination easy to use.
- Functionality

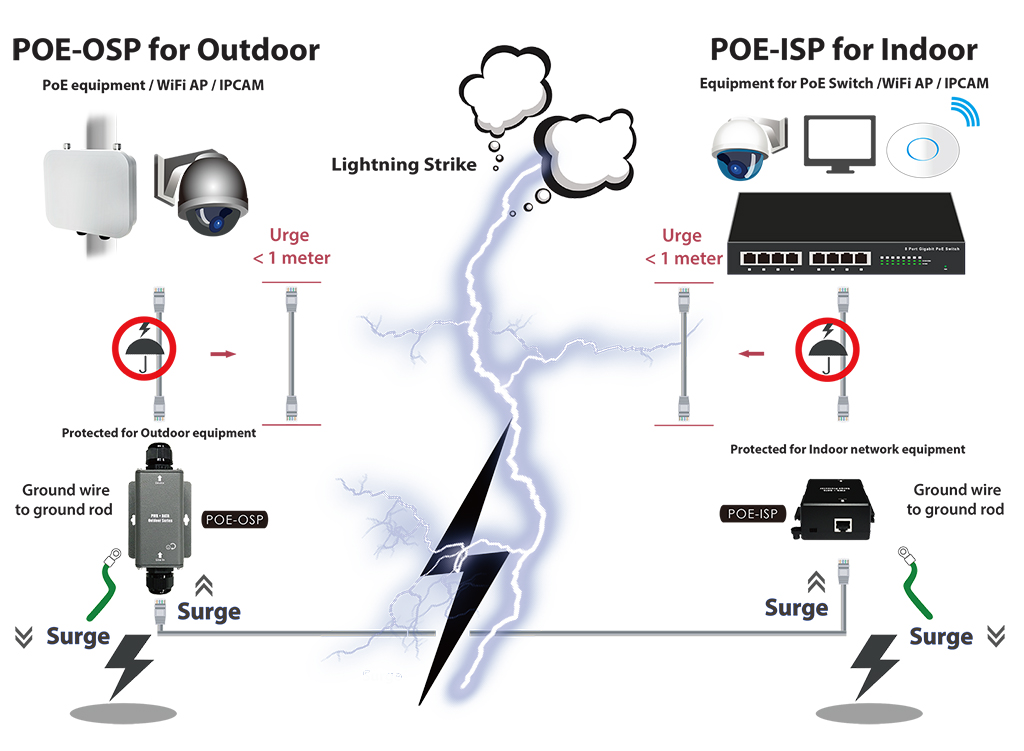

- The CERIO Gigabit Outdoor Surge Protector with the latest advanced hardware protection design protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. It can function as a transmitter for a PoE switch to deliver power and data through an Ethernet cable and can handle data rates of up to 1000 Mbps Gigabit speed. This device protects all 8 pins of the Ethernet cable and is compatible with all types of RJ45 cables. Installing two POE-OSP devices, one is nearly terminal equipment (such as PoE/non-PoE outdoor cameras, Outdoor AP), and the other at source equipment (such as PoE/non-PoE Switch, Router). Damaging ESD attacks and surges will be absorbed by the POE-OSP devices and safely discharged into the ground. It is a cost-effective solution for protecting expensive outdoor Ethernet devices.
- Surge Protection
- CERIO POE-OSP provides higher surge capability and lower clamping voltage. It is compliant with IEC/EN 61643-21 and IEC/EN 61000-4-5 standard. The benefit of CERIO POE-ISP includes maximize surge capability and enhancing reliability device safety.
- Additional Benefits
- Some additional benefits of CERIO PoE Surge Protector include cost saving, small pocket size and convenience in network planning, and higher reliability.
- Easy installation
- The CERIO PoE Surge Protector is simple Plug-and-Play, requires no configuration.
Product Application
Installation Support

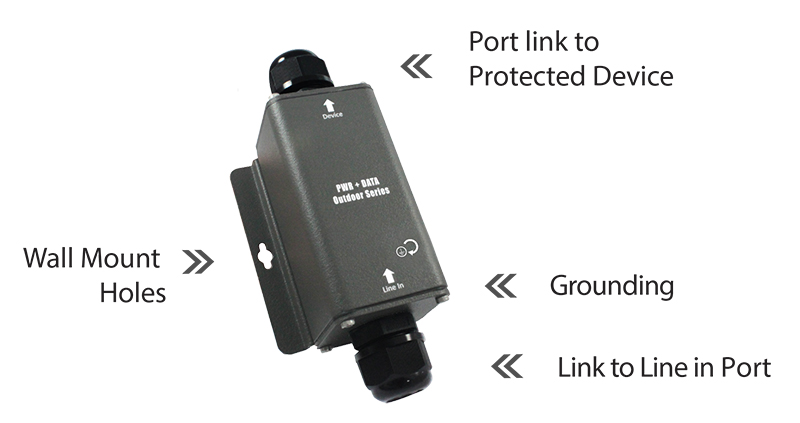

Hardware Overview
| Standards & Hardware Specifications | |
| Standard |
IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3af/bt POE Pass-through | |
| Network Media |
10BASE –T: UTP Cat. 3 or up |
| 100BASE-TX : UTP Cat. 5 or up | |
| 1000BASE-T: UTP Cat. 5 or up | |
| Data Transfer Rate |
10/100/1000Mbps (Half-duplex) |
| 20/200/2000Mbps (Full-duplex) | |
| Clamping Line-to-Ground | 20 kV (10/700 us) 600V at 10 kA (8/20 us) |
| Clamping Line-to-Line | 6 kV (10/700 us) 20V at 1 kA (8/20 us) |
| Data in | Connects PC/HUB/Switch |
| Ethernet Connector |
RJ-45 x1 for Line in |
| RJ-45 x1 for Line out | |
| Surge Protection Design | 10 kA (After grounding ability) |
| Surge Response Time | 1ns |
| Environmental & Mechanical Characteristics | |
| PoE Operation DC Voltage | 60 VDC (Max) |
| PoE Operation DC Current |
Two pair : 0.65A (Max) |
| Four pair : 1.3A (Max) | |
| PoE Power Load | 74Watt (Four Pair Max) |
| POE Input Voltage | 44V~60V |
| Operating Temperature | -40° to 85° C |
| Storage Temperature | -40° to 85° C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |

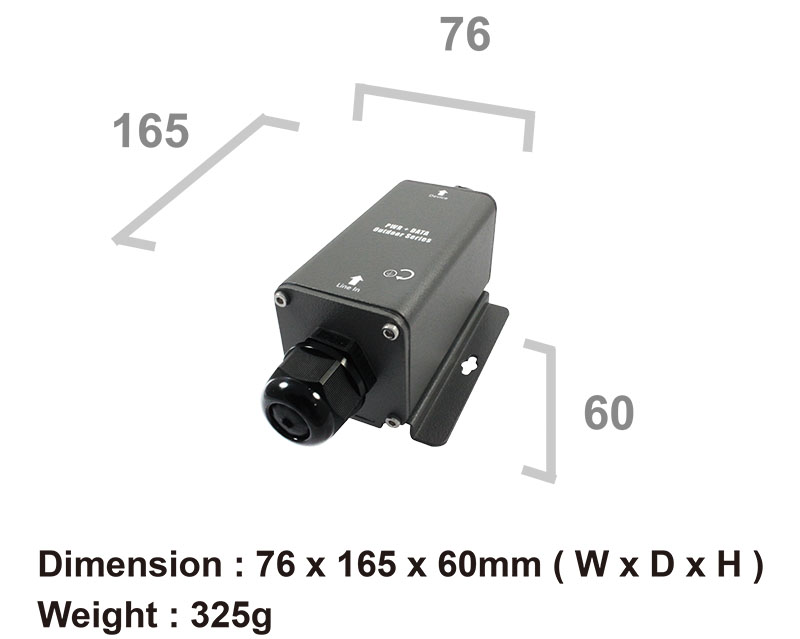

| Dimension ( W x H x D ) | 76 x 165 x 60mm (Including wall mounting kit) |
| Weight ( g ) | 325g |
| Case of material | IP68 Rating Weather-proof Alumm casing |
| Production Location | TW Only |
| Supports |
IEC/EN 61643-21 (Safety) compatible |
| IEC/EN 61000-4-5 (EMC) compatible | |
| Certifications | IEC 60529 IP68 Rating CE, FCC and RoHS Compliant |
| Package Contents | |
| POE-OSP Main Unit | x1 |
| Quick Installation Guide | x1 |
| 18AWG grounding cable | x1 |
| Wall mounting screw set | x1 |
| Warranty Card | x1 |
