POE-OSP+
The CERIO POE-OSP+ is an outdoor PoE Pass-through Ethernet Surge Protector provides superior lightening and surge protection over 1/2.5Gbps Multi Gigabit networks speeds to provide Gigabit Power-over-Ethernet (PoE) over a single Ethernet cable. It supports 10 kA Impulse Discharge Current guarantees reliable surge protection and provides excellent lightning protection for network PoE and non-PoE devices when transmitting on Gigabit network. POE-OSP+ provides aluminum enclosure with IP68 rating waterproof durable design are made to withstand harsh environment deployment. It’s ideal for installation in outdoor environments.
Product Application
Highlight Features
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3bz 2500Base-T standards.
- Supports 1/2.5Gbps Multi Gigabit Ethernet speed and Power over Ethernet (PoE) pass through.
- Supports IP68 rating weather-proof durable design are made to withstand harsh environment deployment.
- Load current self-protection mechanism and grounding wire function pulse discharge current protection design.
- Built in grounding pad which can connect to grounding cable to lower clamping voltage for better and more reliable protection and supports 10 kA Impulse Discharge Current.
- Supports 2 protection mode : Line-to-Ground and Line-to-Line.
- Protects all Eight(8) pins of the Ethernet cable.
- Bundle with 18AWG grounding cable.
- Plug and Play, no software required.

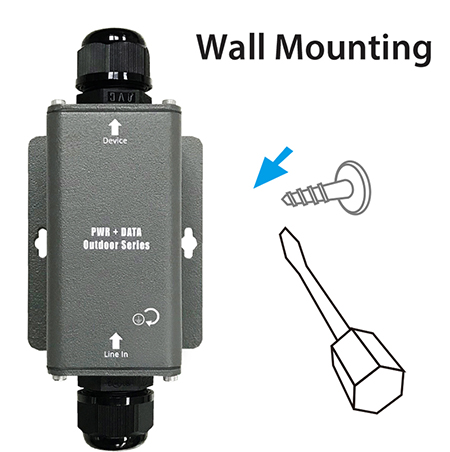

- Supports wall mounting installation.
Functionality
The CERIO Multi Gigabit Outdoor Surge Protector with the latest advanced hardware protection design protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. It can function as a transmitter for a PoE switch to deliver power and data through an Ethernet cable and can handle data rates of up to 2500 Mbps Multi Gigabit speed. This device protects all 8 pins of the Ethernet cable and is compatible with all types of RJ45 cables. Installing two POE-OSP+ devices, one is nearly terminal equipment (such as PoE/non-PoE outdoor cameras, Outdoor AP), and the other at source equipment (such as PoE/non-PoE Switch, Router). Damaging ESD attacks and surges will be absorbed by the POE-OSP+ devices and safely discharged into the ground. It is a cost-effective solution for protecting expensive outdoor Ethernet devices.
Surge Protection
CERIO POE-OSP+ provides higher surge capability and lower clamping voltage. It is compliant with IEC/EN 61643-21 and IEC/EN 61000-4-5 standard.
Weather-proof
POE-OSP+ provides IP68 rating weather-proof durable design makes it perfect for deployment in enterprise application.
Additional Benefits
The benefit of CERIO POE-OSP+ includes maximize surge capability and enhancing reliability device safety. It can greatly reduce the impact of lightning and surges on outdoor network equipment.
Easy installation
Simple Plug-and-Play, requires no configuration.
Product Application
Hardware Overview

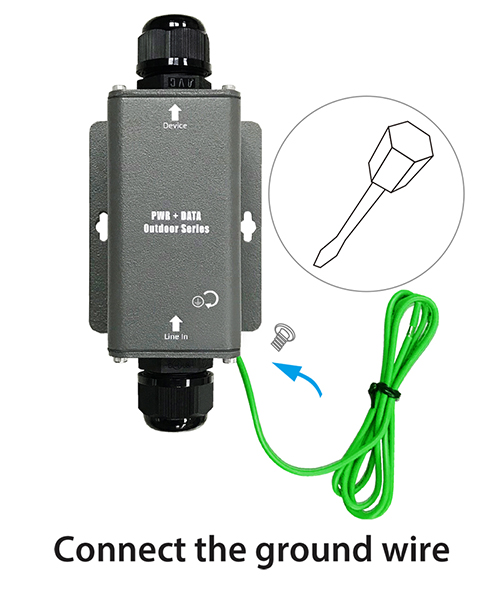

Installation Support
| Standards & Hardware Specifications | |
| Standard | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2500Base-T IEEE 802.3af/at/bt POE Pass-through |
| Network Media | 10BASE –T: UTP Cat. 3 or up 100BASE-TX : UTP Cat. 5 or up 1000BASE-T: UTP Cat. 5 or up 2500BASE-T: UTP Cat. 5e or up |
| Data Transfer Rate | 10/100/1000/2500Mbps (Half-duplex),
20/200/2000/5000Mbps (Full-duplex) |
| Clamping Line-to-Ground | 20 kV (10/700 us) 600V at 10 kA (8/20 us) |
| Clamping Line-to-Line | 6 kV (10/700 us) 20V at 1 kA (8/20 us) |
| Data in | Connects PC/HUB/Switch |
| Ethernet Connector | RJ-45 x1 for Line in x 1 RJ-45 x1 for Line out x 1 |
| Surge Protection Design | 10 kA (After grounding ability) |
| Surge Response Time | 1ns |
| Environmental & Mechanical Characteristics | |
| PoE Operation DC Voltage | 60 VDC (Max) |
| PoE Operation DC Current | Two pair : 0.65A (Max) Four pair : 1.3A (Max) |
| PoE Power Load | 74Watt (Four Pair Max) |
| POE Input Voltage | 44V~60V |
| Operating Temperature | -40° to 85° C |
| Storage Temperature | -40° to 85° C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Dimension ( W x H x D ) | 76 x 165 x 60mm (Including wall mounting kit) |
| Weight ( g ) | 325g |
| Case of material | IP68 Rating Weather-proof Alumm casing |
| Production Location | TW |
| Supports | IEC/EN 61643-21 (Safety) compatible IEC/EN 61000-4-5 (EMC) compatible |
| Certifications | IEC 60529 IP68 Rating CE, FCC and RoHS Compliant |
| Package Contents | |
| POE-OSP+ Main Unit | x1 |
| Quick Installation Guide | x1 |
| 18AWG grounding cable | x1 |
| Wall mounting screw set | x1 |
| Warranty Card | x1 |
