CS-1008G-4PX_8PX

The Best Choice for 4 / 8-Port PoE SW

Compact Size, High Performance, PoE Flexibility

The CERIO Gigabit PoE+ Switch complying with IEEE 802.3af/at Power over Ethernet standard. It delivers both data and power over UTP cables to PoE-enabled devices such as access points (APs) and IP cameras, effectively supporting long-distance power and data transmission. This eliminates the need for traditional power outlet installations and allows you to easily build your network using PoE technology. With simple plug-and-play operation and no software configuration required, it offers a hassle-free experience. Ideal for expanding HD surveillance systems or wireless AP coverage, this solution overcomes power line deployment limitations -saving labor and infrastructure costs while offering high economic efficiency.

• Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af PoE, IEEE 802.3at PoE+ standards.
•  Supporting the power up to 30Watt/15.4Watt/ 7.5Watt/4Watt for each PSE/PoE+ port bundle with Power Adapter.

•  CS-1008G-8PX : Packaging with 90Watt power adapter, PoE Power Budget 80Watt shared for all PoE Ports. (1-8 port)

•  CS-1008G-4PX : Packaging with 60Watt power adapter, PoE Power Budget 55Watt shared for all PoE Ports. (1-4 port)

•  Support Jumbo Frame 9K.

•  Non-blocking & Non-head-of-line blocking full-wire speed forwarding.

•  Supports TP interface Auto MDIX function for auto TX/RX swap.

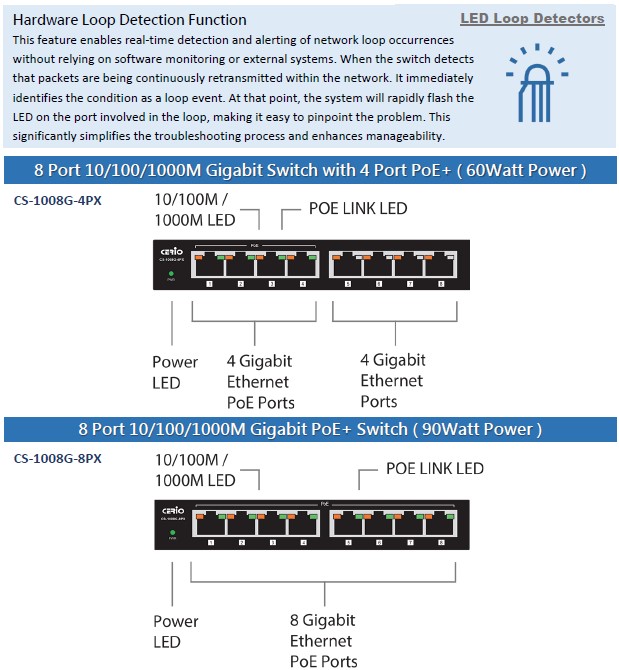

•  Supports hardware LED Loop Detectors function.

• Durable & Secure compact metal case design , Easy Installation and Made in Taiwan..
