CS-1216G-16P & CS-1224G-24P

16 / 24 Port PoE Switch

Max Power up to 450Watt

The CERIO 16/24Port Gigabit PoE Switch is a powerful high-performance networking switch supports 2 Gigabit SFP uplink ports and compliant with IEEE 802.3at and 802.3af PoE standards. It defines new green power saving idea on the PSE Port and built-in 400~450watt internal power. It designed for SMB deployment and can also be upgraded to 1U” chassis for standard rack mounting with durable metal casing. It is suitable for setting up surveillance systems in small offices, shops, restaurants, and multi-node network environments, etc., providing convenient and reliable network power supply and data transmission.

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af PoE, IEEE 802.3at PoE+ standards.

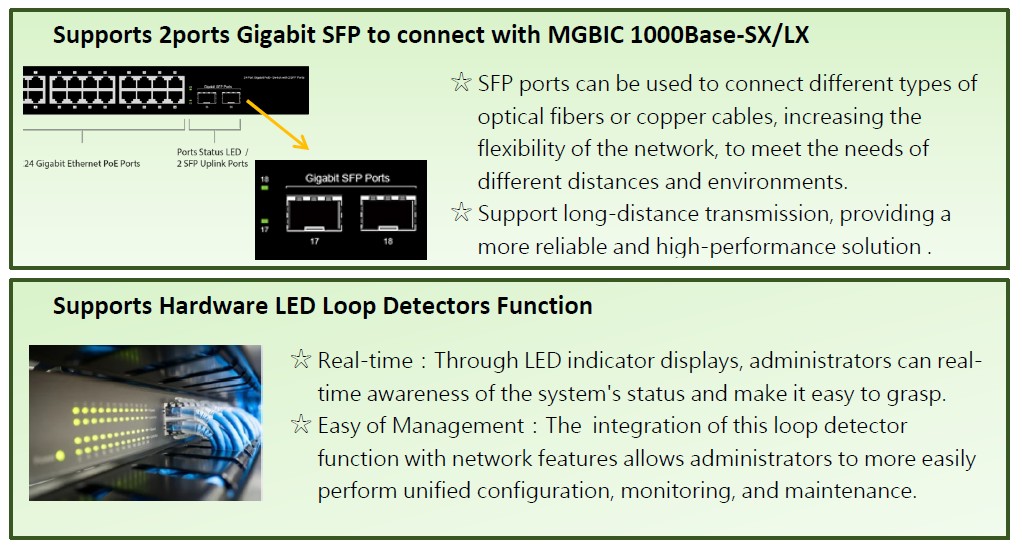

  • Supports 2 Gigabit SFP uplink ports compliant with IEEE 802.3z 1000Base-SX/LX standards.
  • Supports Internal Bus Speed and the exchange rate:
    CS-1216G-16P supports 36Gbps/26.784Mpps, CS-1224G-24P supports 52Gbps/38.688Mpps.
  • Supporting 16 or 24ports AT PoE power up to 30Watt per port.

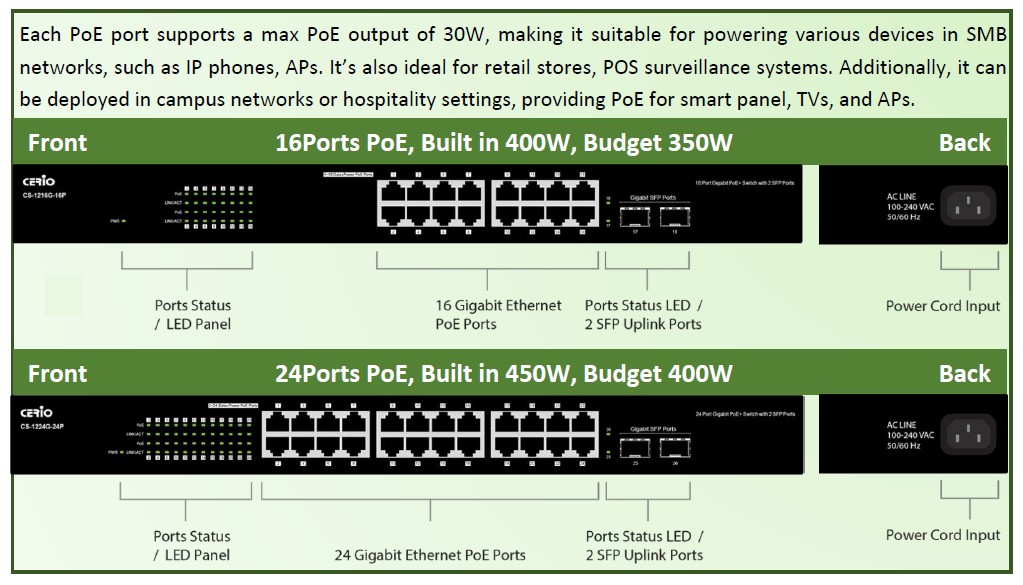

  • Built-in 400 ~ 450 Watt power supply, supports a maximum PoE output budget:
    CS-1216G-16P max PoE budget 350W share for 1-16 PoE port;
    CS-1224G-24P max PoE budget 400W share for 1-24 PoE port.
  • Supports Loop Prevention, including Loop Detection, Loop Prevention and Spanning Tree prevent loops from occurring effectively.
  • Support ”1U” chassis for server room installation and made in Taiwan with stable quality.
