CS-1216G-8P8T

IEEE 802.3bt PoE Switch

Max Power up to 450Watt

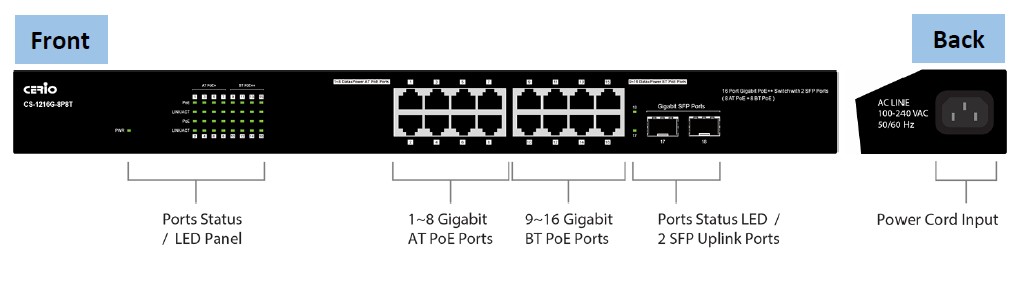

CERIO CS-1216G-8P8T is including 8ports of AT PoE and 8ports of BT PoE powerful high-performance 16 port PoE Gigabit switch and supports 2 Gigabit SFP uplink ports. It’s compliant with IEEE 802.3bt, IEEE 802.3at and 802.3af PoE standards and defines new green power saving idea on the PoE/PSE Port. It’s built-in 450watt internal power supply. It’s designed for SMB deployment and can also be upgraded to 1U” chassis for standard rack mounting with durable metal casing. It is suitable for setting up surveillance systems in small offices, shops, restaurants, and multi-node network environments, etc., providing convenient and reliable network power supply and data transmission.

• Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt PoE++ standards.
• Supports 2 Gigabit SFP uplink ports compliant with IEEE 802.3z 1000Base-SX/LX standards.
• Supports Internal Bus Speed up to 36Gbps and the exchange rate over 26.784Mbps.
• Supporting 8ports AT PoE power up to 30Watt and 8ports BT PoE power up to 90Watt.
• Built-in 450 Watt power supply, supports a maximum PoE output budget of 400 Watt, shared for 16 ports of 10/100/1000M PoE ports.
• Supports Loop Prevention, including Loop Detection, Loop Prevention and Spanning Tree prevent loops from occurring effectively.
• Support ”1U” chassis for server room installation and made in Taiwan with stable quality.
