CS-1224XG 24 Port 10/100/1000M Gigabit Switch with 2 SFP 10G Ports
Cerio CS-1224XG connectivity is ideal for deployment in SME/SMB core environments. Provide cost-effective powered solutions for modern enterprise businesses. The Switch equips with 2 SFP 10G ports as uplink ports. This 10G uplink design provides an excellent solution to expand your network.

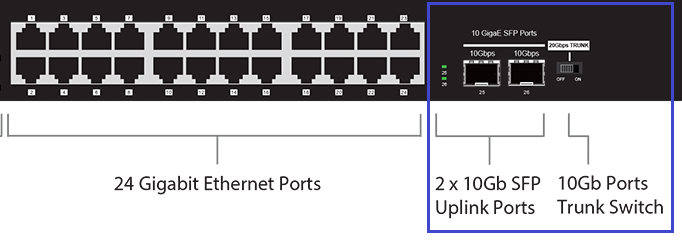

10Gb Uplink Ports

Highlights Features

  • 24 Port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch
  • Supports 2 SFP 10G Fiber uplink ports for IEEE 802.3ae 10G SFP-SR, SFP-LR, SFP-ER
  • Supports Energy-Efficient Ethernet (EEE), IEEE 802.3az standard
  • Supports Green Ethernet features, Link-On and Cable Length Power Saving, Link-Down Power Saving, Power saving mode support to automatic cable detection
  • Supports Store & Forward architecture and performs forwarding and filtering
  • 3x flow control for Full-duplex, Back Pressure function for Half-duplex operation
  • Provides 10K Jumbo frames to improve network utilization of large file transfers
  • Non-blocking & Non-head-of-line blocking full wire speed forwarding
  • Supports TP interface Auto MDIX function for auto TX/RX swap
  • Automatic Source MAC Address Learning and Aging
  • Supports up to 16K MAC addresses and Up to 12Mb buffer memory

Metal housing designed for SMB deployment and fit to 1U” chassis
Dimension ( W x H x D ) : 441 x 190 x 44 mm
Weight ( g ) : 2.52Kg
