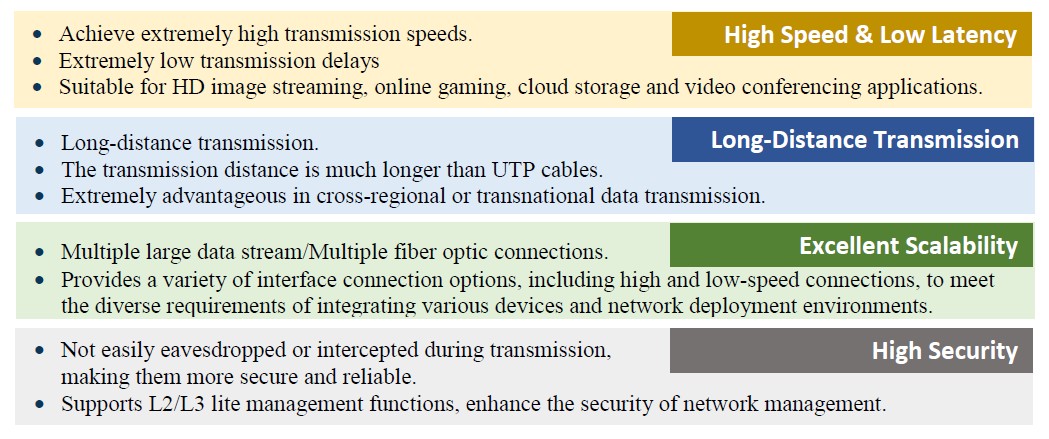

High Bandwidth, Low Latency, Long Distance

28 Ports Managed Fiber Optical Switch

CERIO CS-34816XG is the latest powerful high-performance L2/L3 Lite Fiber Optical Switch, It built-in web-browser management interface allows the administrator to manage and obtain detailed information of the local area network conveniently. With 8-port Combo Gigabit ports for connecting Mini GBIC 1000Base-SX/LX fiber optic modules or RJ45 Gigabit ports which administrators can flexible deployment, 16-port SFP Gigabit ports for downlink connection for long-distance IP fiber optic equipment and 4-port high-speed SFP+ 10Gigabit uplink port full-duplex uplink and total bandwidth up to 80Gbps. With a bandwidth capability of up to 128Gbps enhancing the stability, also can use this 10G port for stacking to expand the overall optical fiber integration capability of the central office.

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX, 802.3ae 10G SFP+ and IEEE 802.3az EEE standards.

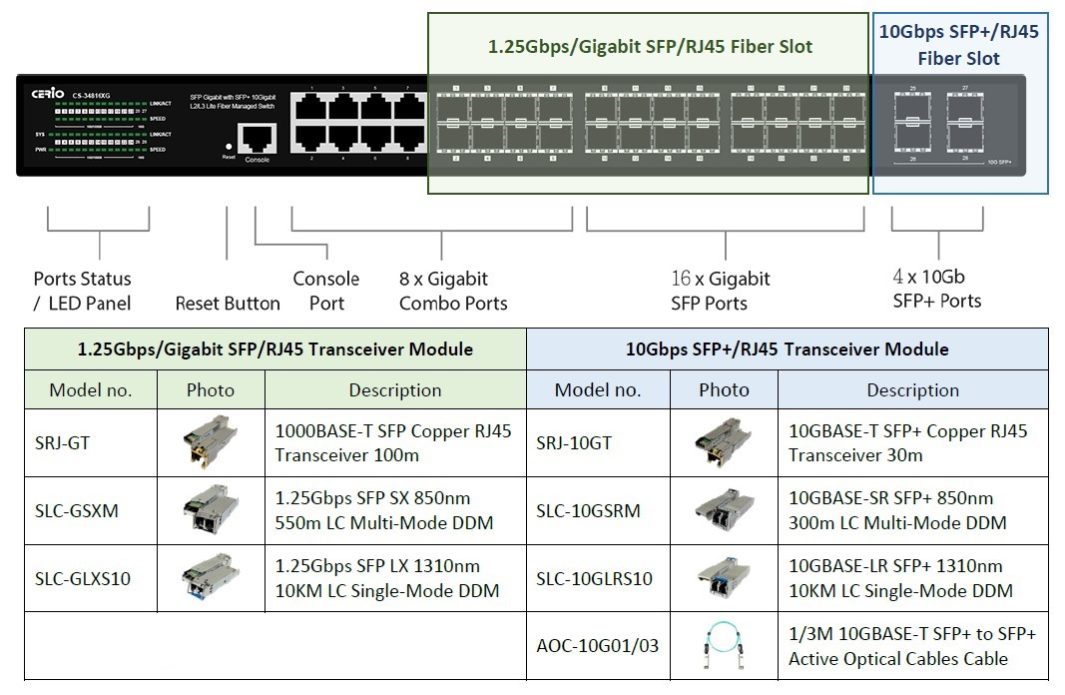

  • Supports 16 of SPF Gigabit ports, 8 Combo Gigabit ports and 4 SFP+ 10Gigabit ports.
  • Supports Internal Bus Speed up to 128Gbps and the exchange rate over 95.24Mpps.
  • Provides 10K Jumbo frames to improve network utilization of a large file transfers.
  • Supports up to 16K MAC addresses and 12Mb Packet buffer.
  • Supports 6kV surge protection on RJ45 port.
  • Supports Layer3 management function including: IPv4/IPv6 Static Route, ARP advanced setting, IPv4 and IPv6 DHCP Server / DNS Server, Routing Information Protocol (RIPv2), Open Shortest Path First (OSPFv2) and Virtual Router Redundancy Protocol (VRRPv2) etc.
  • Supports ”19” rack mount installation,metal case durable design and made in Taiwan.
