Multi Gigabit 4 Channel
AT/AF PoE PD Test Loader

CERIO TD-04AT is a PoE PD load testing solution that supports up to 4 channels with a maximum load power of 25.5W per channel. It fully complies with IEEE 802.3af and 802.3at standards. It provides Ethernet Pass Through RJ45 Data transmission and can perform physical power load tests on PoE PSE network devices. This is an essential physical verification tool of PoE devices for system integration providers, including whether the power capacity limit is sufficient, system installers check the equipment in advance to ensure smooth installation and reduce time and labor costs, and other troubleshooting verification. It is also suitable for verification and testing of PoE PSE network devices during production and is an indispensable tool for manufacturing or verifying PoE devices.

  • Complying with IEEE 802.3af PoE and IEEE 802.3at PoE+ standards.
  • Each independent channel supports Ethernet Pass Through data transmission.

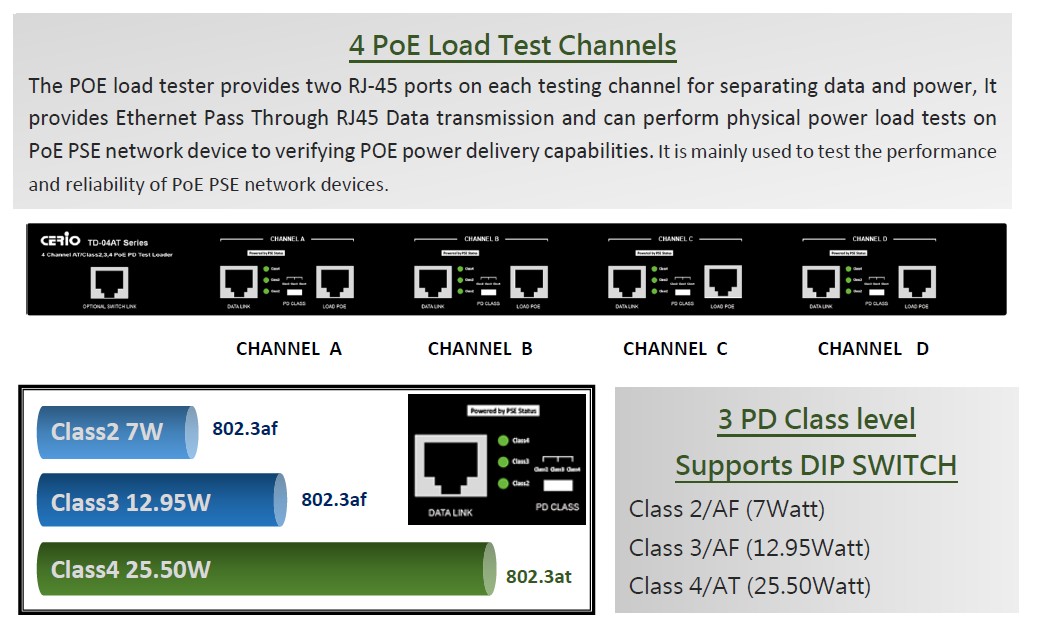

  • Supports 4 PoE load testing channels with switch exchange, each channel supporting a maximum of 25.5W PoE load testing.
  • Supports 3 PD Class level : PD Class 2 (7Watt), Class 3 (12.95Watt) and Class 4 (25.5Watt), with LED display of the load level.
  • Supports both PoE End-span (Type-A) and Mid-span (Type-B) modes to accommodate different PoE PSE devices.
  • High reliability metal casing design, supports 19″ rack installation and Made in Taiwan.
