Multi Gigabit 4 Channel
BT PoE PD Test Loader

CERIO TD-04BT is a PoE PD load testing solution that supports up to 4 channels with a maximum load power of 71W per channel. It fully complies with IEEE 802.3bt standards. It provides Ethernet Pass Through RJ45 Data transmission and can perform physical power load tests on PoE PSE network devices. This is an essential physical verification tool of PoE devices for system integration providers, including whether the power capacity limit is sufficient, system installers check the equipment in advance to ensure smooth installation and reduce time and labor costs, and other troubleshooting verification. It is also suitable for verification and testing of PoE PSE network devices during production and is an indispensable tool for manufacturing or verifying PoE devices.

  • Complying with IEEE 802.3bt PoE++ standards.
  • Each independent channel supports Ethernet Pass Through data transmission.

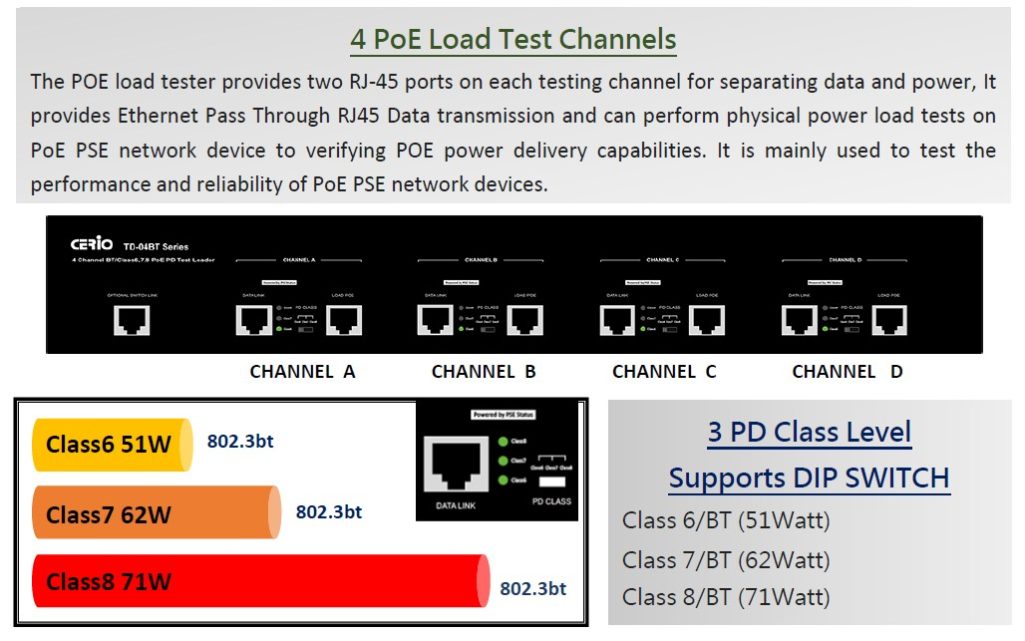

  • Supports 4 PoE load testing channels with switch exchange, each channel supporting a maximum of 71W PoE load testing.
  • Supports 3 PD Class level : PD Class 6 (51Watt), Class 7 (62Watt) and Class 8 (71Watt), with LED display of the load level.
  • Supports both PoE End-span (Type-A) and Mid-span (Type-B) modes.
  • High reliability metal casing design, supports 19″ rack installation and Made in Taiwan.
