Multi Gigabit 4 Switch
BT PoE PD Test Loader

The TD-04BT-S is a PoE PD load testing solution that supports up to 4 channels with a maximum load power of 71W per channel. It fully complies with IEEE 802.3bt standard and supports network switch functionality. It provides 1/2.5Gbps Multi Gigabit RJ45 Ethernet transmission capability and can perform physical power load and packet transmission tests on PoE PSE network devices. In addition to verifying the PoE power capacity of the PoE PSE network devices, it can also read the packet transmission capabilities of each port by the switch exchange port characteristics. This is an essential physical verification tool of PoE devices for system integration providers.

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5GBASE-T, IEEE 802.3bt PoE++ standards.
  • Built-in hardware switch control chip.
  • Supports 1/2.5Gbps Multi Gigabit Ethernet connection ability.
  • Supports 4 Port 10/100/1000/2500Mbps TX Auto-Negotiation Ethernet Switch.

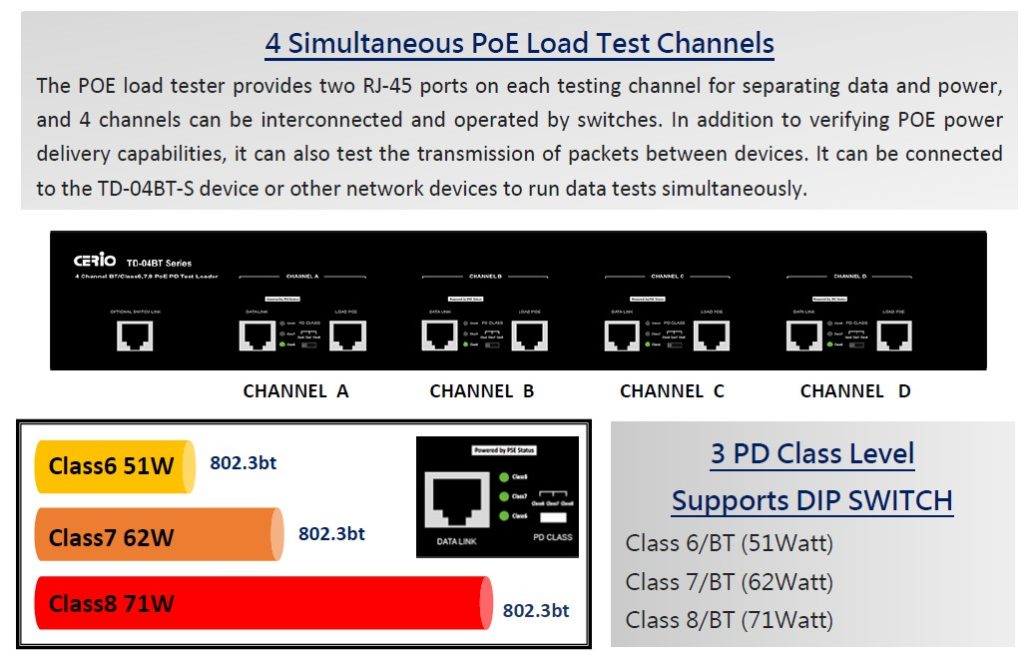

  • Supports 4 PoE load testing channels with switch exchange, each channel supporting a maximum of 71W PoE load testing.
  • Supports 3 PD Class level : PD Class 6 (51Watt), Class 7 (62Watt) and Class 8 (71Watt), with LED display of the load level.
  • Supports both PoE End-span (Type-A) and Mid-span (Type-B) modes.
  • High reliability metal casing design, supports 19″ rack installation and Made in Taiwan.
