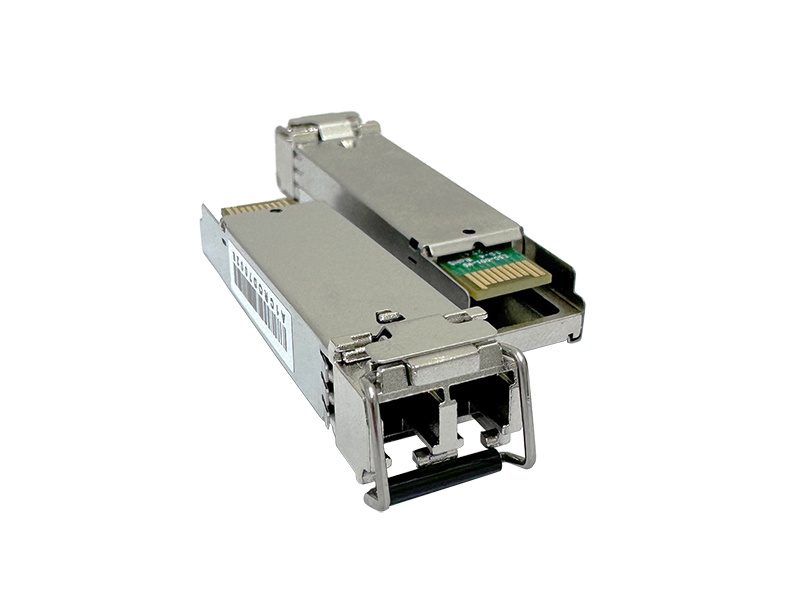

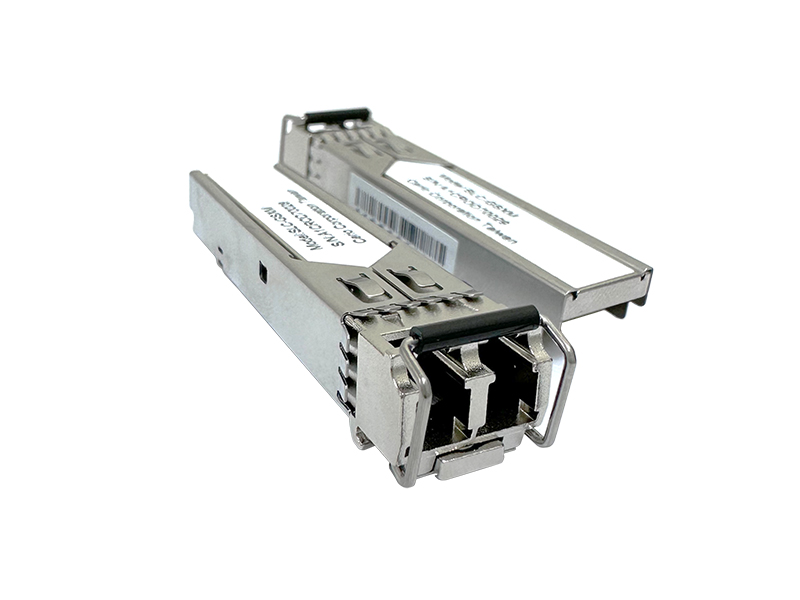

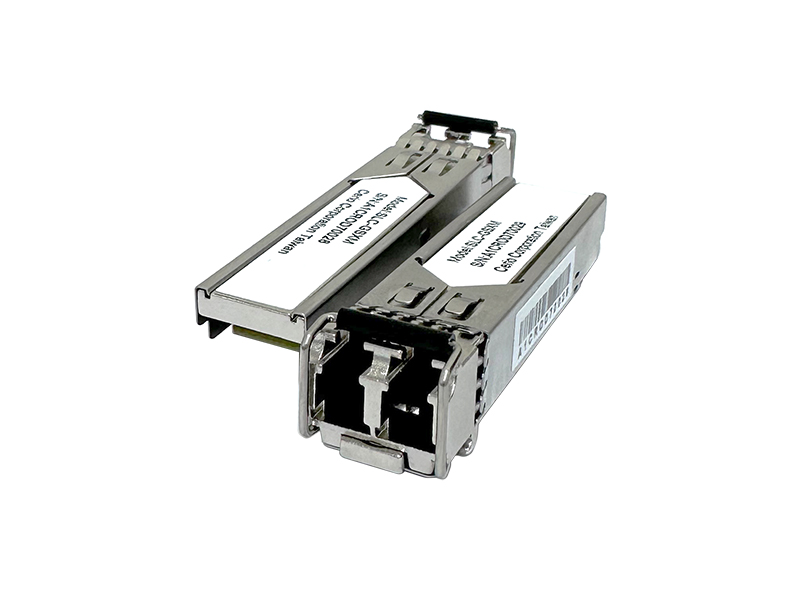

1.25Gbps SFP SX 850nm LC Multi-Mode DDM (550M)

The CERIO 1.25Gbps 1000BASE-SX SFP/LC Multi-mode fiber module provides optical transceiver modules connect on switches SFP Slot ports, supporting LC connectors. This dual-core small form-factor pluggable (SFP) module supports hot-swappable design and can be applied to long-distance fiber optic networks or fiber connections to other computer servers that support Gigabit SFP ports between Gigabit SFP ports of network switches. The module operates on a single power supply voltage of 3.3V and supports 1.25Gbps Ethernet transmission capability.

The Cerio SFP fiber module complies with the IEEE 802.3z Gigabit Ethernet standard, providing a stable and highspeed fiber network environment. When paired with fiber optic cables, this module can support fiber optic connections up to a maximum distance of 550 meters. It can be used in various application scenarios that require high-speed, reliable, and long-distance fiber transmission, and has broad application value.

Highlight Features

  • Complying with IEEE 802.3z Gigabit Ethernet Standard.
  • Compliant with SFP Multi-Source Agreement (MSA).
  • Supports 1.25Gbps Ethernet transmission capability.
  • Built in DDM, Digital Diagnostic Monitor function.
  • Center Wavelength supports 850nm.
  • Supports fiber link for distances up to 550 meters. (550M : 50/125μm MMF ; 300M : 62.5/125μm MMF).
  • Low power consumption less than 0.8W.
  • Single power supply 3.3V.
  • Hot-pluggable remove and install module.
  • Duplex LC connectors.
  • RoHS compliant.
  • Plug and play, easy installation.
Fiber Type Multi-Mode
Data Transfer Rate 1.25Gbps
Maximum Fiber Distance 550M : 50/125μm
300M : 62.5/125μm
Center Wavelength 850nm
Supply Voltage 3.3V
Power Consumption < 0.8W
Connector Dual LC connectors
Digital Diagnostic Monitor (DDM) Supported
Operating Temperature 0°C ~ 70 °C
Storage Temperature -40 °C ~85 °C
Dimension ( W x H x D ) 13.4 x 12.22 x 55.45 mm
Weight 15.8g
Production Location TW
Certifications RoHS compatible
Package Contents
SLC-GSXM  Main Unit x1
Warranty Card x1
