DC12-56V Gigabit Wide Temperature/Voltage to 30Watt PoE+ Adapter
CERIO POE-DGT-ZW DC12-56V Gigabit Wide Temperature/Voltage to 30Watt PoE+ Adapter supports IEEE 802.3af/at Power Over Ethernet Standard. It’s an Active PoE voltage booster Gigabit PoE+ Injector. It supports wide range DC 12-56V input voltage and provides 2 Ethernet ports, it can automatically boost and conversion to the best transmission performance 802.3af/at standard PoE 56V output. The max. PoE output power up to 30Watt. For the environment only available with 12/24/37.5/48V power voltage configuration, it automatically boosted to 802.3af/at standard PoE 56V output to PD device through the screw terminal block power input, it provides the best and economical solution. It is a high-level Wide Temperature/Voltage POE+ Adapter solution.
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af PoE and IEEE 802.3at PoE+ standards.
- Supports 10/100/1000Mbps Gigabit Ethernet connection ability.
- Supports a wide range input voltages of 12~56V. It can be automatically boosted and converted to 802.3af/at standard PoE 56V power output.
- Supports two power interface: Supports screw terminal power input for power boost system used and extra DC power input for PoE constant voltage used.
- Auto detect PD power supply is powered by End-span (Type-A) or Mid-span (Type-B) power pin, and LED indicators shows power pin type.
- Supports IEEE 802.3af/at POE standards and supports standard Active PSE/PoE Power Over Ethernet function and Max PoE Output up to 30Watt.
- Supports -40° ~ 75° C wide temperature design which can withstand various high and low temperature environmental applications.
- Provides a durable and reliable metal housing design.
- Over Current Protection & Short-circuit Protection.
- Plug-and-Play, requires no configuration.
- Supports desktop, wall mounting installation.
CERIO POE-DGT-ZW is a great ideal for the application of vehicle power system. Ex. fixed or mobile batteries, solar or power engine combined independent power systems etc. When the environmental input voltage range is limited to below 55V and over 12V, the POE-DGT-ZW can be used to boost voltage to the best transmission performance 802.3af/at standard PoE 56V output to PD device through the network cable. It’s a very convenient and economical solution. The applications include 12V or 24V or 48V battery system/solar system and automotive markets, such as 24V BUS, Railway transportation or 48V power system which needs to be converted to 802.3af/at standard PoE 56V power output to the powered devices, such as PoE IP cameras, PoE video displays, PoE wireless base stations, etc.
Durable Metal Casing and Wide Temperature Design
CERIO POE-DGT-ZW provides an industrial durable and high-reliability metal case and supports a wide range temperature -40° ~ 75° C design. It supports wall mounting installation, which fully meets the application requirements in various environments. The wide temperature design allows the equipment to operate stably in extremely low and extremely high temperatures, making it the best helper for enterprises.
Long Distance Application
CERIO Gigabit Wide Temperature/Voltage to 30Watt PoE+ Adapter can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5e or up cabling.
The POE-DGT-ZW supports ESD, Electro Static Discharge protection includes Over Voltage protection and Short
Circuit Protection ensuring device safety.
Plug-and-Play, requires no configuration.

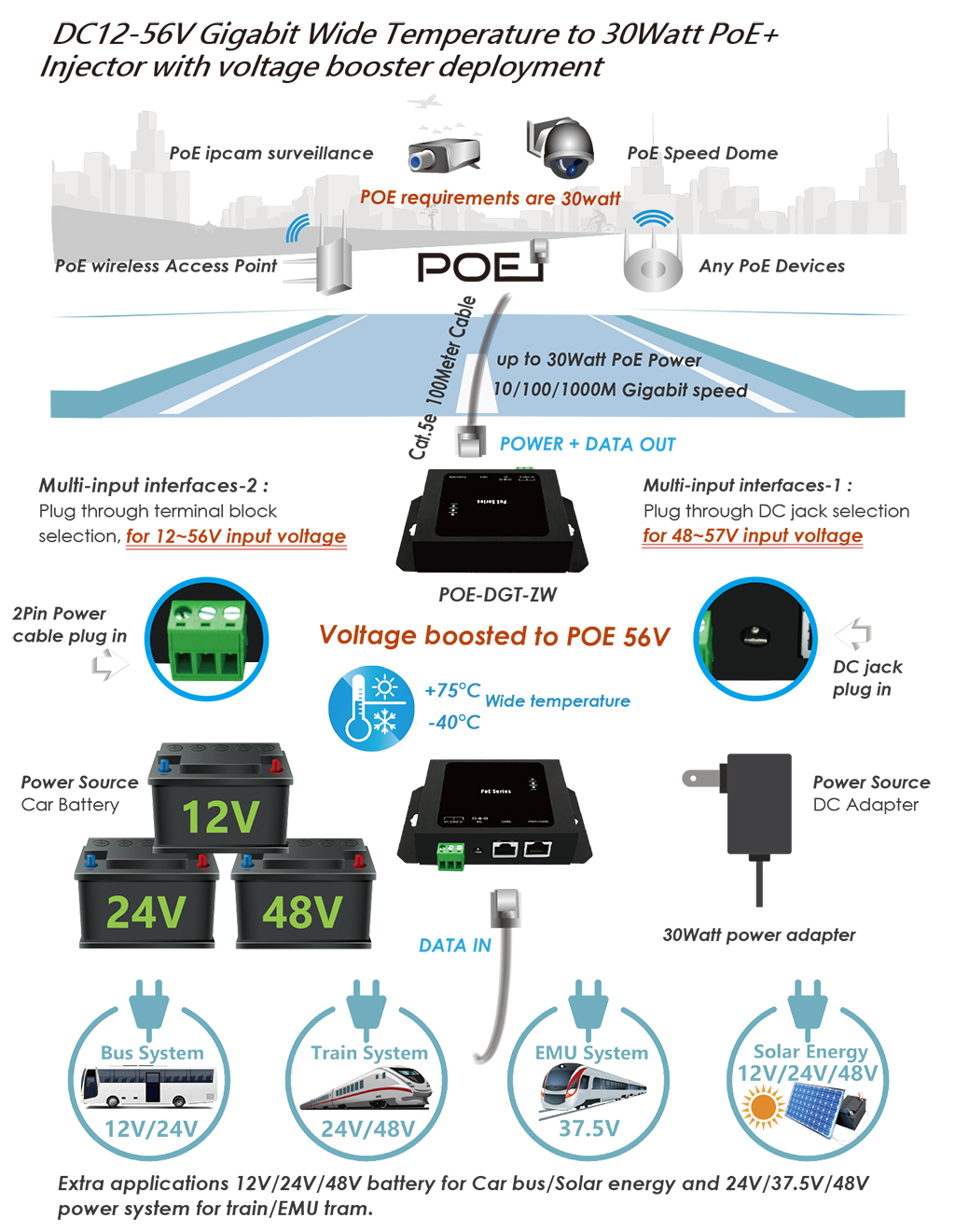

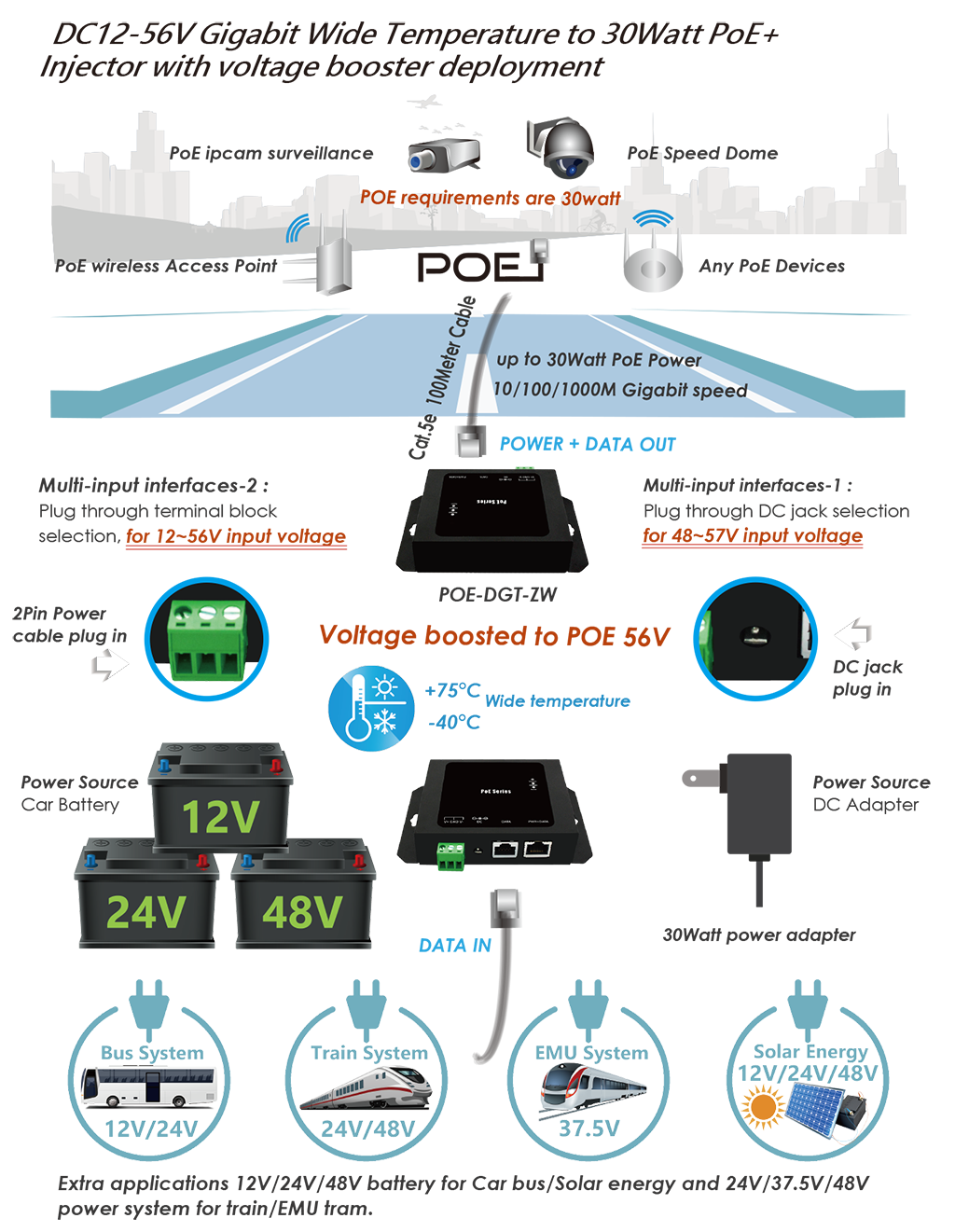

CERIO POE-DGT-ZW can receive power systems, such as 12V/24V/48V fixed or mobile battery or Solar panel through the Screw Terminal Block, then boost and conversion to 802.3af/at standard PoE 56V output to the PoE PD devices, and providing a perfect power over Ethernet solution for the battery, solar energy systems, and BUS/MRT/Trains transportation systems.
CERIO POE-DGT-ZW can use as a boost adapter for power over Ethernet application, also can be used with CERIO POE splitter which can receive network power + data, then separate to only DC/Power output and only Ethernet/Data output. It supports 12V, 19V and 24V DC output adjustable via DIP switch. For network devices that only support DC Input, it provides an economical and affordable solution.
|Standards & Hardware Specifications|
IEEE 802.3ab 1000BASE-T
IEEE802.3af Power over Ethernet (PoE)
IEEE802.3at Power over Ethernet (PoE+)
|Network Media||10BASE –T: UTP Cat. 3 or up
100BASE-TX : UTP Cat. 5 or up
1000BASE-T: UTP Cat. 5 or up
|Data Transfer Rate||10/100/1000Mbps (Half-duplex)
|PoE Type||Active POE|
|Data PIN||PIN 1/2,3/6 & 4/5,7/8|
|Power PIN||End-span (Type-A): PIN 1/2,3/6
Mid-span (Type-B): PIN 4/5,7/8
|Ethernet Connector||RJ-45 x1 : Data
RJ-45 x1 : Power + Data
|Power Interface||Output: RJ45 Active 802.3af/at PoE Out
Input: Screw Terminal Block In (Main PWR input using
for boost voltage system) & DC In (Extra PWR input
using for PoE constant voltage input)
|ESD Protection||Supports ESD (Electro Static Discharge)
Over Voltage protection and Short Circuit Protection
|Environmental & Mechanical Characteristics|
|Max Power Output||30Watts|
|Power Requirement||12~57V Power source|
|Input Voltage||Overall wide voltage range : DC 12 ~ 57V
Auto booster voltage range : DC 12 ~ 55V
( When using STB input for auto boosed voltage and conversion to 802.3af/at standard PoE 56V output)
PoE constant voltage range : DC 48~57V (When using DC Input)
|LED||System: Power (Green) x 1
PoE: End-span (Green) , Mid-span (Yellow ) x 2
|Operating Temperature||-40° to 75° C|
|Storage Temperature||-40° to 85° C|
|Operating Humidity||5% to 90% non-condensing|
|Storage Humidity||5% to 90% non-condensing|
|Dimension ( W x D x H )||130 x 82 x 27mm|
|Weight ( g )||235g|
|Form Factor||Desktop / Wall mounting installation|
|Case of material||Metal|
|Certifications||FCC ,CE, RoHs compatible|
|POE-DGT Main Unit||x 1|
|Quick Installation Guide||x 1|
|Warranty Card||x 1|
