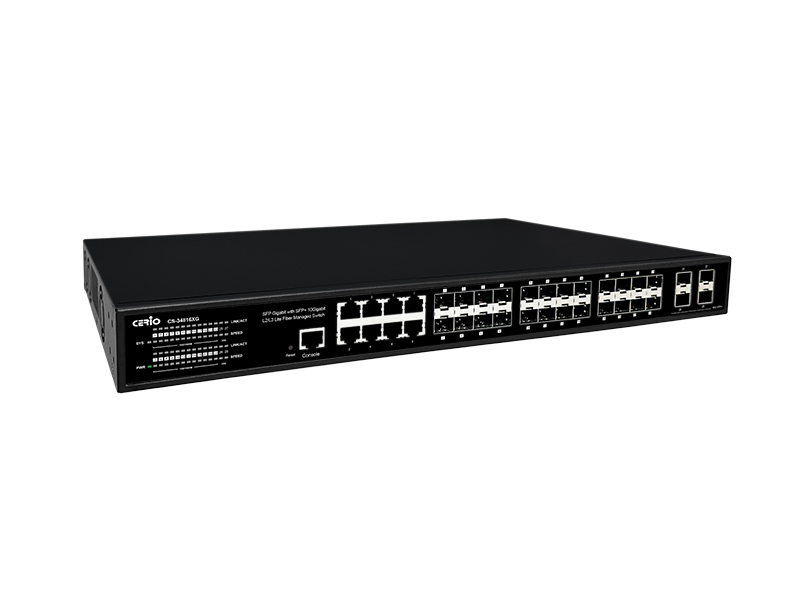

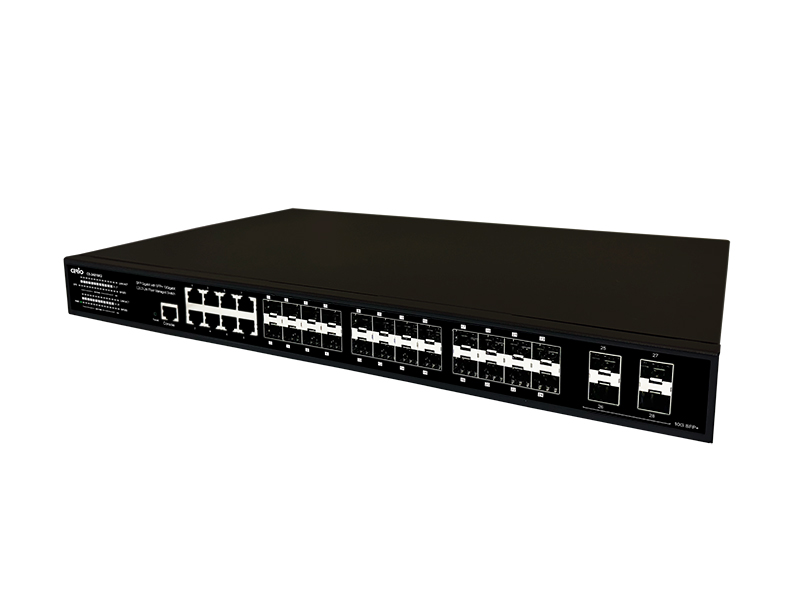

16 Port SFP Gigabit + 8 Combo Gigabit Ports Managed L2/L3 Lite Fiber Optical Switch with 4 SFP+ 10Gigabit Ports

CERIO CS-3000 Series Model : CS-34816XG is the latest powerful high-performance L2/L3 Lite Fiber Optical Switch, It built-in web-browser management interface allows the administrator to manage and obtain detailed information of the local area network conveniently. It supports up to 28 connection ports, including 16 of SPF Gigabit ports, 8 Combo Gigabit ports and 4 SFP+ 10Gigabit ports. Provide multi-interface connection options, including high-speed and low-speed connections, to meet the needs of various equipment and network central office integration deployment environments.

The CS-34618XG is designed for office deployment and can be upgraded to 1U” chassis for server room installation. It is suitable for the installation environment of the optical fiber interface in the central office and the network environment that requires high-speed connection and powerful management functions. With 8-port Combo Gigabit ports for connecting Mini GBIC 1000Base-SX/LX fiber optic modules or RJ45 Gigabit ports which administrators can flexible deployment, 16-port SFP Gigabit ports for downlink connection for long-distance IP fiber optic equipment and 4-port high-speed SFP+ 10Gigabit uplink port full-duplex uplink and total bandwidth up to 80Gbps. With a bandwidth capability of up to 128Gbps enhancing the stability, also can use this 10G port for stacking to expand the overall optical fiber integration capability of the central office. In network deployment, CS-34816XG can improve network management and efficiency for your customers. Up to 28 fiber ports capacity is suitable for the deployment of optical fiber central office integrated terminal switches, perfectly solution of central office deployment in the application of long-distance IP surveillance cameras, Including high-speed connection and non-blocking packet data forwarding. It is usually used as an optical fiber integrated core switch for medium and large network systems, such as small and medium data centers, campus networks, enterprise networks, etc., and high-speed, long-distance optical fiber data transmission.

he CS-34816XG provides STP/ RSTP/MSTP functions and add ITU-T protocol industrial carrier grade G.8032 ERPS function to prevent broadcast storms. The management functions including IEEE 802.1Q Tag/Port Based VLAN functions, IEEE 802.1p-based/Port-based QoS bandwidth control, WRR flow control, IGMP Snooping, Link Aggregation Control Protocol (LACP). It can expand the interconnection between multiple devices into a backbone link channel, and at the same time control the bandwidth management of layer 2 and loop detection and prevention (Bandwidth control / Loop Detection) and other large-scale enterprise network security management. Using UTP cable to transmit network data and power to POE PD powered devices (such as AP, IP CAM, etc.), which can solve the limitation of the power outlet locations and offer the system relocation convenience.

Highlight Features

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX, 802.3ae 10G SFP+ and IEEE 802.3az EEE standards.
  • Supports 16 of SPF Gigabit ports, 8 Combo Gigabit ports and 4 SFP+ 10Gigabit ports.
  • Supports Internal Bus Speed up to 128Gbps and the exchange rate over 95.24Mpps.
  • Full/Half-Duplex capability on each TX port, Auto-learning networking configurations.
  • Supports store & forward operation.
  • Supports flow control: back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode.
  • Non-blocking & Non-head-of-line blocking full-wire speed forwarding.
  • Supports TP interface Auto MDIX function for auto TX/RX swap.
  • Automatic Source MAC Address Learning and Aging.
  • Provides 10K Jumbo frames to improve network utilization of a large file transfers.
  • Supports up to 16K MAC addresses and 12Mb Packet buffer.
  • Supports Surge Protection 6KV on RJ45 to avoid the damage of the switch and connected devices.
  • Supports VLAN and IEEE 802.1Q tag-base VLAN based on ports & VIDs; add/remove/modify tag.
  • Supports Voice VLAN / MAC VLAN / Surveillance VLAN / Protocol VLAN and GVRP etc functions.
  • Supports Broadcast / multicast / unknown unicast storm control.
  • Provides IGMP snooping v1/v2/v3 function and supports MLD snooping and MVR functions.
  • Supports IEEE 802.3ad Link Aggregation LACP function.
  • Supports 802.1x protocol to support CHAP, EAP mode and port/MAC based network access control.
  • Supports RADIUS/TACACS+ and AAA Certificate function.
  • Supports MAC Address Table Management, It can grasp the MAC address which connected to the associated users and in case of set in or specified Port and VLAN group situation bind the MAC Address of the user’s PC or network host device.
  • Supports MAC/IPv4 and DHCP Client and IPv6 Internet Protocol, IPv6 Auto-configuration mechanism and DHCPv6 Client and other functions to facilitate the setting and management of IP addresses.
  • Supports DoS (Denial of Service) Defense for enhanced network security.
  • Firewall Dos supports POD, LAND, UDP Blat, TCP Blat, Null /X-Man Scan Attack, TCP SYN-FIN/SYN-RST Attack, Smurf Attack and other defense function.
  • Supports Link Layer Discovery Protocol (LLDP) and LLDP-MED.
  • Supports DHCP Snooping function to prevent access by unauthorized hosts and DHCP servers and supports DHCP Option 82 and Option82 Circuit ID provides additional security.
  • Support setting the number of MAC users, IP and MAC binding and access control list (ACL), according to the limit of each port, which can be filtered by MAC and IP address.
  • Supports QoS Quality of Service, Port-based QoS bandwidth management, 802.1q priority Tag based with 8 priority Queues and 8 Weights.
  • Supports bandwidth control to set control traffic limits (inflow and outflow) for each port.
  • Supports Port Mirroring function.
  • Supports IEEE 802.1D Spanning Tree Protocol (STP), including BPDU Filtering and BPDU guard functions and IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Spanning Tree Protocol (MSTP).
  • Supports Industrial Carrier Class ERPS(Ethernet Ring Protection Switching)helps to build a scalable Layer 2 converged network and achieve high reliability and network stability for service providers.
  • RMON (Remote Network Monitoring) provides network administrators with the ability to select networkmonitoring probes with features that meet their business network needs.
  • Supports IPSG (IP Source Guard) provides source IP address filtering on a Layer 2 port to prevent a malicious host from impersonating a legitimate host by assuming the legitimate host’s IP address.
  • Supports UDLD (Unidirectional link detection), which can monitor the link status and prevent network problems.
  • Support ACL (Access Control List), including MAC ACL, IPv4 ACL, IPv6 ACL and other security control functions.
  • Supports local time and PC synchronization, also can manually setting. Supports SNTP time server and network time synchronization, automatically adjust the host and update, easy to understand the problem and restore.
  • Supports Event Log, Alarm Log, Security Log, Network Log, and Protocol Log.
  • Supports GUI display for monitoring network data status by port, traffic analysis by port, and device CPU and Memory loading for convenient administrative network analysis and management.
  • Software management service supports setting Console / CLI / Telnet / SSH / HTTP /HTTPS/SNMP.
  • Supports Simple Network Management Protocol (SNMPv1/v2c/v3) Web-based management interface.
  • Support DHCP Server advanced functions include DHCP IP Pool, DHCP VLAN IP Address group setting, Client Static Binding management and table control. And display DHCP client status list.
  • Supports DNS Client and DNS Server functions, can be set to operate as a DNS Server at the same time.
  • Support IPv4/IPv6 Static Route and Loopback local loopback port function. Which can take port virtualization as the specified loopback address required by the Layer 3 router function. It can be quickly completed the advanced application of the layer3 network setting.
  • Supports Layer3 function ARP(Address Resolution Protocol)used to map MAC addresses to IP addresses.
  • Supports the Routing Information Protocol version 2 (RIPv2) to disseminate information through multicast, reducing resource consumption. This facilitates the identification of the complete state of the Layer3 link database.
  • Supports Open Shortest Path First version 2 (OSPFv2). When there are changes in the network topology, it can be utilized to rapidly recalculate paths in large and heterogeneous inter-segment environments. This enables the swift identification of the complete state of the Layer 3 link database within a shorter timeframe.
  • Supports the Virtual Router Redundancy Protocol version 2 (VRRPv2), enabling two gateways to function as redundant counterparts using a shared virtual IP gateway address. In the event of a failure in one of the gateway hosts, this setup ensures uninterrupted access to the Internet for local network users.

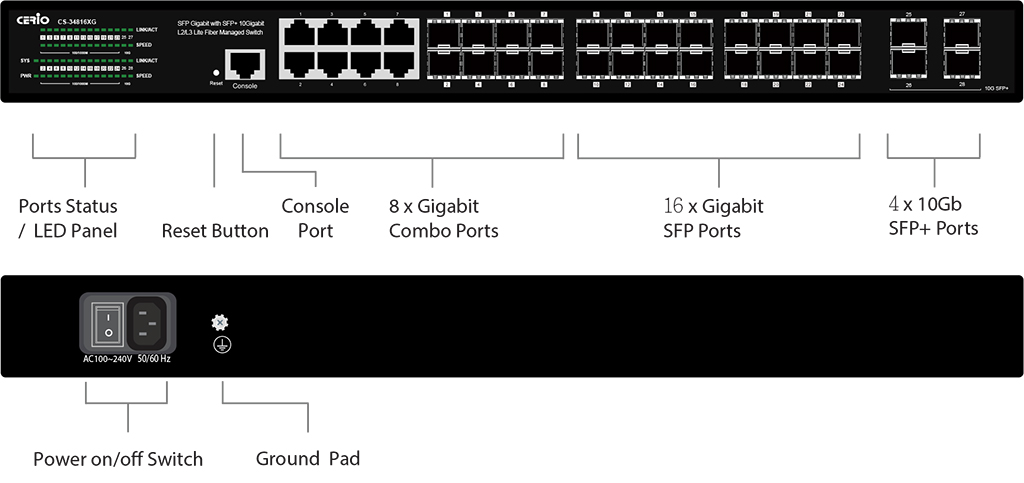

Hardware Overview



Standards & Hardware Specifications
Network Standards Conformance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX/LX
IEEE 802.3ae 10G SFP+
IEEE 802.3az EEE
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.1Q VLAN Tag
IEEE 802.3ad Link Aggregation
IEEE 802.1x Authentication
Port Configuration 16 SFP Gigabit Ports
8 Combo Gigabit (RJ45/SFP) Ports
4 SFP+ 10Gigabit Ports
1 RJ45 Console Port
Hardware Reset Reset button for returning to factory settings
Power Switch Hardware power on/off switch design
Grounding Port Metal case design supports surge grounding and grounding port.
Surge Protection Supports 6kV surge protection on RJ45 port.
ESD Protection Air : 15KV , Contact : 8KV
Media Access Protocol CSMA / CD.
Network Media 10BASE –T: UTP Cat. 3 or up,
100BASE-TX: UTP Cat. 5 or up,
1000BASE-T: UTP Cat. 5 or up
10GBASE-T: UTP Cat. 6 or up
Transmission Method Store and Forward
MAC Address Table 16K
Built-in Buffer 12Mb
Jumbo Frame 10K
Data Transfer Rate 10/100/1000Mbps (Half-duplex)
20/200/2000Mbps (Full-duplex)
10/20Gbps (Full-duplex)
LED Indicators Per port : Link/Activity Status x 24
Per port : 1000M/Gigabit Status x 24
10G SFP+: Link/Activity Status x 4
10G SFP+ Speed: 10G Status x 4
Per Unit: PWR x 1
Internal Bus Speed/Exchange Rate
Switch Specifications
Link Aggregation IEEE 802.3ad LACP Link Aggregation Supported
Port Mirror Supported
Quality of Service (QoS) Supports IEEE 802.1p QoS, Port-based QoS
Bandwidth Control Supported
UniDirectional Link Detection (UDLD) Supported
Spanning Tree Protocol (STP) IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IGMP Snooping Supports v1, v2, v3 and MVR
ACL Security Management Supports IPv4 / IPv6 and MAC management
VLAN IEEE 802.1Q Tagging VLAN , Port-Based ,Tag based VLAN
Virtual Network Management VLAN Supports Voice VLAN / MAC VLAN / Surveillance VLAN / Protocol VLAN and GVRP
Port Security Management Supports Broadcast / multicast / unknown unicast storm control
Authentication Security Protocol Supports RADIUS / TACACS+ and AAA
DHCP Security Detection Supports DHCP Snooping / DHCP Option 82/ Option82 Circuit ID
IPv6 Management Function Supports IPv6 Internet Protocol, IPv6 Autoconfiguration mechanism and DHCPv6 Client
Remote Network Monitoring (RMON) Supported
SNMP Supports SNMP v1/v2c/v3
SNTP Time Server Supported
Ethernet Ring Protection Switching (ERPS) Supported
L3/Static Route IPv4/IPv6 Static Route supported
L3/ Address Resolution Protocol (ARP) Support ARP advanced setting
L3/DHCP Server/ DNS Server IPv4 and IPv6 DHCP Server / DNS Server Supported
L3/ Routing Information Protocol (RIP) Supports RIPv2
L3/ Open Shortest Path First (OSPF) Supports OSPFv2
L3/Virtual Router Redundancy Protocol (VRRP) Supports VRRPv2
Environmental & Mechanical Characteristics
Power Type Power cord: Internal Power supply
Power Consumption 50 Watt
Power Requirement AC 100~240VAC, 50-60Hz Auto-sensing
Operating Temperature 0° to 50° C
Storage Temperature -40° to 70° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 10% to 90% non-condensing
Dimension ( W x D x H ) 440 x 280 x 44 mm
Weight 3.4Kg
Production Location TW
Certifications FCC, CE, RoHS-compliant
Package Content
CS-34816XG Main Unit x1
Power Cord x1
Console Cable x1
19” Rack Mount Brackets x1
Warranty Card x1
