FPOE-PE-60W

4Pair 60Watt Force Power Multi Gigabit PoE++ Injector

The CERIO FPOE-PE-60W is a Passive type Multi Gigabit PoE++ Injector. It provides DC 50-57V over Ethernet cables. Provides a reliable hardware solution for demanding of PoE++ Type3/Class5 45Watt and Class6 60Watt PoE power level PoE/PD powered devices. Simultaneously transmit network data and power to the PD equipment through the 4Pair UTP Ethernet Cable transmission. This Force Power PoE++ Injector series provides entry-level applications.


POE vs. Deployment Applications





Higlight Features

  • Supports 1/2.5/5Gbps Multi Gigabit Ethernet and Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T standard.
  • Supports PoE PSE/PD function and provides Passive PoE++ Type3 Class6 and backward power level for PD device.
  • Provides Force Power PoE++ output ability, and low cable-loss which can maintain 60Watt PoE power up to 100 meters distance.
  • Max Output power up to 60Watt power level.
  • Over Current Protection and Short-circuit Protection.
  • Supports desktop, wall mounting installation and multiple units combination easy to use.

Functionality

FPOE-PE-60W Force Power Multi Gigabit PoE++ Injector brings a great deal of convenience benefits to any environments. With latest Force High Power Hardware design through 4Pair UTP Ethernet Cable to delivery both data and power to PD device. It provides Passive PoE++ Type3 Class6 / 60Watt and Class5 / 45Watt power level for PD device, such as the “PoE IP Speed Dome PTZ CAM ” and “the latest WiFi 6 generation 802.11ax WiFi AP provide a stable high power PoE powered solution. The plug-and-play connection provides a best solution for where power outlets are not readily available and provides a cost-effective solution for high-speed security surveillance (CCTV System) and network planning.

Long Distance Application

Cerio Force Power Multi Gigabit PoE++ Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source (60Watt) and without cable-loss when using CAT 6 or up cabling.

ESD Protection

FPOE-PE-60W supports ESD, Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.

Additional Benefits

Some additional benefits of Cerio Force Power PoE++ Injector include cost saving, convenience in network planning, and higher reliability.

Easy installation

Plug-and-Play, requires no configuration.

Product Application

 Hardware Overview

Standards & Hardware Specifications
Standard IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBASE-T
Network Media  10BASE –T: UTP Cat. 3 or up
100BASE-TX: UTP Cat.5 or up
1G/2.5G/5GBASE-T : UTP Cat.5e or up
Data Transfer Rate 10M/100M/1G/2.5G/5G (Half-duplex),
20M/200M/2G/5G/10G (Full-duplex)
PoE Type Passive POE
Data PIN PIN 1/2 , 3/6 & 4/5 , 7/8
Power PIN End-span (Type-A): PIN 1/2,3/6
Mid-span (Type-B): PIN 4/5,7/8

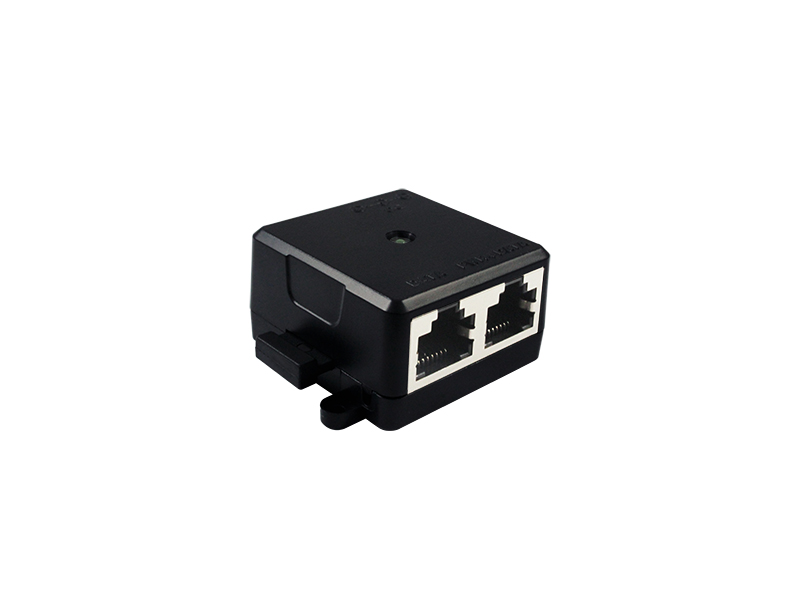

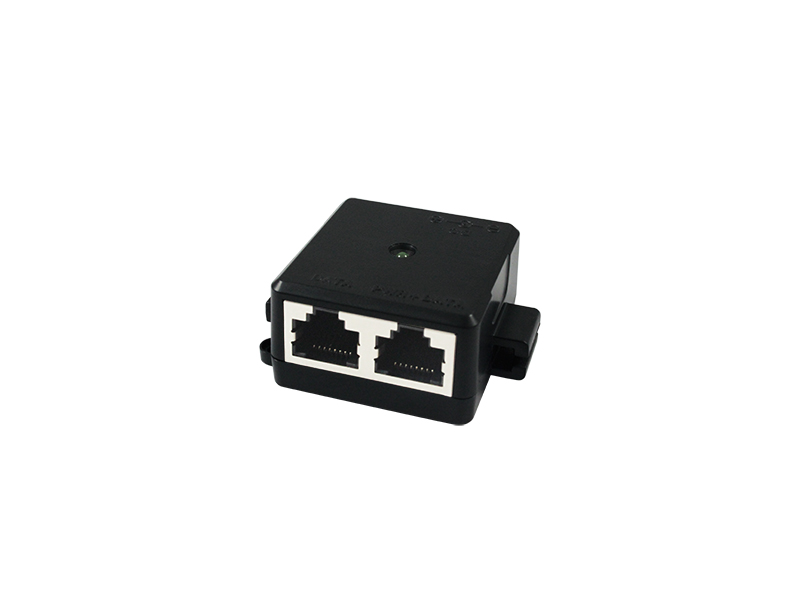

Ethernet Connector RJ-45 x1 : Power + Data

RJ-45 x1 : Data

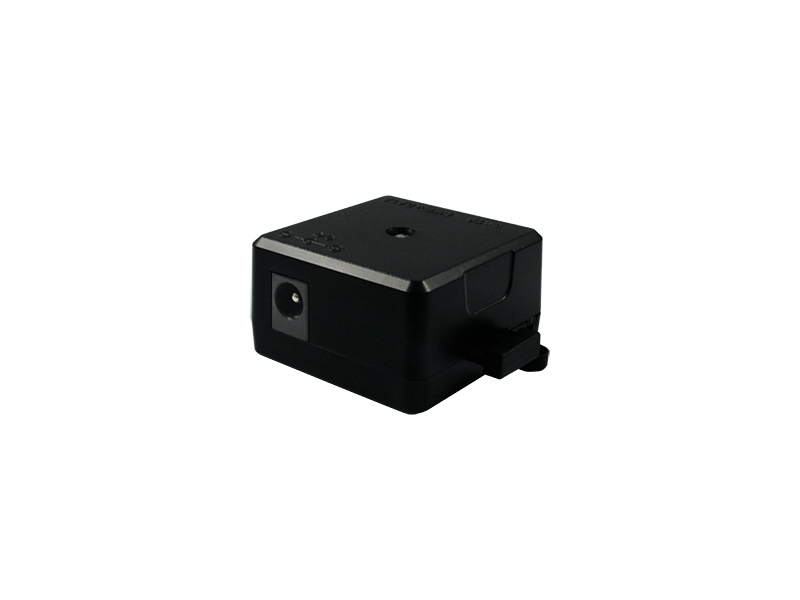

Power Connector(Interface) DC Jack
ESD Protection Supports ESD (Electro Static Discharge)
Over Voltage protection and Short Circuit Protection
Environmental & Mechanical Characteristics
Max Power Output 60Watts
Power Requirement 56V 60Watt External Power Supply
Input Voltage 50 ~ 57Volt
Cable and Power Loss @ 100Meter : Keep power source ability (60Watt)with Cat.6 or up Cable
@ 100Meter : “ 14Watt “ with Cat.5e Cable

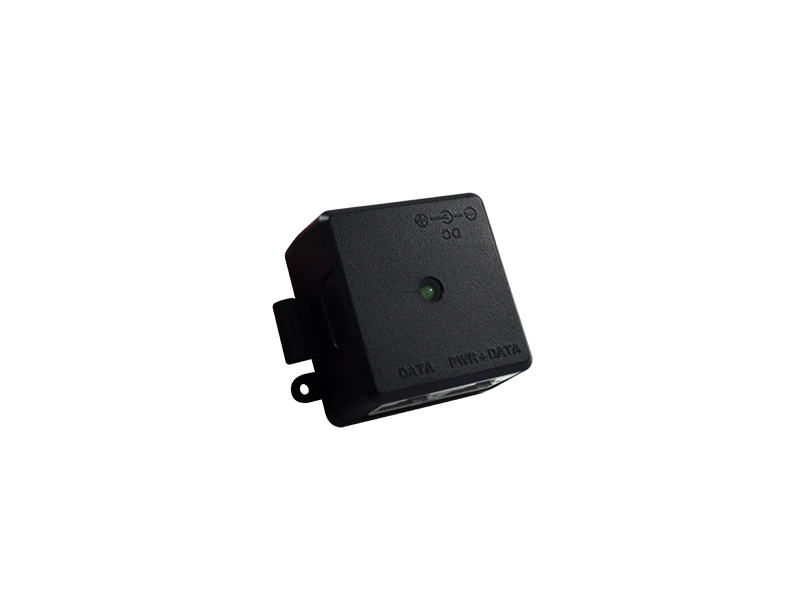

LED System LED: Power (Green) x1
Operating Temperature 0° to 55° C
Storage Temperature -40° to 70° C
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing
Dimension ( W x H x D ) 54mm*41mm*23mm
Weight ( g ) 29.8g
Form Factor Desktop/Wall mounting / Units Combination
Case of material ABS
Production Location TW
Certifications FCC ,CE, RoHs compatible
Package Content
FPOE-PE Main Unit x1
60Watt Power Adapter x1
Warranty Card x1
