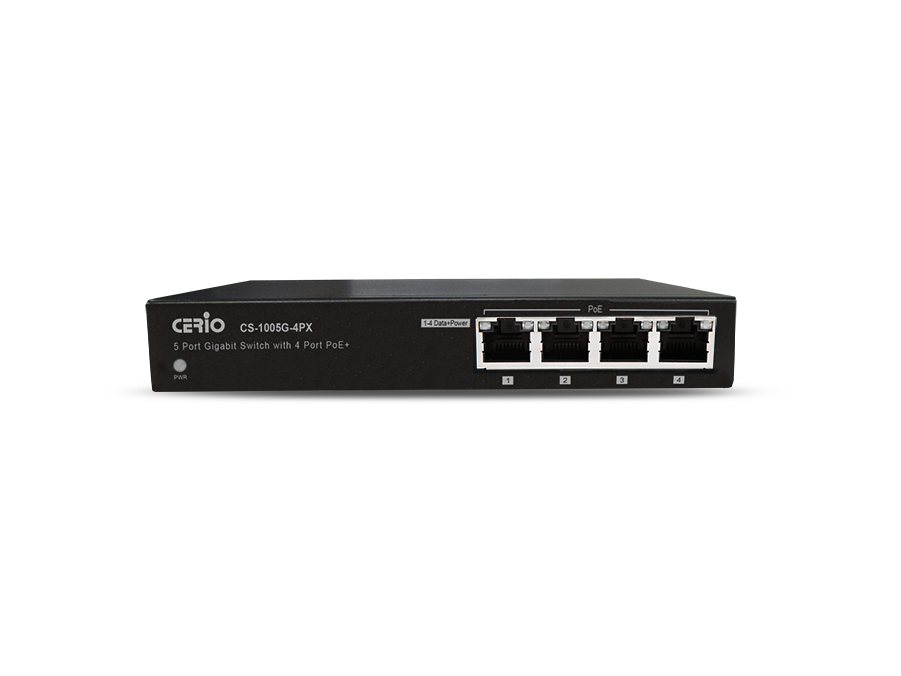

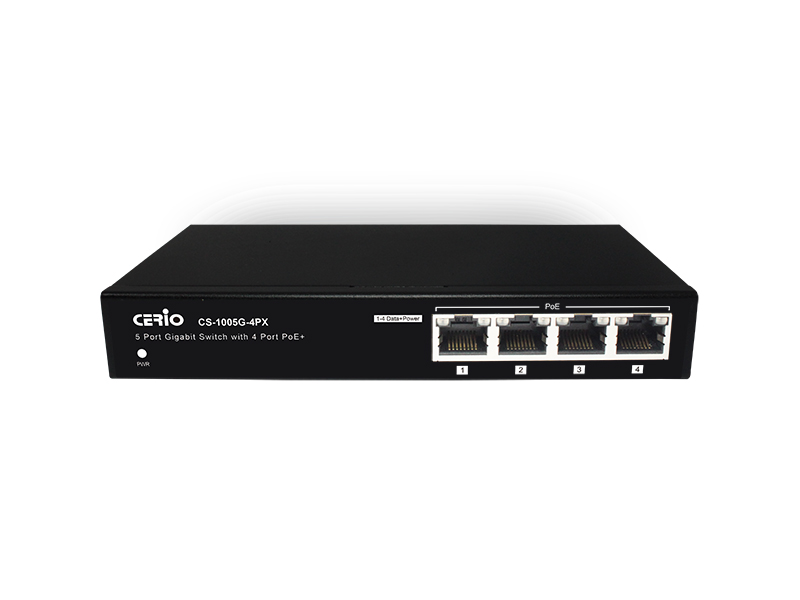

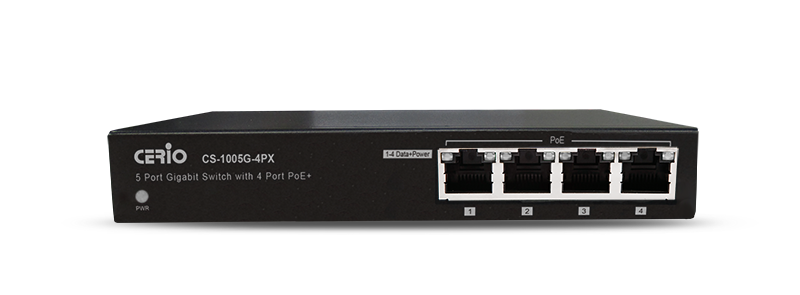

5 Port 10/100/1000M Gigabit Switch with 4 Port PoE+ ( 65Watt Power )

The CERIO CS-1005G-4PX is a powerful and complying with IEEE 802.3af/at Power over Ethernet standard which provides DC 48~57V Gigabit over Ethernet cables high-performance Gigabit Ethernet switch, with all 5 ports capable of 10/100Mbps or 1000Mbps autonegotiation operation which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. Moreover, the 10/100/1000Mbps autosensing ability provides an easy way to migrate 10Mbps to 1000Mbps network with no pain.

The CS-1005G-4PX supports 4 Port 10/100/1000M Gigabit port Power over Ethernet (PoE+) allows you to expand your network via Ethernet cable to where there is no power line or outlet but where you want to fix devices such as APs, IP Cameras or IP Phones, etc.. No longer need to worry about the complicated cables and long distance which may cost you a lot of time and money. By integrating the data transmitting cable and power cord, it eliminates the effort constructing your network. Over current protection and circuit shorting protection are also supported to ensure the safety. It also support desk top and wall mounting for easy installation.

Highlight Features
  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af PoE ,IEEE 802.3at PoE+.
  • 5 Ports 10/100/1000Mbps Auto-Negotiation Gigabit Switch, including 4 Ports PSE/ PoE+ function, complying with IEEE 802.3af/at standard.
  • Supporting the power up to 30Watt/15.4Watt/ 7.5Watt/4Watt for each PSE/PoE+ port with bundle 65Watt Power Adapter and have 60Watt share for 4 PoE ports (Only POE Port 1-4).
  • Bundle with 65W external power adapter which supports interchangeable plug (optional), which can meet the needs of international power plug applications.
  • Full/Half-Duplex capability on each TX port.
  • Supports Store & Forward architecture and performs forwarding and filtering Auto-learning networking configurations.
  • Supporting the flow control: back pressure for Halfduplex and IEEE 802.3x for Full-duplex mode.
  • Broadcast storm control and supporting store & forward operation.
  • Support Jumbo Frame 9K.
  • Non-blocking & Non-head-of-line blocking full-wire speed forwarding.
  • Supports TP interface Auto MDIX function for auto TX/RX swap.
  • Automatic Source MAC Address Learning and Aging.
  • Supports up to 2K MAC addresses.
  • Up to 1Mb bits buffer.

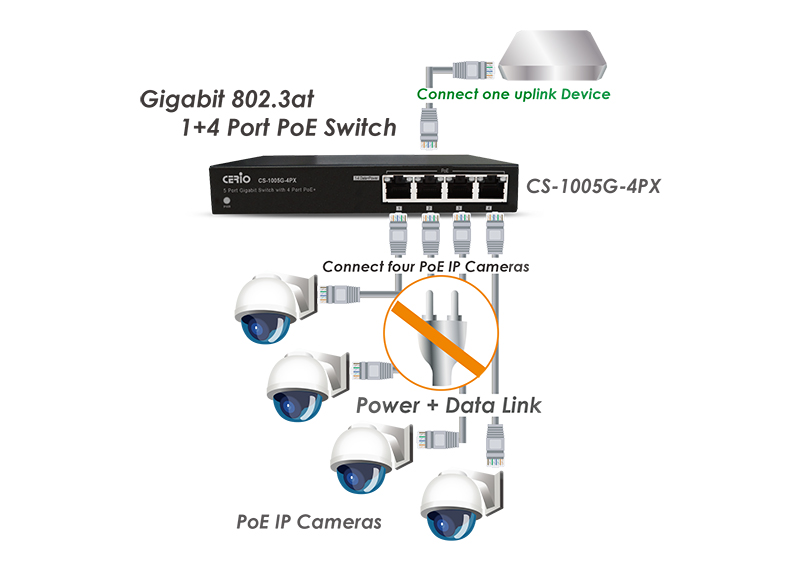

Product Application

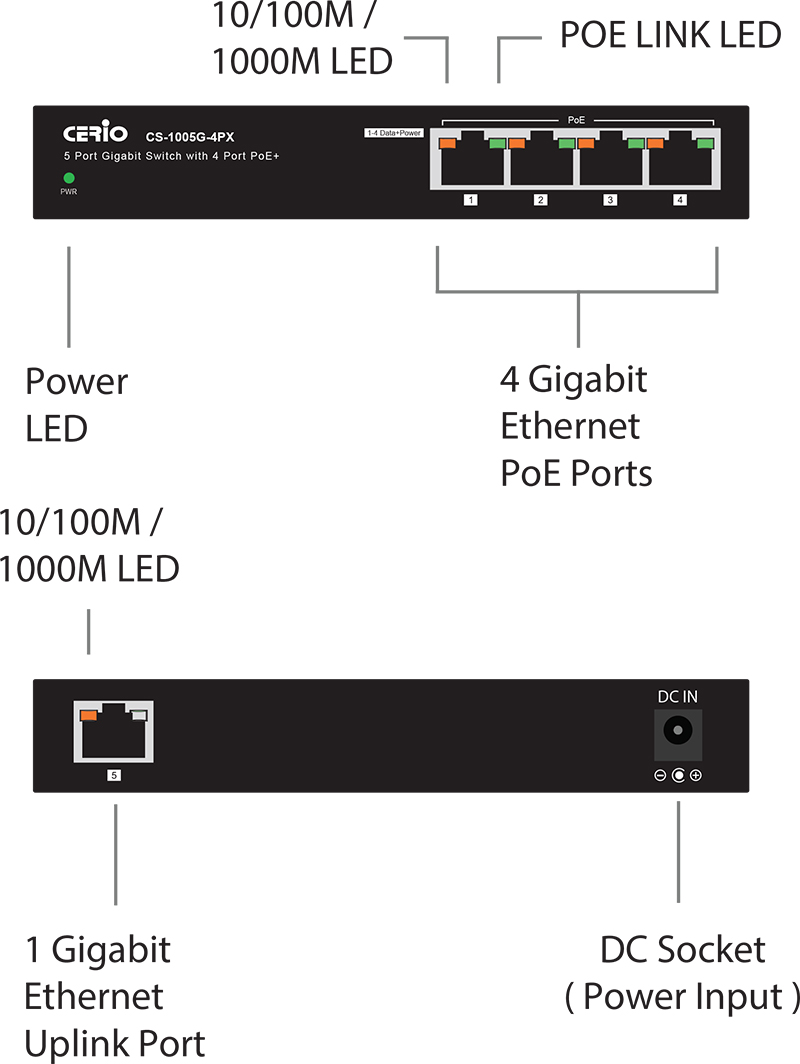

Hardware Overview



Standards & Hardware Specifications
Network Standards Conformance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T,
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
Port Configuration 5ports RJ-45 connectors for 10/100/1000Mbps
(With 4 Ports PSE/ PoE+ function )
DIP Switch Support 10Mbps /280m transition function for PoE ports (Per port DIP switch control)
Media Access Protocol CSMA / CD
Network Media 10BASE –T: UTP Cat. 3 or up,
100BASE-TX: UTP Cat. 5 or up,
1000BASE-T: UTP Cat. 5 or up
Transmission Method Store and Forward
MAC Address Table 2K
Built-in Buffer 1Mb
Jumbo Frame 9K
Data Transfer Rate 10/100/1000Mbps (Half-duplex),
20/200/2000Mbps  (Full-duplex)
LED Indicators Per Gigabit Port:(Link/Act): Status x 5
PoE : Status x 4
Per Unit: Power x 1
Internal Bus Speed 10Gbps
Environmental & Mechanical Characteristics
Power Supply 65Watt External Power Adapter
(After 2021/06 production with 65Watt power supply supported)
PoE Power Budget 60Watt shared for all PoE Ports
Power Consumption 1.5 Watt
PoE Power Output Up to 30W per port (for Ports 1-4 Only )
Power Requirement DC In : Input Voltage: 48 ~ 57Volt
Operating Temperature 0° to 55° C
Storage Temperature -40° to 70° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing
Dimensions ( W x H x D ) 160 x 85 x 25mm
Unit Weight 0.345kg
Case of Materials Metal
Production Location TW Only
Certifications FCC, CE, RoHS-Compliant
Package Contents
CS-1005G-4PX Main Unit x1
Quick Installation Guide Booklet x1
Power Adapter x1
Warranty Card x1
