CS-1216G-8P8T

16 Port Gigabit PoE++ ( 8 Port AT PoE + 8 Port BT PoE ) Switch with 2 SFP Ports ( 450Watt Power )

CERIO CS-1216G-8P8T is the latest powerful highperformance 16 port PoE Gigabit switch and supports 2 Gigabit SFP uplink ports. I It is including 8ports of AT PoE and 8ports of BT PoE and compliant with IEEE 802.3bt, IEEE 802.3at and 802.3af PoE standards. It defines new green power saving idea on the PoE/PSE Port. It’s built-in 450watt internal power supply. All 16 ports capable of 10/100/1000Mbps autonegotiation operation (NWay). This means the switch could automatically negotiate with connected partners on the network speed and duplex mode.

CS-1216G-8P8T PoE Switch is designed for SMB deployment and can also be upgraded to 1U” chassis for standard rack mounting. It is suitable for setting up surveillance systems in small offices, shops, restaurants, and multi-node network environments, etc., providing convenient and reliable network power supply and data transmission. It’s supporting a maximum PoE output budget of 400 Watt shared for 8 ports of AT PoE and 8 ports of BT PoE and enough to reliably power devices on all ports.Using UTP Cable to transmit network data and power signals to PoE PD devices (such as POE AP, IP CAM, IP Phone, etc.), so you don’t have to worry about the traditional problem of installing a power socket. , easily use PoE to build your network environment.

By integrating the data transmitting cable and power cord, it eliminates the hassle of constructing your network. You could easily connect Wireless AP or VoIP phone or IP Camera to this switch without looking for power outlets. Over current protection and circuit shorting protection are also supported to ensure product safety.

Highlight Features

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt PoE++ standards.
  • 16port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch, supports 16 Port Gigabit PSE / PoE function and compliant with IEEE 802.3af /at/bt PoE standards.
  • Supports 2 Gigabit SFP uplink ports and compliant with IEEE 802.3z 1000Base-SX/LX standards.
  • Supporting 8ports AT PoE power up to 30Watt and 8ports BT PoE power up to 90Watt.
  • Built-in 450 Watt power supply, supports a maximum PoE output budget of 400 Watt, shared for 16 ports of 10/100/1000M PoE ports.
  • Full/Half-Duplex capability on each TX port, Auto-learning networking configurations.
  • Supports Store & Forward architecture and performs forwarding and filtering.
  • Flow control: back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode.
  • Support Jumbo Frame 9K.
  • Non-blocking & Non-head-of-line blocking fullwire speed forwarding.
  • Supports TP interface Auto MDIX function for auto TX/RX swap.
  • Automatic Source MAC Address Learning and Aging. Supports up to 8K MAC addresses, Up to 4.1Mbits buffer.
  • Supports hardware LED Loop Detectors function, the system can quickly display color differences of LED according to any connection port where a loop occurs.

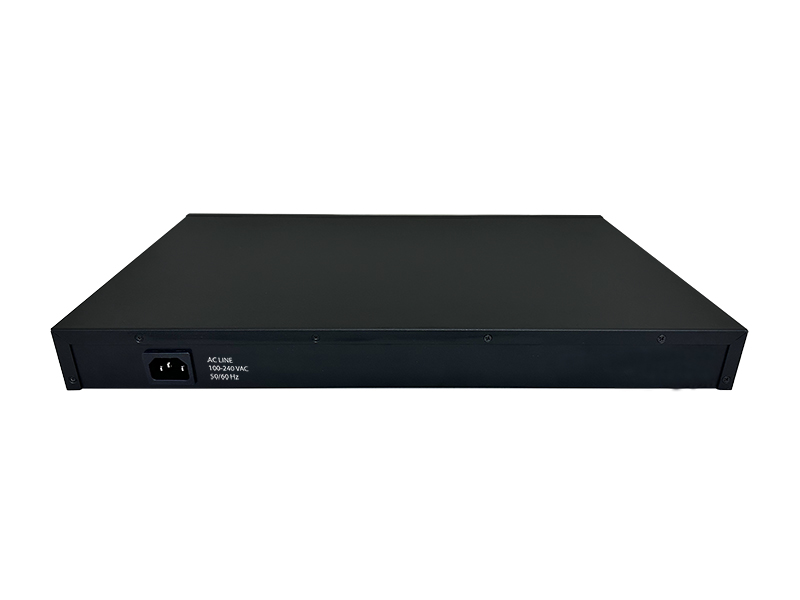

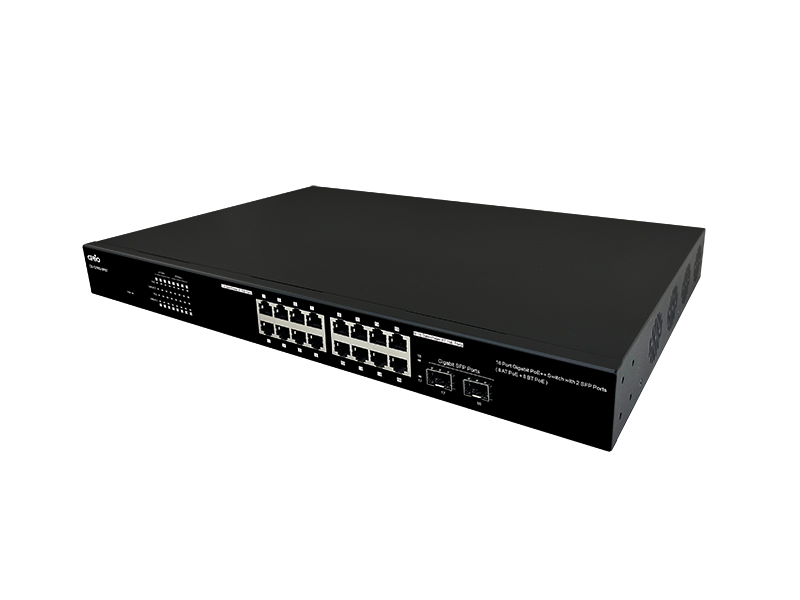

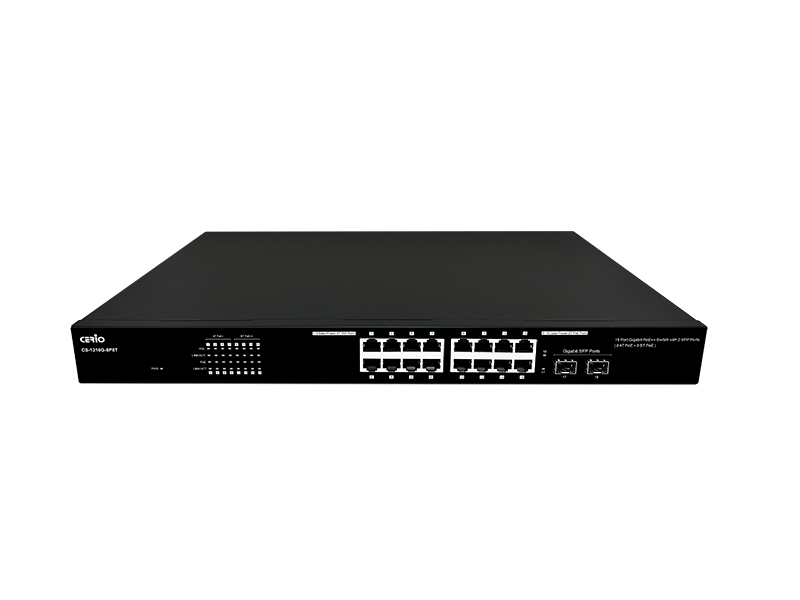

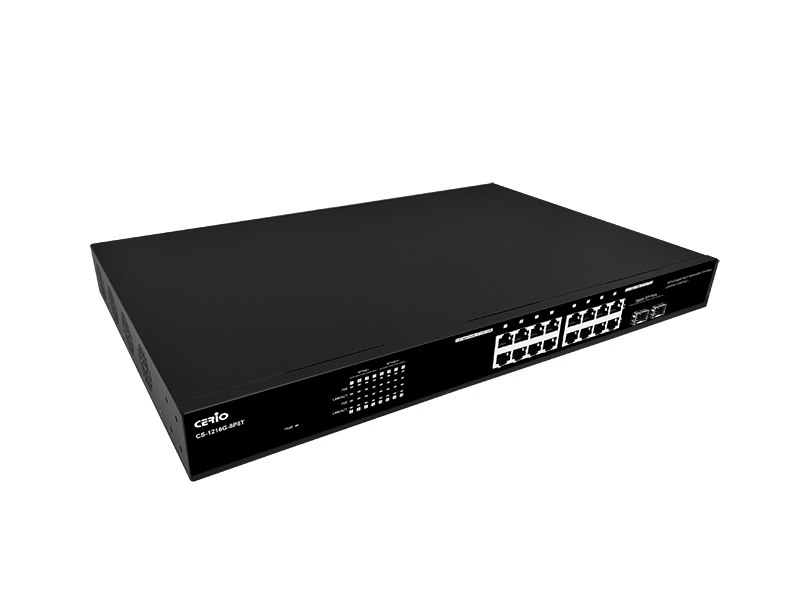

Hardware Overview

CS-1216G-8P8T Specifications

Standards & Hardware Specifications

Network Standards Conformance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T,
IEEE 802.3az Energy Efficient Ethernet- EEE
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3bt Power over Ethernet Plus Plus (PoE++)
Port Configuration 16ports RJ-45 connectors for 10/100/1000Mbps
(With 8port AT PSE and 8port BT PSE/PoE function)

2 ports Gigabit SFP
Media Access Protocol CSMA / CD
Network Media 10BASE –T: UTP Cat. 3 or up,
100BASE-TX: UTP Cat. 5 or up,
1000BASE-T: UTP Cat. 5 or up
Transmission Method Store and Forward
MAC Address Table 8K
Built-in Buffer 4.1Mb
Jumbo Frame 9K
Data Transfer Rate 10/100/1000Mbps (Half-duplex),
20/200/2000Mbps  (Full-duplex)
Auto MDI/MDIX Yes
LED Indicators Per Port : Link/ACT Status x 16
Per Port: 1000M/Gigabit Status x 16
Per Port: PoE Status x 16
Per Unit: PWR x 1
Per Unit: SFP Ports x 2
Internal Bus Speed / Exchange Rate 36Gbps / 26.784Mpps
Environmental & Mechanical Characteristics
Power Type 450 Watt Internal Power Supply
PoE Power Budget 52V for 400 Watt (shared for all 16 PoE ports)
Power Consumption 14.9 Watt
PoE Power Output Up to 30W per port (1-8 port support AT PoE output)
Up to 90W per port (9-16 port support BT PoE output)
Power Requirement AC 100~240V AC, 50-60Hz Auto-sensing
Operating Temperature 0° to 40° C
Storage Temperature -40° to 70° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing
Dimensions ( W x H x D ) 441 x 281 x 44 mm
Unit Weight 3.62kg
Case of Material Metal case
Production Location TW
Certifications FCC, CE, RoHS-Compliant
Package Contents
CS-1216G-8P8T Main Unit x1
Power Code x1
Quick Installation Guide Booklet x1
19” Rack Mount Brackets x1
Warranty Card x1
