CS-2424G A3

24 Port 10/100/1000M Gigabit Web Managed Switch with 4 Combo Gigabit Ports

CERIO CS-2000 Series Model: CS-2424G latest A3 version is a powerful high-performance 4 Combo Gigabit with 24 port 10/100/1000Mbps web managed switch and supports Remote control and management through a web-based User Interface. This Layer 2 Web Managed switch supports Spanning Tree / Rapid Spanning Tree protocol, Port base IEEE 802.1Q VLAN Tagging, IGMP snooping, IEEE 802.1p port-based QoS, and Bandwidth control / Loop Detection. CS-2424G A3 version with high performance gigabit design provides reliable performance and allows for easy management of auto-negotiation speeds.

The CS-2424G A3 version Web Managed Switch is ideal for minimizing network downtime, connecting subnets for improved performance, and enabling the bandwidth demanded for multimedia and imaging applications. The CS-2424G A3 version effectively reduces operational costs by allowing network administrators to remotely access and monitor their network, ultimately eliminating the need for constant on-site maintenance staff. CS-2424G A3 version’s layer 2 web managed design also increases network security by providing enhanced network control through port management and visible MAC table addresses/clients. This device’s high feature and high performance design, paired with an easy to use web interface, effectively improves both network management and efficiency for medium and large sized applications.

CS-2424G A3 version is a feature packed web managed gigabit switch, providing enterprise grade function at a competitive price point. Deploying CS-2424G A3 version in your network can provide network organization and improved efficiency for your devices and clients. CERIO’s web-managed switches offer convenient configuration which ultimately provides premium performance, easy installation, and is sure to meet the increasing demands of growing networks.

Highlight Features

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3az EEE.
  • 24 port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch.
  • Supports 4 Combo Gigabit UTP/SFP uplink ports for high-speed RJ45 Gigabit Uplink and MiniGBIC 1000Base-SX/LX fiber uplink for long-distance network applications.
  • Full/Half-Duplex capability on each TX port, Autolearning networking configurations.
  • Supports store & forward operation.
  • Supporting the flow control: back pressure for Halfduplex and IEEE 802.3x for Full-duplex mode.
  • Non-blocking & Non-head-of-line blocking full-wire speed forwarding.
  • Supports network interface Auto MDIX function for auto TX/RX swap.
  • Automatic Source MAC Address Learning and Aging.
  • Provides 9.6K Jumbo frames to improve network utilization of a large file transfers.
  • Supports up to 8K MAC addresses.
  • Up to 4Mb Packet Buffer size.
  • VLAN and IEEE802.1Q tag-base VLAN based on ports & VIDs; add/remove/modify tag.
  • Supports Voice VLAN / MAC VLAN and GVRP.
  • Supports Broadcast / multicast / unknown unicast storm control.
  • Provides IGMP snooping v1/v2/v3 function and supports MLD snooping and MVR.
  • IEEE802.3ad Link Aggregation LACP.
  • Supports Bandwidth Control with KB/s size control.
  • Supports 802.1x protocol to support CHAP, EAP mode and port/MAC based network access control.
  • Supports RADIUS/TACACS+ and AAA Certificate function.
  • Supports MAC Table Management.
  • Supports MAC/IPv4 and IPv6 ACL security management.
  • Supports DoS (Denial of Service) Defense for enhanced network security.
  • Firewall Dos supports POD, LAND, UDP Blat, TCP Blat, Null /X-Man Scan Attack, TCP SYN-FIN/SYNRST Attack, Smurf Attack and other defense function.
  • Link Layer Discovery Protocol (LLDP).
  • Supports Dual Image function, which can shorten the downtime during the switch firmware upgrade or downgrade, and supports Active firmware image, Backup firmware image security backup mechanisms..
  • Supports DHCP Snooping function to prevent access by unauthorized hosts and DHCP servers and supports DHCP Option 82 provides additional security.
  • Each port supports limiting the number of MAC Addresses with IP and MAC address Binding.
  • Supports QoS Quality of Service, Port-based QoS bandwidth management, 802.1q priority Tag based with 8 priority Queues and 8 Weights.
  • Supports bandwidth control to set control traffic limits (inflow and outflow) for each port.
  • Supports Port Mirroring function.
  • Supports Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP).
  • Support proxy DNS server, SNTP time server network time synchronization function, it can automatically adjust the host to update the time, easy to understand the problem and restore.
  • Supports Event Log, Alarm Log, Security Log, Network Log, and Protocol Log.
  • Supports file backup and recovery.
  • Software management service supports setting Console / Telnet / SSH / HTTP /HTTPS/SNMP.
  • Supports GUI display for monitoring network data status by port, traffic analysis by port, and device CPU and Memory loading for convenient administrative network analysis and management.
  • Supports web-based HTTP web management user interface and supports SNMP v1/v2c/v3.

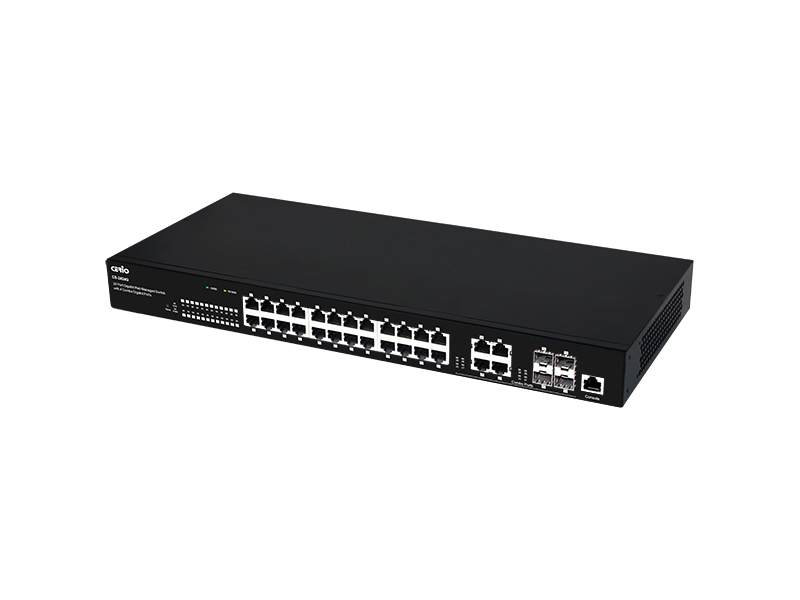

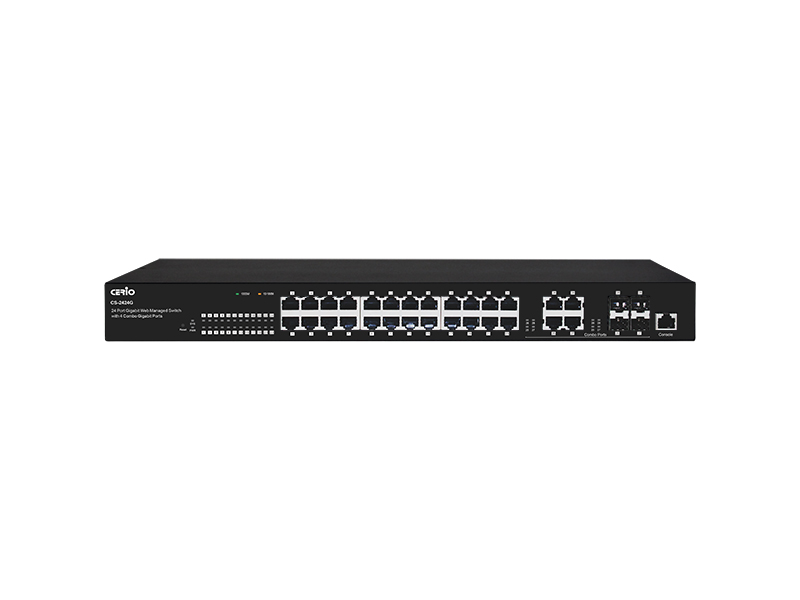

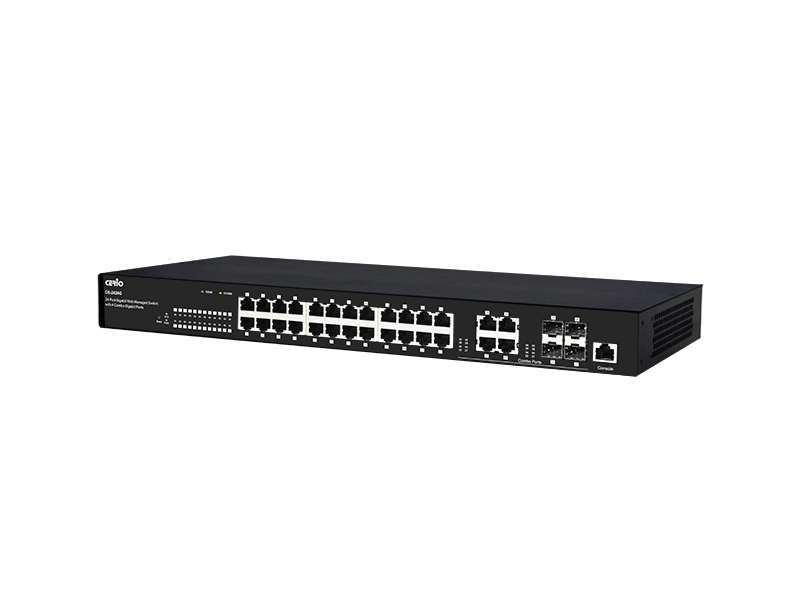

Hardware Overview

Jumbo Frames9.6k

Standards & Hardware Specifications
Network Standards Conformance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX/LX
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az EEE
IEEE 802.1Q VLAN Tag
IEEE 802.3ad Link Aggregation
Port Configuration 24 ports RJ-45 connectors for 10/100/1000 BASE-TX
4 Combo Gigabit Ports (RJ45 / SFP)
1 RJ45 Console Port
Hardware Reset Reset button for returning to factory settings
Surge Protection Support 6kV surge protection on RJ45 port
Media Access Protocol CSMA / CD
Network Media 10BASE –T: UTP Cat. 3 or up
100BASE-TX: UTP Cat. 5 or up
1000BASE-T: UTP Cat. 5 or up
Transmission Method Store and Forward
MAC Address Table 8K
Built-in Buffer 4Mb
Data Transfer Rate 10/100/1000Mbps (Half-duplex),
20/200/2000Mbps (Full-duplex)
LED Indicators Per Port: Link / Activity Status x24
Gigabit Combo Port: RJ45 Connection Status x4
Gigabit Combo Port: SPF Connection Status x4
Per Unit: (PWR) x1
Per Unit: (SYS) x1
Internal Bus Speed 56Gbps
Switch Specifications
Link Aggregation IEEE802.3ad LACP Link Aggregation Supported
Port Mirror Supported
Quality of Service (QoS) Supports IEEE 802.1p QoS, Port-based QoS
Bandwidth Control Supported
Spanning Tree(STP) Supported
Rapid Spanning Tree(RSTP) Supported
Multiple Spanning Tree Protocol (MSTP) Supported
IGMP Snooping Supports v1, v2, v3 and MVR
ACL Supports IPv4 / IPv6 and MAC Management
DHCP Supports DHCP Snooping / DHCP Option 82 / Option82 Circuit ID
IPv6 Management Function Supports IPv6 Internet Protocol, IPv6 Autoconfiguration mechanism and DHCPv6 Client
Dual Image Function Supports Dual image, Active firmware image and Backup firmware image
SNTP Time Server Supported
VLAN IEEE802.1Q Tagging VLAN , Port-Based ,Tag based VLAN
SNMP Supports SNMP v1/v2c/v3
Authentication Security Protocol Supports RADIUS / TACACS+ and AAA
Virtual Network Management VLAN Supports Voice VLAN / MAC VLAN and GVRP
Port Security Management Supports Broadcast / multicast / unknown unicast storm control
Environmental & Mechanical Characteristics
Power Consumption 6.5Watt

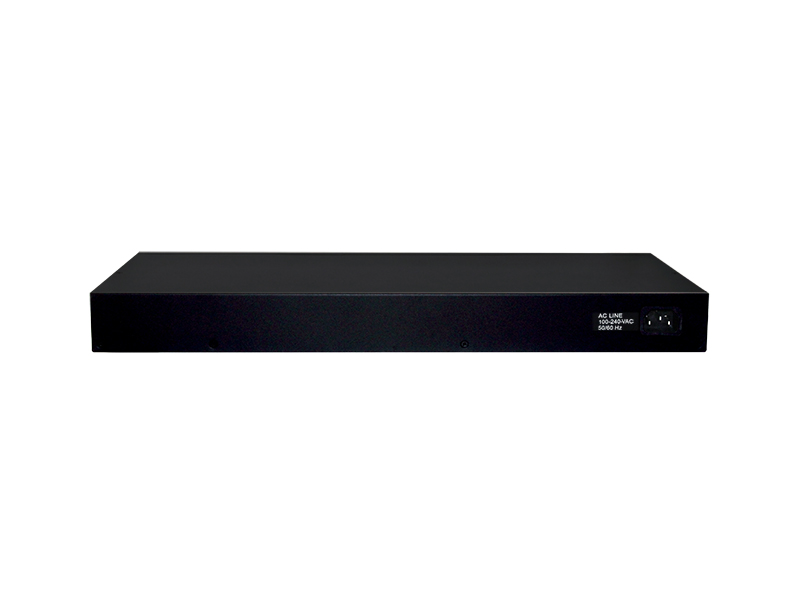

Power Type Power cord: Internal Power supply
Power Requirement AC 100~240VAC, 50-60Hz Auto-sensing
Operating Temperature 0° to 50° C
Storage Temperature -40° to 70° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 10% to 90% non-condensing
Dimension ( W x D x H ) 441 x 195 x 44 mm
Weight 2.6Kg
Production Location TW or CN
Certification FCC, CE, RoHS-compliant
Package Content
CS-2424G Main Unit x1
19” Rack Mount Brackets x1
Power Cord x1
Warranty Card x1
