CS-2648XG

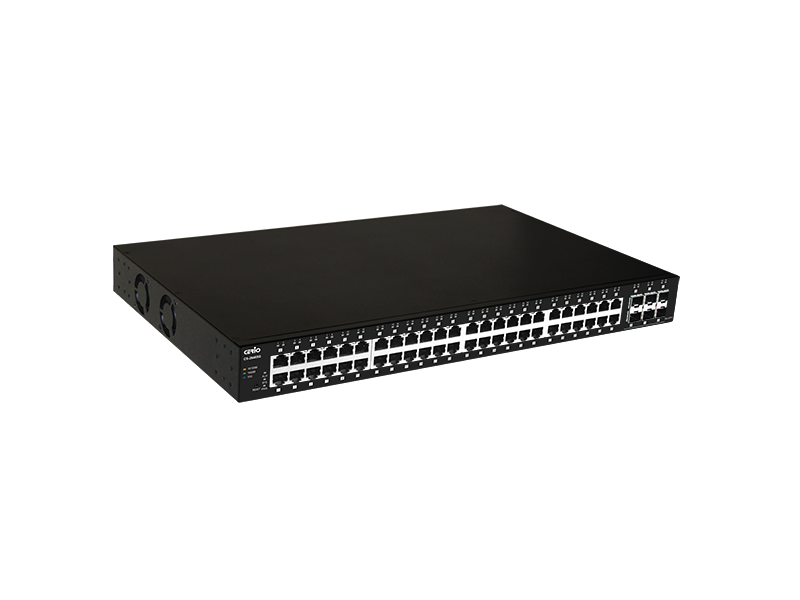

CERIO CS-2000 Series Model: CS-2648XG is latest powerful high-performance 6 SFP+ 10Gigabit with 48 port 10/100/1000Mbps web managed switch and supports Remote control and management through a web-based User Interface. This Layer 2 Web Managed switch supports Spanning Tree / Rapid Spanning Tree protocol, Port base IEEE 802.1Q VLAN Tagging, IGMP snooping, IEEE 802.1p port-based QoS, and Bandwidth control / Loop Detection. CS-2648XG with high performance gigabit design provides reliable performance and allows for easy management of auto-negotiation speeds.
The CS-2648XG Web Managed Switch is ideal for minimizing network downtime, connecting subnets for improved performance, and enabling the bandwidth demanded for multimedia and imaging applications. The CS-2648XG effectively reduces operational costs by allowing network administrators to remotely access and monitor their network, ultimately eliminating the need for constant on-site maintenance staff. CS-2648XG supports layer 2 web managed design also increases network security by providing enhanced network control through port management and visible MAC table addresses/clients. This device’s high feature and high performance design, paired with an easy to use web interface, effectively improves both network management and efficiency for medium and large sized applications.
CS-2648XG is a feature packed web managed gigabit switch, providing enterprise grade function at a competitive price point. Deploying CS-2648XG in your network can provide network organization and improved efficiency for your devices and clients. CERIO’s web-managed switches offer convenient configuration which ultimately provides premium performance, easy installation, and is sure to meet the increasing demands of growing networks.
Highlight Features
- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3ae SFP+, IEEE 802.3az EEE standards.
- Supports 48 port 10/100/1000Mbps TX Auto-Negotiation Ethernet Switch.
- Supports 6 SFP+ 10Gigabit uplink ports for long-distance network applications.
- Support system overheating or voltage error safety mechanism through LED alarm.
- Full/Half-Duplex capability on each TX port, Auto-learning networking configurations.
- Supports store & forward operation.
- Supporting the flow control: back pressure for Halfduplex and IEEE 802.3x for Full-duplex mode.
- Non-blocking & Non-head-of-line blocking full-wire speed forwarding.
- Supports network interface Auto MDIX function for auto TX/RX swap.
- Automatic Source MAC Address Learning and Aging.
- Provides 12K Jumbo frames to improve network utilization of a large file transfers.
- Supports up to 32K MAC addresses and Up to 16Mb Packet Buffer size.
- Support surge protection 6KV on the RJ45 port to prevent damage to the switch and connected equipment.
- VLAN and IEEE802.1Q tag-base VLAN based on ports & VIDs; add/remove/modify tag.
- Supports Voice VLAN / MAC VLAN / Surveillance VLAN / Protocol VLAN and GVRP.
- Supports Broadcast / multicast / unknown unicast storm control.
- Provides IGMP snooping v1/v2/v3 function and supports MLD snooping and MVR.
- IEEE802.3ad Link Aggregation LACP.
- Supports 802.1x protocol to support CHAP, EAP mode and port/MAC based network access control.
- Supports RADIUS/TACACS+ and AAA Certificate function.
- Supports MAC Table Management.
- Supports MAC/IPv4 and IPv6 ACL security management.
- Supports IPv6 Internet Protocol, IPv6 Auto-configuration mechanism and DHCPv6 Client and other functions to facilitate the setting and management of IP addresses.
- Supports DoS (Denial of Service) Defense for enhanced network security.
- Firewall Dos supports POD, LAND, UDP Blat, TCP Blat, Null /X-Man Scan Attack, TCP SYN-FIN/SYN-RST Attack, Smurf Attack and other defense function.
- Link Layer Discovery Protocol (LLDP) and LLDP-MED.
- Supports Dual Image function, which can shorten the downtime during the switch firmware upgrade or downgrade, and supports Active firmware image, Backup firmware image security backup mechanisms.
- Supports DHCP Snooping function to prevent access by unauthorized hosts and DHCP servers and supports DHCP Option 82 provides additional security.
- Each port supports limiting the number of MAC Addresses with IP and MAC address Binding.
- Supports QoS Quality of Service, Port-based QoS bandwidth management, 802.1q priority Tag based with 8 priority Queues and 8 Weights.
- Supports bandwidth control to set control traffic limits (inflow and outflow) for each port.
- Supports Port Mirroring function.
- Supports Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP).
- Supports UDLD (Unidirectional link detection), which can monitor the link status and prevent network problems.
- Support proxy DNS server, SNTP time server network time synchronization function, it can automatically adjust the host to update the time, easy to understand the problem and restore.
- Supports Event Log, Alarm Log, Security Log, Network Log, and Protocol Log.
- Supports file backup and recovery.
- Software management service supports setting Console / Telnet / SSH / HTTP /HTTPS/SNMP.
- Supports GUI display for monitoring network data status by port, traffic analysis by port, and device CPU and Memory loading for convenient administrative network analysis and management.
- Supports web-based HTTP web management user interface and supports SNMP v1/v2c/v3.
Hardware Overview
Standards & Hardware Specifications | |
Network Standards Conformance | IEEE 802.3 10Base-T |
IEEE 802.3u 100Base-TX | |
IEEE 802.3ab 1000Base-T | |
IEEE 802.3ae SFP+ | |
IEEE 802.3x Flow Control | |
IEEE 802.1p QoS | |
IEEE 802.3az EEE | |
IEEE 802.1Q VLAN Tag | |
IEEE 802.3ad Link Aggregation | |

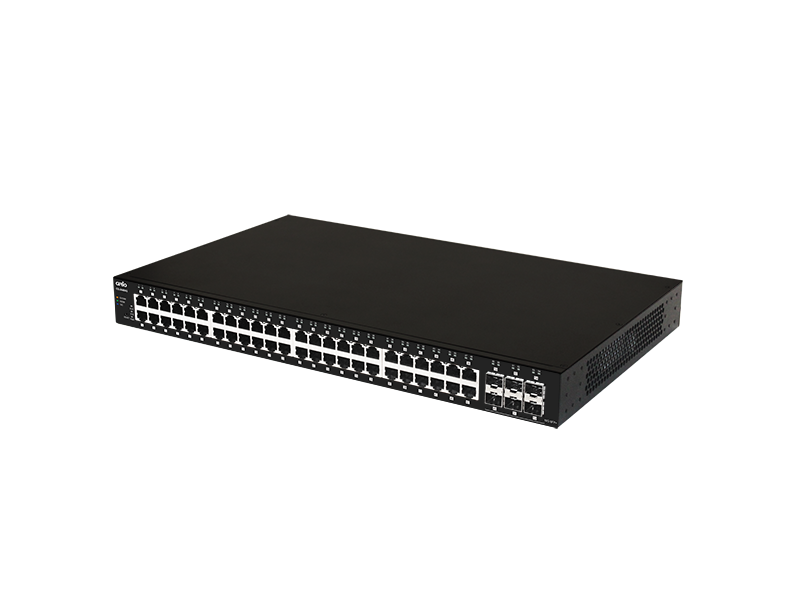

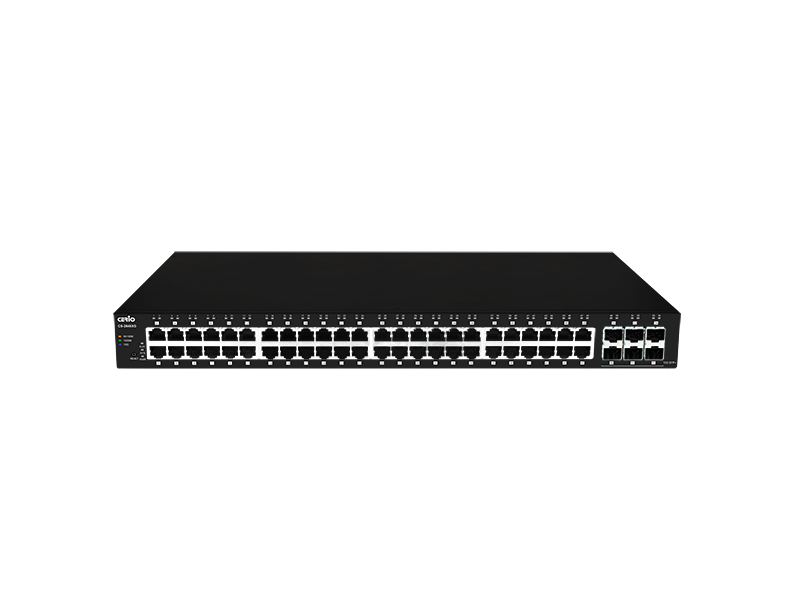

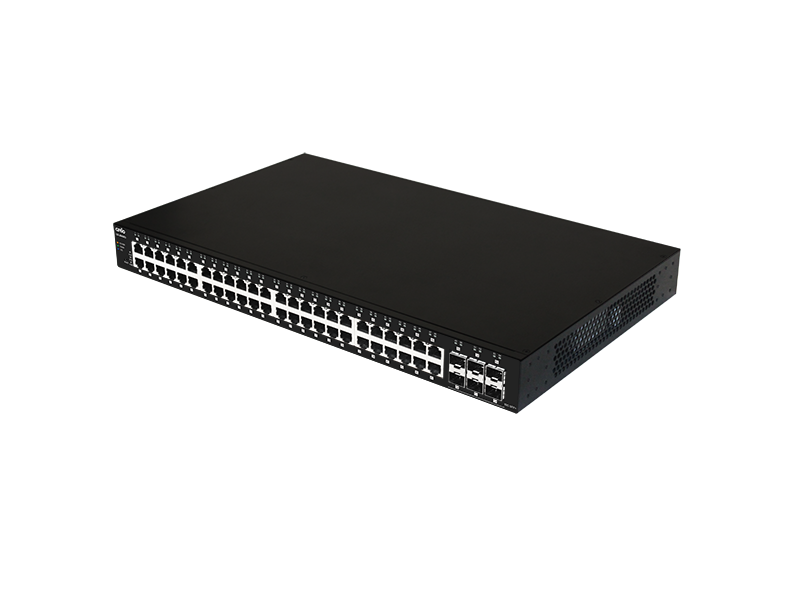

Port Configuration | 48 ports RJ-45 connectors for 10/100/1000 BASE-TX |
6 SFP+ 10Gigabit Ports | |

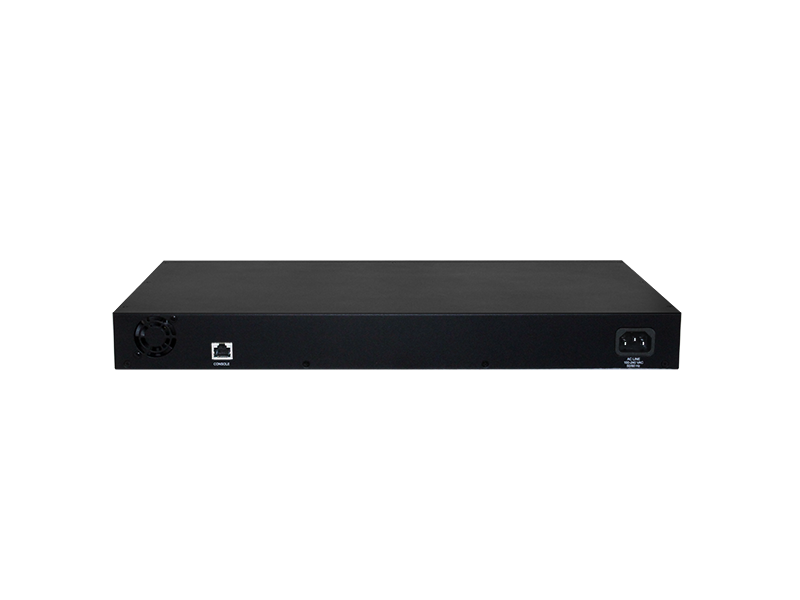

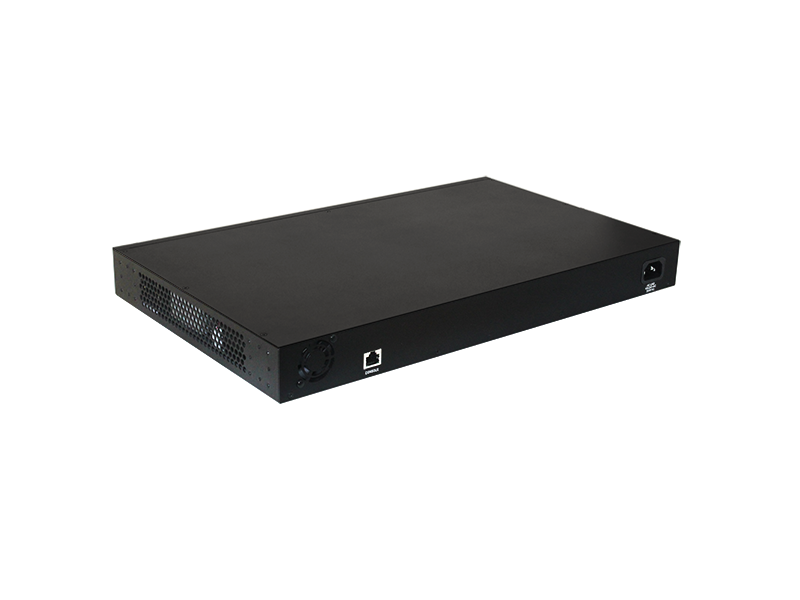

1 RJ45 Console Port | |
Hardware Reset | Reset button for returning to factory settings |
Surge Protection | Support 6kV surge protection on RJ45 port |
Media Access Protocol | CSMA / CD |
Network Media | 10BASE –T: UTP Cat. 3 or up |
100BASE-TX: UTP Cat. 5 or up | |
1000BASE-T: UTP Cat. 5 or up | |
Support 10G Fiber Type | SFP+ SR, SFP+ LR |
Transmission Method | Store and Forward |
MAC Address Table | 32K |
Built-in Buffer | 16Mb |
Jumbo Frame | 12K |
Data Transfer Rate | 10/100/1000Mbps (Half-duplex), |
20/200/2000Mbps (Full-duplex) | |
10/20Gbps (Full-duplex) | |
Auto MDI/MDIX | Yes |
LED Indicators | Per Port: Link / Activity Status x48 |
SFP+ 10G Port: SFP+ Connection Status x6 | |
Per Unit: (ALH) Overheating/Volt error Alarm x1 | |
Per Unit: (PWR) x1 | |
Per Unit: (SYS) x1 | |
Internal Bus Speed | 216Gbps |
Switch Specifications | |
Link Aggregation | IEEE802.3ad LACP Link Aggregation Supported |
Port Mirror | Supported |
Quality of Service (QoS) | Supports IEEE 802.1p QoS, Port-based QoS |
Bandwidth Control | Supported |
Spanning Tree(STP) | Supported |
Rapid Spanning Tree(RSTP) | Supported |
Multiple Spanning Tree Protocol (MSTP) | Supported |
IGMP Snooping | Supports v1, v2, v3 and MVR |
ACL | Supports IPv4 / IPv6 and MAC Management |
DHCP | Supports DHCP Snooping / DHCP Option 82 / Option82 Circuit ID |
IPv6 Management Function | Supports IPv6 Internet Protocol, IPv6 Auto-configuration mechanism and DHCPv6 Client |
Dual Image Function | Supports Dual image, Active firmware image and Backup firmware image |
SNTP Time Server | Supported |
VLAN | IEEE802.1Q Tagging VLAN , Port-Based ,Tag based VLAN |
SNMP | Supports SNMP v1/v2c/v3 |
Authentication Security Protocol | Supports RADIUS / TACACS+ and AAA |
Virtual Network Management VLAN | Supports Voice VLAN / MAC VLAN / Surveillance VLAN / Protocol VALAN and GVRP |
Port Security Management | Supports Broadcast / multicast / unknown unicast storm control |
Environmental & Mechanical Characteristics | |
Power Consumption | 26Watt |

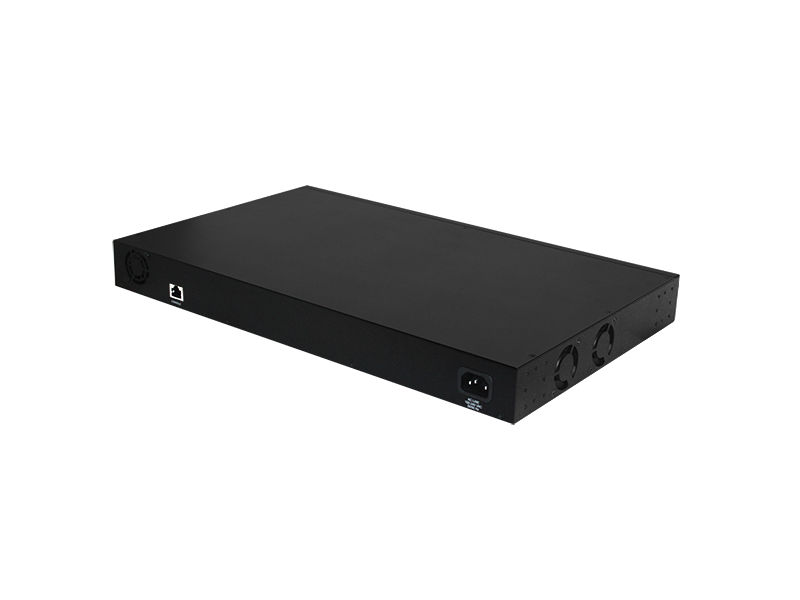

Power Type | Power cord: Internal Power supply |
Power Requirement | AC 100~240VAC, 50-60Hz Auto-sensing |
Operating Temperature | 0° to 50° C |
Storage Temperature | -40° to 70° C |
Operating Humidity | 10% to 90% non-condensing |
Storage Humidity | 10% to 90% non-condensing |
Dimension ( W x D x H ) | 441 x 270 x 44 mm |
Weight | 4Kg |
Production Location | TW or CN |
Certification | FCC, CE, RoHS-compliant |
Package Content | |
CS-2648XG Main Unit | x1 |
19” Rack Mount Brackets | x1 |
Power Cord | x1 |
Console Cable | x1 |
Warranty Card | x1 |
